FL ROUND 777 PL MP CORONA
FL ROUND 777 PL MP CORONA
FL ROUND 777 PL MP CORONA
FL ROUND 777 PL MP CORONA - 1
FL ROUND 777 PL MP CORONA - 2
FL ROUND 777 PL MP CORONA - 3

FL ROUND 777 PL MP CORONA

Part number 8777461483410
  • Suspended, round LED luminaire for indoor, comprising:
  • - Housing made from sheet steel and die-cast aluminium, powder-coated
  • - Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
  • - LED Sidelight-Technology and light orienting plastic optic for a homogenous light distribution over the entire area of the diffuser
  • - Predominantly direct light distribution
  • - VDU application suitable acc. to EN 12464-1
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - Complete with steel suspension cable (1.5 m), transparent power cable and canopy
  • - Built-in driver

Product data

ETIM Group:
EG000027
ETIM Class:
EC001743

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
7300
Luminaire lumen output
[lm]:
5700
Luminaire
wattage [W]:
45 W
Luminous efficacy [lm/W]:
127
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
WH-RAL9016 / White RAL9016 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK05 0.7J xx3
Protection class:
I
Optic:
S/B - Symmetric mainly direct
Beam
angle:
2 x 49°
Net weight [kg]:
8.5
Overall diameter [mm]:
729
Overall height [mm]:
14

Mechanical features

Shape:
Round ≥ 300 mm
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
>0.9
C10 1.5 mm²:
35
C16 2.5 mm²:
65
B10 1.5 mm²:
35
B16 2.5 mm²:
65
EEI:
A2

Installation

Application area:
Indoor
Mounting type:
Suspended
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct/Indirect
DFF - Downward Flux Fraction [%]:
95
UFF - Upward Flux Fraction [%]:
5
UGR max.:
19.0

Photometric data

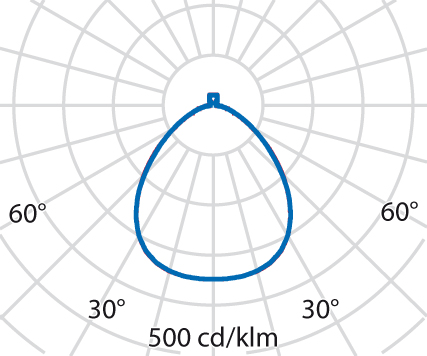

Photometric Lvk FL ROUND 777 PL MP CORONA 1

Technical drawings

Tech Design FL ROUND 777 PL MP CORONA 1++
