- High bay luminaire designed with a modular concept to adapt to continuously advancing industrial, logistics, sports, and tertiary contexts that require flexible, efficient, reliable, and future-proof solutions
- Available in 3 sizes (1M, 2M and 3M), each with 2 power steps (HE and HLO)
- Available in STANDARD and REUSE versions
- Driver box made of extruded aluminium, powder-coated in RAL 7035 colour, engineered to optimize the heat dissipation of internal electronic components
- Pre-galvanized and processed steel slider housing the driver and any optional emergency battery pack, designed for simplified maintenance
- End caps made of halogen-free technopolymer, housing cable glands with O-ring gaskets and H07RN-F cables. Secured with galvanized steel screws and anti-aging rubber sealing gaskets with resilient elastic return capability, ensuring a robust and tightly sealed product
- Sliding DIN rail made of galvanized steel for mounting LED modules
- Die-cast body made of secondary aluminum alloy with low copper content, featuring embedded internal heatsink fins for optimal heat dissipation of the LED sources
- LED board featuring a metal core PCB and high-efficacy LEDs for high luminous flux with low energy consumption
- Available in 4000 K and 5700 K, with CRI ≥80
- Available in On/Off and DALI versions
- Available in Emergency version with 3 hours of autonomy, integrated battery status indicator light and additional cable glands with O-ring gaskets and H07RN-F cables for input
- Exclusively designed PMMA lenses with high optical transmittance for maximum long-term stability and performance, even at elevated temperatures
- Galvanized steel screws securing the LED boards and lenses into the die-cast body
- White cover made of technopolymer
- White anti-aging silicone sealing gasket with resilient elastic return capacity and UV resistance providing excellent water ingress protection for the LED module and a clean appearance
- Standard tempered 4 mm transparent glass, offering high impact resistance and suitable for demanding applications such as sports halls
- Fast-mounting clips made of polished stainless steel for quick and easy intervention
- Cable cover made of technopolymer
- M20 cable glands with H07RN-F cables (3x or 5x 1.5 mm², depending on the version) for input, and M16 cable glands with H07RN-F cables (3x 1 mm²) for output
- Surge protection up to 10 kV in common mode, compliant with IEC EN 61000-4-5
- Isolation class I
- It can withstand high ambient temperatures while delivering maximum luminous output without compromising the product's lifespan

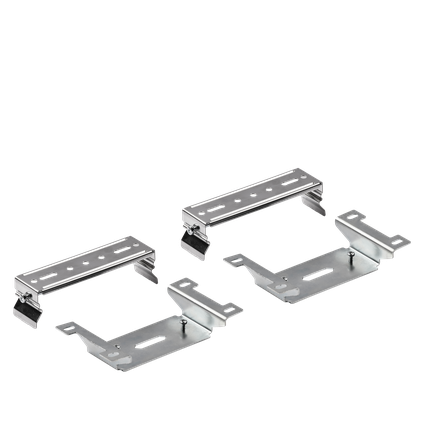

- The product comes standard with a suspension kit and can be installed in alternative configurations using the available mounting accessories, which can be ordered separately
- Additional accessories and spare parts are available
