SL730+ SL XL MP

Part number 3123745

- Sustainable, smart free-standing luminaire for office applications with future-proof technology
- Impact-resistant, impression-resistant powder coating
- Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
- Glare-free light for office applications in accordance with DIN EN 12464-1 (UGR<19 and <3000cd/m² >65°)
- Future-proof thanks to simple revisions (replaceable light engine and converter)
- Maintenance and installation-friendly design (complies with the EU Eco-Design Directive 2019/2020)
- Direct / indirect light distribution with high indirect ratio
- Direct and indirect light can be dimmed and switched separately or together (depending on version)
- Easy charging of mobile devices via integrated USB ports
- Maximum values for efficiency and service life for the allocation of subsidies and building certification (e.g. BEG subsidy, LEED, BREEAM)
- L, XL or table clamp: three versions offer flexible lighting solutions for single, double and multiple workstations
- Inclination of the light can be easily adjusted using a device on the base
- The U-shaped base enables flexible, flush positioning of the luminaire and fits exactly over the floor tank for barrier-free cable routing
- Smart versions available with swarm function, Human Centric Lighting, Bluetooth control, daylight control with motion detector and Tunable White
- Produced in Germany - with a focus on quality, short delivery routes and low environmental impact
- Presence sensor with adjustable cut-off ensures targeted light activation and prevents the luminaire from being switched on unnecessarily
- Complete with flexible power cord with plug
- Special colour versions available. Consult factory

Product data

ETIM Group:

EG000027

ETIM Class:

EC000300

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

15050

Luminaire lumen output
[lm]:

13400

Luminous efficacy [lm/W]:

149

CRI:

Colour
temperature [K]:

tw 2700-6500

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

Optic:

S/D - Symmetric mainly indirect

Beam
angle:

2 x 43°/45°

Net weight [kg]:

23.724

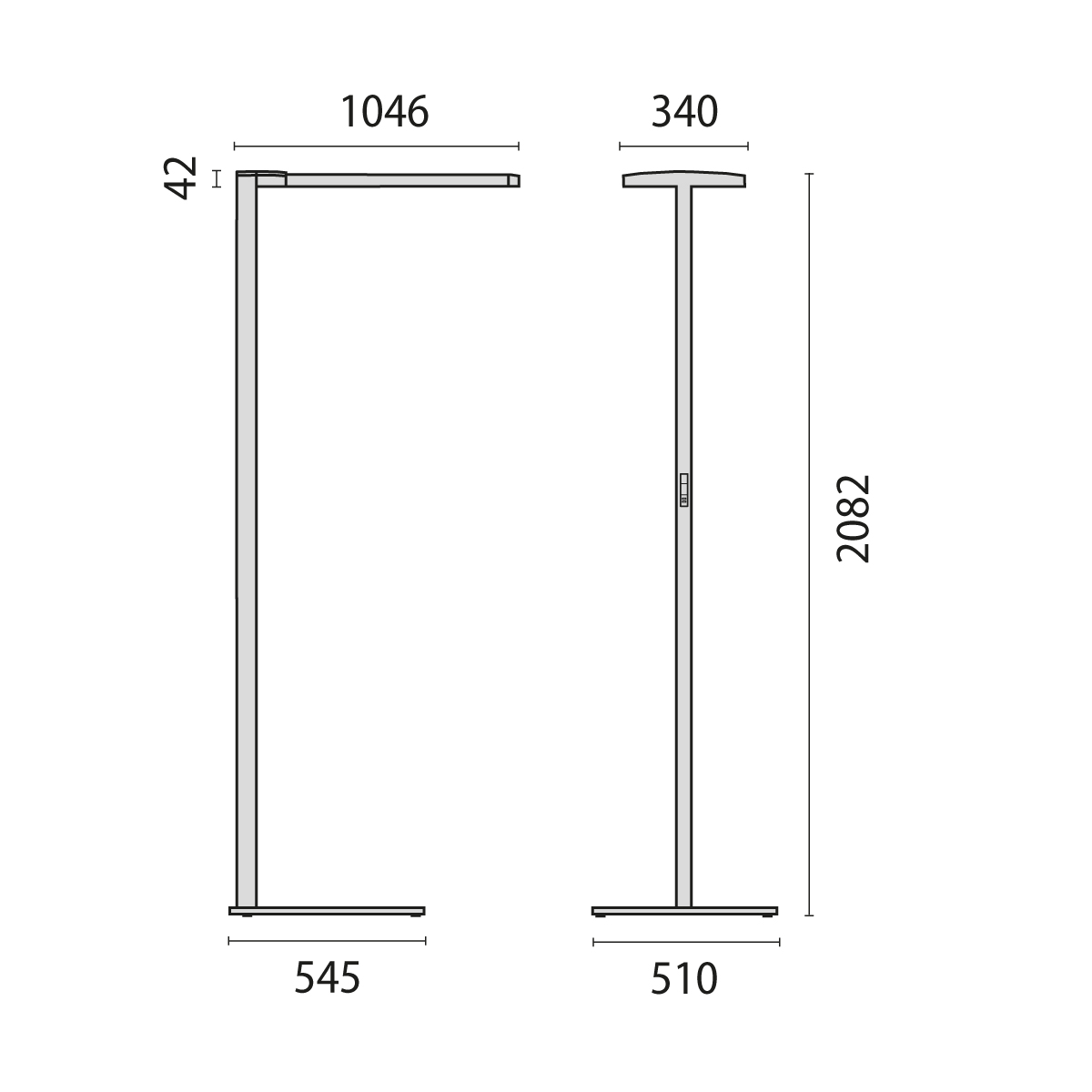

Overall length [mm]:

1046

Overall width [mm]:

510

Overall height [mm]:

2082

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

>0.9

Installation

Application area:

Indoor

Mounting type:

Free standing

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct/Indirect

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:

UGR max.:

10.0
