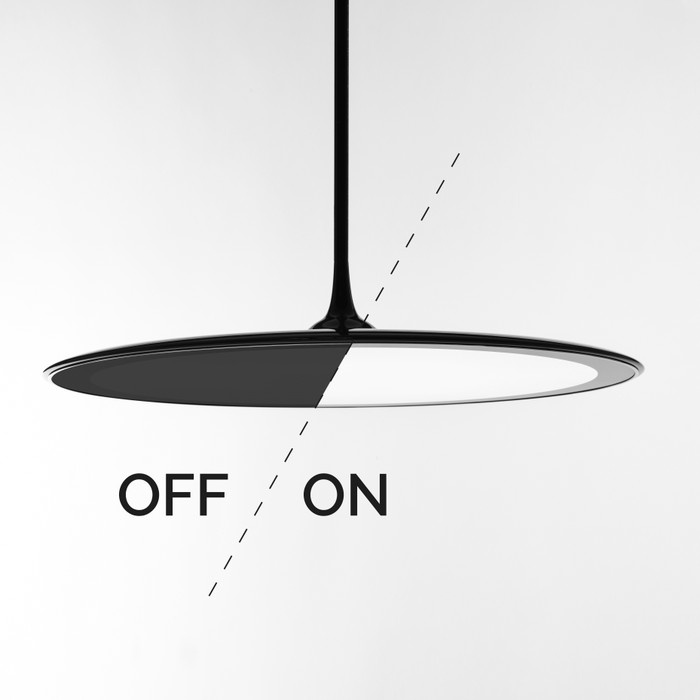

LIQUID PL M2 BLACK
LIQUID PL M2 BLACK
LIQUID PL M2 BLACK - 1
LIQUID PL M2 BLACK - 2

LIQUID PL M2 BLACK

Part number 8712211556381
  • Suspended, round LED luminaire for indoor, comprising:
  • - Die-cast aluminium luminaire head and canopy, painted
  • - Steel suspension tube, polyester powder coat
  • - Optical diffuser with integrated high transmittance light guide in black glass (BLACK)
  • - Direct light distribution
  • - LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - Special colour versions available. Consult factory
  • - Design by WALTER DE SILVA

Product data

ETIM Group:
EG000027
ETIM Class:
EC001743

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
6200
Luminaire lumen output
[lm]:
1140
Luminaire
wattage [W]:
55 W
Luminous efficacy [lm/W]:
21
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
BK-RAL9005 / Black RAL9005 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK02 0.2J xx0
Protection class:
I
Optic:
C/EW - Circular Extra-Wide
Beam
angle:
2 x 46°
Net weight [kg]:
7.5
Overall diameter [mm]:
599
Overall height [mm]:
1000

Mechanical features

Shape:
Round ≥ 300 mm
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 0/50/60Hz
Power factor / COS Φ:
0.9
Input voltage [V DC]:
176/280
Inrush current [A/μs]:
26 / 264
C10 1.5 mm²:
16
C16 2.5 mm²:
26
B10 1.5 mm²:
10
B16 2.5 mm²:
16
EEI:
A1

Installation

Application area:
Indoor
Mounting type:
Suspended
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct
DFF - Downward Flux Fraction [%]:
100
UFF - Upward Flux Fraction [%]:
0
UGR max.:
15.0

Photometric data

Photometric Lvk LIQUID PL M2 BLACK 1

Technical drawings

Tech Design LIQUID PL M2 BLACK 1++
