BLIZ ROUND 30
BLIZ ROUND 30
BLIZ ROUND 30
BLIZ ROUND 30 - 1
BLIZ ROUND 30 - 2
BLIZ ROUND 30 - 3

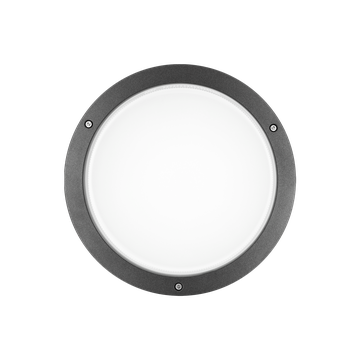

BLIZ ROUND 30

Part number 304225
  • Wall and ceiling mounted LED luminaire for indoor and outdoor, comprising:
  • - Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Pressed glass diffuser, internally coated
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Through-wiring designed
  • - Built-in driver
  • - Stainless steel locking hardware

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
4236
Luminaire lumen output
[lm]:
2178
Luminaire
wattage [W]:
30 W
Luminous efficacy [lm/W]:
73
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK08 5J xx5
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
3.636
Overall diameter [mm]:
302
Overall width [mm]:
84

Mechanical features

Shape:
Round ≥ 300 mm
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
0/50/60
Power factor / COS Φ:
>0.9
Input voltage [V DC]:
176/276
Inrush current [A/μs]:
5 / 50
C10 1.5 mm²:
52
C16 2.5 mm²:
85
B10 1.5 mm²:
31
B16 2.5 mm²:
50

Installation

Application area:
Outdoor
Mounting type:
Wall / Ceiling surface
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
30

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct

Photometric data

Photometric Lvk BLIZ ROUND 30 1

Technical drawings

Tech Design BLIZ ROUND 30 1++
