SQUARE PRO GLASS 710/3 S/W

Part number 3104803

LED floodlight for indoor and outdoor, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
- High-performance polished, oxidised, iridescence-free, aluminium reflector (Al 99.99)
- High-efficiency aluminised technoploymer reflector with protective surface treatment (C/I versions)
- Foam silicone sealing gaskets directly applied on glass without joints
- Built-in electrical connection box with aluminium cover
- Connection box including anti-ageing silicone sealing gasket
- Waterproof M25x1.5 cable gland for cables Ø 10 - Ø 16 mm
- Light beam obtained by the combination of multiple LED modules
- The 4000 K and 3000 K LED versions are CRI≥70. Consult factory for other colour temperatures (CCT) and colour renderings index (CRI)
- Glass locking fasteners powder-coated stainless-steel
- Stainless steel locking hardware
- Galvanised powder-coated steel bracket
- Integral graduated goniometer for aiming purposes
- All SQUARE PRO power consumption includes power unit losses
- Correctly match the floodlight with the control gear. Pay attention to the models and the number of connection channels: two (2CH) and three (3CH)
- ON-OFF, dimmable DALI and 1-10V control gears can be housed in IP66-rated boxes or on IP20-rated metal plates (for electrical panels). The electrical connection between control gear and floodlight must take place with a maximum cable length distance of 50 m
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM) for every driver unit/box

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

113616

Luminaire lumen output
[lm]:

99343

Luminaire
wattage [W]:

710 W

Luminous efficacy [lm/W]:

140

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-94 / Metallic grey / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK07 3J xx5

Protection class:

Optic:

S/W - Symmetric Wide

Net weight [kg]:

26.786

Overall length [mm]:

560

Overall width [mm]:

985

Overall height [mm]:

105

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

850 °C

Frontal exposed area [m²]:

0.04

Lateral exposed area [m²]:

0.08

Top exposed area [m²]:

0.42

Installation

Application area:

Outdoor

Mounting type:

Sports / High Powered Floodlighting

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

1.00

Light features

MacAdam:

Lumen maintenance:

L80B10@71000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A++

IPEA* (large areas, roundabouts):

A5+

IPEA* (cycle-pedestrian):

A4+

IPEA* (green areas):

A4+

IPEA* (historic city centers):

A7+

Photometric data

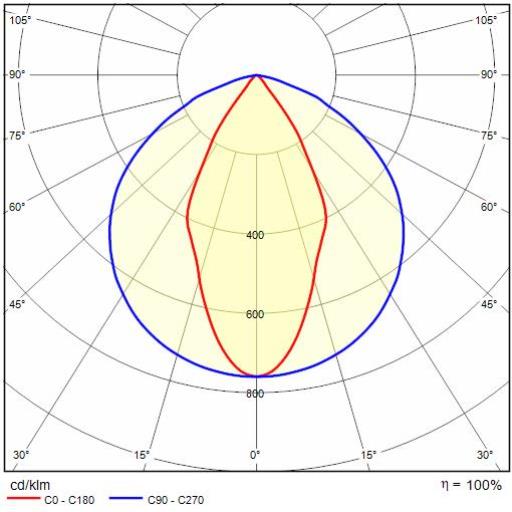

Photometric Lvk SQUARE PRO GLASS 710/3 S/W 1

Technical drawings

Tech Design SQUARE PRO GLASS 710/3 S/W 1++

Control gear

Drivers box IP66 - SQUARE PRO GLASS 710/3 - S/W - A50/W

	Part number	Colour / Finishing	Description	Downloads
	3104813		Drivers box 750 W - 1.1A - 3CH - DALI 220-240 V 50/60 Hz	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO GLASS - 3104813

Drivers unit IP20 - SQUARE PRO GLASS 710/3 - S/W - A50/W

	Part number	Colour / Finishing	Description	Downloads
	3104829		Drivers unit 750 W - 1.1A - 3CH - DALI 220-240 V 50/60 Hz	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO GLASS - 3104829

Optional accessories

SQUARE PRO GLASS A50/W

	Part number	Colour / Finishing	Description	Downloads
	3105479		Louvre SQUARE PRO GLASS A50/W	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO GLASS - 3105479
