SPILLO

Part number 303814

Series of LED landscaping outdoor bollard and pole-top luminaires, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Coated die-cast aluminium pole-top adaptor for pole Ø 60 / 76 mm
- Anti-ageing custom moulded silicone sealing gasket(s)
- Anti-tear cable gland M25x1.5 for cables Ø 9 - Ø 14 mm
- IP-rated external socket-plug fast connector (QUICK), complete with factory pre-wired cable
- Built-in driver
- Each LED can by-passed in case of failure thanks to a coupled electronic safety device (NUD)
- Stainless steel locking hardware
- The Secure Light Distribution (SLD) system guarantees uniform light distribution even in the remote case of LED failures
- Class II
- Design by ALESSANDRO PEDRETTI

Product data

ETIM Group:

EG000027

ETIM Class:

EC000062

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

6970

Luminaire lumen output
[lm]:

3998

Luminaire
wattage [W]:

44 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

IK-J-xxIP:

IK10 20J xx9

Protection class:

Optic:

CP - Cycle/Pedestrian

Net weight [kg]:

7.496

Overall diameter [mm]:

587

Overall height [mm]:

187

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Frontal exposed area [m²]:

0.03

Lateral exposed area [m²]:

0.03

Top exposed area [m²]:

0.26

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

0.95

Input voltage [V DC]:

176/280

Surge protection | Common [kV]:

4.000000

Inrush current [A/μs]:

10 / 200

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Area lighting

Min. ambient temperature [°C]:

-25

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A+

IPEA* (large areas, roundabouts):

A++

IPEA* (cycle-pedestrian):

A+

IPEA* (green areas):

A+

IPEA* (historic city centers):

A+

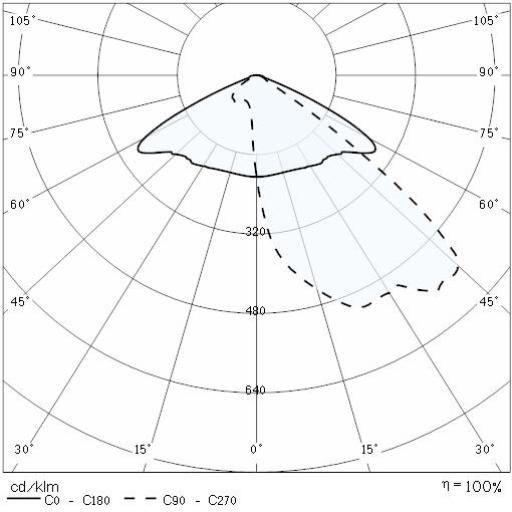

Photometric data

Technical drawings

Optional accessories

SPILLO

Part number	Description	Downloads
310403	Pole top adaptor Ø 60 mm	Add to technical datasheetRemove from technical datasheet
310405	Pole top adaptor Ø 76 mm	Add to technical datasheetRemove from technical datasheet
315023	Pole Spillo INT. 3.3 m	Add to technical datasheetRemove from technical datasheet
315024	Pole Spillo F.T. 2.8 m with flange	Add to technical datasheetRemove from technical datasheet
310415	Baseplate Spillo	Add to technical datasheetRemove from technical datasheet
