TRACCIA 500

Part number 3107554

Series of reduced depth in-ground luminaires, comprising:
- Extruded anodised aluminium housing
- EPDM sealing gasket
- Technopolymer anti-glare grid
- Toughened, glass diffuser, silk-screened on the inside
- Through-wiring designed
- IP-rated external socket-plug fast connector (QUICK), complete with factory pre-wired cable
- Built-in driver
- Stainless steel locking hardware
- Recessed box to be ordered separately
- High heat-dissipating aluminium gear tray for increased inner components lifespan
- Integral unique device for field adjustable beam orientation (0° - 30°)
- Stand-alone or seamless linear compositions (up to 80 m) mounting options
- Static ON/OFF or dimmable DALI options available
- TRIMLESS options available. Consult factory

Product data

ETIM Group:

EG000027

ETIM Class:

EC000758

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1900

Luminaire lumen output
[lm]:

1522

Luminaire
wattage [W]:

21 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

GR-11 / Anodised grey / Matt

IP degree
of protection:

IP67

Impact resistance / impact energy:

IK10 20J xx9

Protection class:

Optic:

S/M - Symmetric Medium

Beam
angle:

30°

Net weight [kg]:

4.765

Overall length [mm]:

525

Overall width [mm]:

Overall height [mm]:

106

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

850 °C

Static load [kg]:

2000

Shear load [kN]:

Resistance to torque [Nm]:

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

>0.9

Input voltage [V DC]:

176/264

Surge protection | Common [kV]:

4.000000

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Linear ingrounds

Glass temperature [°C]:

Ingrounds classification:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

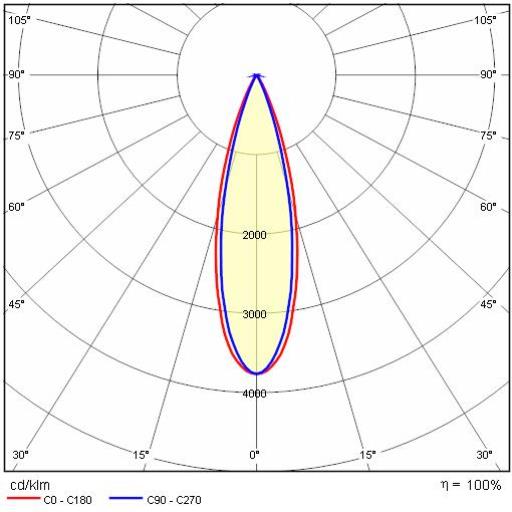

Photometric data

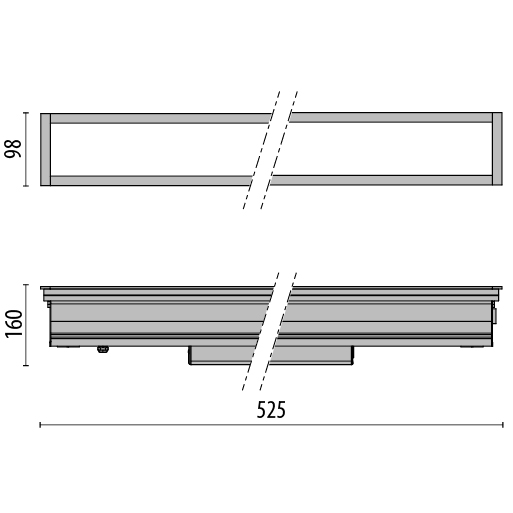

Technical drawings
