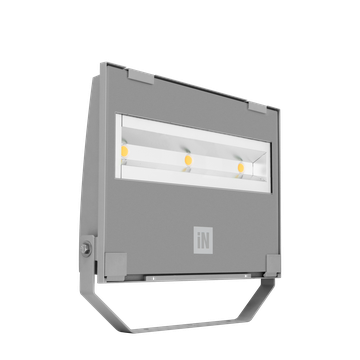

GUELL 3 S/W

Part number 3117370
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra clear, toughened, flat glass diffuser
  • - High-performance polished, oxidised, iridescence-free, aluminium reflector (Al 99.99)
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - M20x1.5 cable gland for cables Ø10–Ø14 mm
  • - High asymmetrical distributions low-glare optic options available (A50/W versions)
  • - Stainless steel locking hardware
  • - Fully integrated stainless steel aluminium spring clips
  • - Powder-coated steel tiltable bracket
  • - Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
  • - Openable and maintainable luminaire (future-proof)
  • - Consult factory for dimmable DALI versions with remote supply unit, up to a 50-metre maximum distance (A50 / W models only)
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
  • - Design by GIORGIO LODI

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
33523
Luminaire lumen output
[lm]:
31071
Luminaire
wattage [W]:
250 W
Luminous efficacy [lm/W]:
124
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK07 3J xx5
Protection class:
I
Optic:
S/W - Symmetric Wide
Net weight [kg]:
10.03
Overall length [mm]:
565
Overall width [mm]:
501
Overall height [mm]:
98

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.05
Lateral exposed area [m²]:
0.03
Top exposed area [m²]:
0.21

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.9
Surge protection | Common [kV]:
10.000000
Surge protection | Differential [kV]:
10.000000
Inrush current [A/μs]:
120 / 450
C10 1.5 mm²:
2
C16 2.5 mm²:
3
B10 1.5 mm²:
1
B16 2.5 mm²:
2

Installation

Application area:
Outdoor
Mounting type:
Floodlighting
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
45
Min. distance from lighted object [m]:
1.00

Light features

MacAdam:
3
Lumen maintenance:
L80B10@100000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):
IPEA* (road lighting):
A+
IPEA* (large areas, roundabouts):
A5+
IPEA* (cycle-pedestrian):
A++
IPEA* (green areas):
A++
IPEA* (historic city centers):
A6+

Photometric data

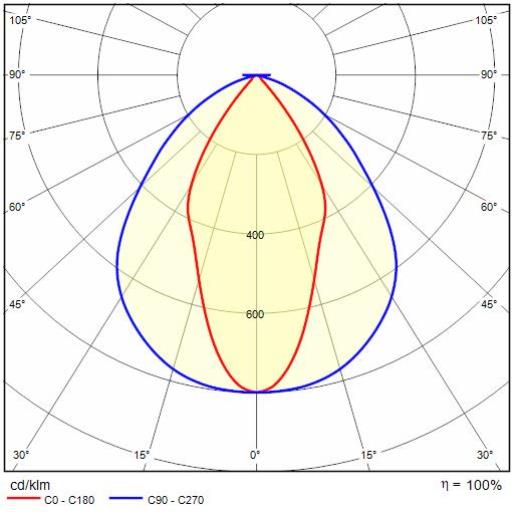

Photometric Lvk GUELL 3 S/W 1

Technical drawings

Tech Design GUELL 3 S/W 1++

Optional accessories

GUELL 3

Part number Colour /
Finishing		 Description Downloads
Protective grid
14452702
Protective grid
Downloads
Wall mount support 1000 mm
14453994
Wall mount support 1000 mm
Downloads
Single pole top support GUELL 3 for poles Ø 60-76 mm/Ø 2.36"-2.99"
14453794
Single pole top support GUELL 3 for poles Ø 60-76 mm/Ø 2.36"-2.99"
Downloads
Double pole top support GUELL 3 for poles Ø 60-76 mm/Ø 2.36"-2.99"
14453894
Double pole top support GUELL 3 for poles Ø 60-76 mm/Ø 2.36"-2.99"
Downloads
GUELL 3 strengthening bracket. Suitable for one floodlight single point fixing M10 screw in centre of the bracket
14461104
GUELL 3 strengthening bracket. Suitable for one floodlight single point fixing M10 screw in centre of the bracket
Downloads
