INSERT+ ZERO
INSERT+ ZERO
INSERT+ ZERO - 1
INSERT+ ZERO - 2

INSERT+ ZERO

Part number 304110
  • Wall recessed luminaire, for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Inner satin toughened flat glass diffuser
  • - EPDM sealing gasket
  • - Stainless steel locking hardware
  • - Recessed box (503) included
  • - The luminaire is suitable for through-wiring

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
511
Luminaire lumen output
[lm]:
125
Luminaire
wattage [W]:
4.5 W
Luminous efficacy [lm/W]:
28
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK08 5J xx5
Protection class:
I
Optic:
A29/M - Asymmetric Medium
Net weight [kg]:
0.275
Overall length [mm]:
107
Overall width [mm]:
49
Overall height [mm]:
77

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.6
Inrush current [A/μs]:
25 / 80
C10 1.5 mm²:
78
C16 2.5 mm²:
128
B10 1.5 mm²:
45
B16 2.5 mm²:
75

Installation

Application area:
Outdoor
Mounting type:
Step lighting
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
45

Light features

MacAdam:
3
Lumen maintenance:
L90B10@36000h
Distribution of light emission:
Direct

Photometric data

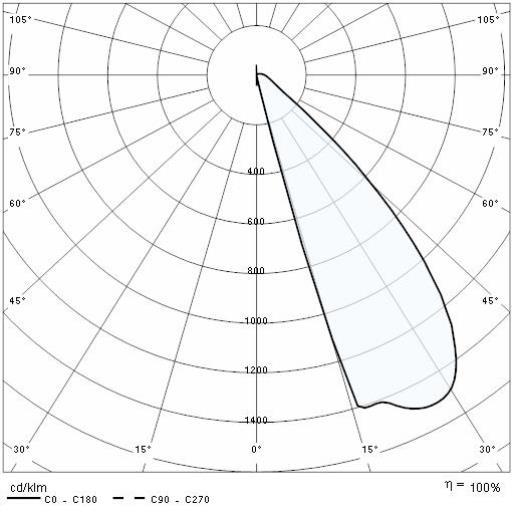

Photometric Lvk INSERT+ ZERO 1

Technical drawings

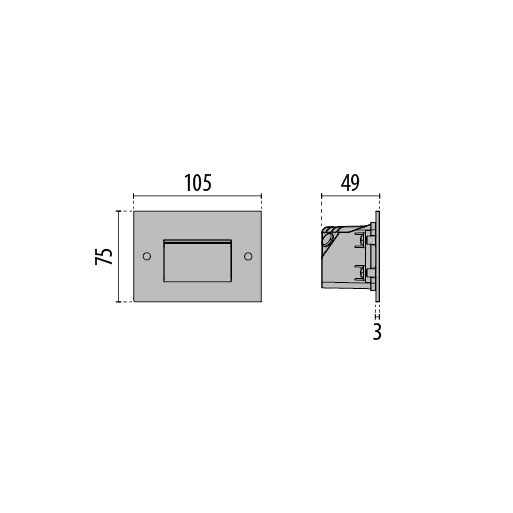

Tech Design INSERT+ ZERO 1++
