KYRO+2 SR/150

Part number 3105406

Series of LED street lighting luminaires, ,comprising:
- Die-cast aluminium housing and cover, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Polyester powder coat finish die-cast aluminium pole clamp
- Extra clear, toughened, flat glass diffuser
- High-transparency polycarbonate optics
- StReet optic options: SR/075 usually for narrow roads (0.5 ≥ L/H ≥ 0.75), SR/100 for two-lane roads (L/H = 1), SR/125 for wide streets and (L/H = 1.25), SR/150 for wide roads/parking lots (L/H = 1.5) schemes. L/H ratio (L-road width/H-pole height)
- Aluminium heat sink
- Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
- The integral switch splitter automatically disconnects the driver from mains when opened
- Anti-tear cable gland M25x1.5 for cables Ø 9 - Ø 14 mm
- Built-in driver
- Stainless steel locking hardware
- Fibreglass technopolymer components plate holder
- Toolless removable and upgradable gear tray
- Fully integrated stainless steel aluminium spring clips
- Suitable for pole installations Ø 42 - Ø 60/62 mm (KYRO+ 1 models), Ø 76 mm (KYRO+ 1-D76), and Ø 60/62 - Ø 76 mm (KYRO+ 2)
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
- The Secure Light Distribution (SLD) system guarantees uniform light distribution even in the remote case of LED failures
- UNI 10819 light pollution standards compliant (0% ULOR rating)
- Provided complete with 1 m cable H07RN-F 2 x 1.5 mm² and IP66-rated plug-socket, produced in polyamide with silver-plated brass contacts, for cables Ø 9 - Ø14 mm, for mains connection without opening the luminaire
- Automatic power reduction (RPA) options available. Consult factory
- Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
- CLO (Constant Light Output) options available. Consult factory
- Design by SILVIA PAOLA PENNACCHIO

Product data

ETIM Group:

EG000027

ETIM Class:

EC000062

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

20364

Luminaire lumen output
[lm]:

18006

Luminaire
wattage [W]:

136 W

Luminous efficacy [lm/W]:

132

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK08 7J xx5

Protection class:

Optic:

SR/150 - Street

Net weight [kg]:

11.56

Overall length [mm]:

330

Overall width [mm]:

835

Overall height [mm]:

155

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

850 °C

Lateral exposed area [m²]:

0.1

Top exposed area [m²]:

0.25

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Surge protection | Common [kV]:

8.000000

Surge protection | Differential [kV]:

10.000000

Inrush current [A/μs]:

53 / 300

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Street lighting

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.50

Light features

MacAdam:

Lumen maintenance:

L90B10@100000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*4

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A3+

IPEA* (large areas, roundabouts):

A7+

IPEA* (cycle-pedestrian):

A4+

IPEA* (green areas):

A4+

IPEA* (historic city centers):

A9+

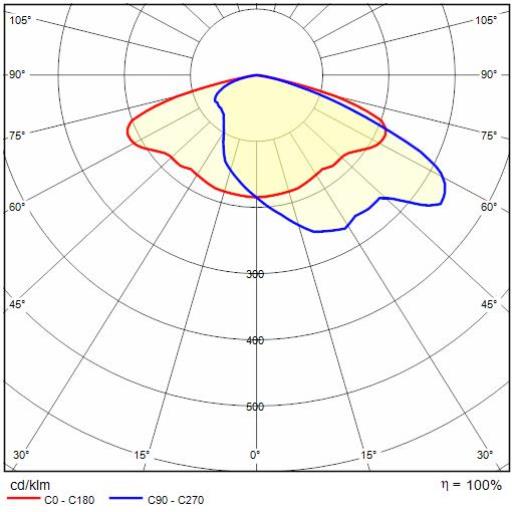

Photometric data

Technical drawings

Optional accessories

KYRO+

Part number	Description	Downloads
14077820	Kit of 10 rubber sealing gaskets for up to 2 no. Ø 8 mm cables	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KYRO+ - 14077820
3102824	1 m Wire H07RN-F 2x1,5 + connector	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KYRO+ - 3102824
14077102	Single 1200 mm extension arms, hot dipped galvanised steel, suitable for installation on Ø 60 mm pole top	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KYRO+ - 14077102
14081902	Hot dipped galvanised steel brackets suitable for installing single fittings (back to Back) on Ø80-120mm poles. Complete with fixing rods and nuts, requires poles to be drilled	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KYRO+ - 14081902
14084202	Hot dipped galvanised steel brackets suitable for installing single or twin fittings (back to Back) on Ø80-120mm poles. Complete with fixing rods and nuts, requires poles to be drilled	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KYRO+ - 14084202

KYRO+ SOLUTION / KYRO+2

	Part number	Colour / Finishing	Description	Downloads
	14077696		Wall mounting bracket 370 mm (KYRO+2), in phospho-chromate and cataphoresispre-treated steel finished polyester painted	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KYRO+ - 14077696
