WL1200 OPAL

WL1200 OPAL

WL1200 OPAL - 1

WL1200 OPAL - 2

WL1200 OPAL

Part number 3118560

LED surface-mount luminaire for indoor, comprising:
- Technopolymer housing
- Light orienting technopolymer optic for a homogenous optimised distribution over the entire area of the diffuser
- Direct light distribution
- Light colour can be selected between 3000K and 4000K, field adjustable
- Power levels can be set via a switch
- Colour tolerance according to MacAdam ≤ 3 SDCM
- IP54 for horizontal ceiling mounting - IP20 for wall mounting
- Through wiring
- Built-in driver

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D
Technical drawing .jpg

Photometric data
Polar Diagram .jpg
Photometric file .ies
Photometric file .ldt
RELUX .rolf
DIALUX .uld
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

4700/5850

Luminaire lumen output
[lm]:

3770/4680

Luminaire
wattage [W]:

28/37 W

Luminous efficacy [lm/W]:

135

CRI:

80

Colour
temperature [K]:

3000/4000

Colour /
Finishing:

WH-87 / White / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK10 20J xx9

Protection class:

II

Optic:

S/B - Symmetric mainly direct

Beam
angle:

2 x 62°/58°

Net weight [kg]:

2.4

Overall length [mm]:

1200

Overall width [mm]:

130

Overall height [mm]:

55

Mechanical features

Shape:

Rectangular

Housing material:

Plastic

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

0.9

Inrush current [A/μs]:

4 / 32

C10 1.5 mm²:

58

C16 2.5 mm²:

92

B10 1.5 mm²:

58

B16 2.5 mm²:

92

Installation

Application area:

Indoor

Mounting type:

Wall / Ceiling surface

Min. ambient temperature [°C]:

10

Max. ambient temperature [°C]:

40

Light features

MacAdam:

3

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct/Indirect

DFF - Downward Flux Fraction [%]:

93

UFF - Upward Flux Fraction [%]:

7

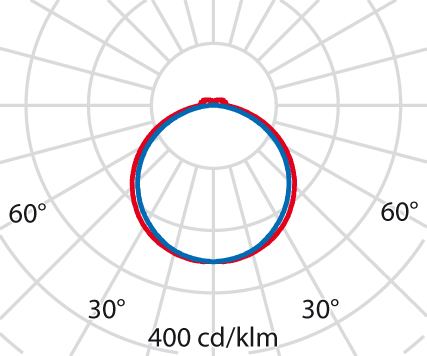

Photometric data

Photometric Lvk WL1200 OPAL 1

Photometric Lvk WL1200 OPAL 2

Photometric Lvk WL1200 OPAL 3

Photometric Lvk WL1200 OPAL 4

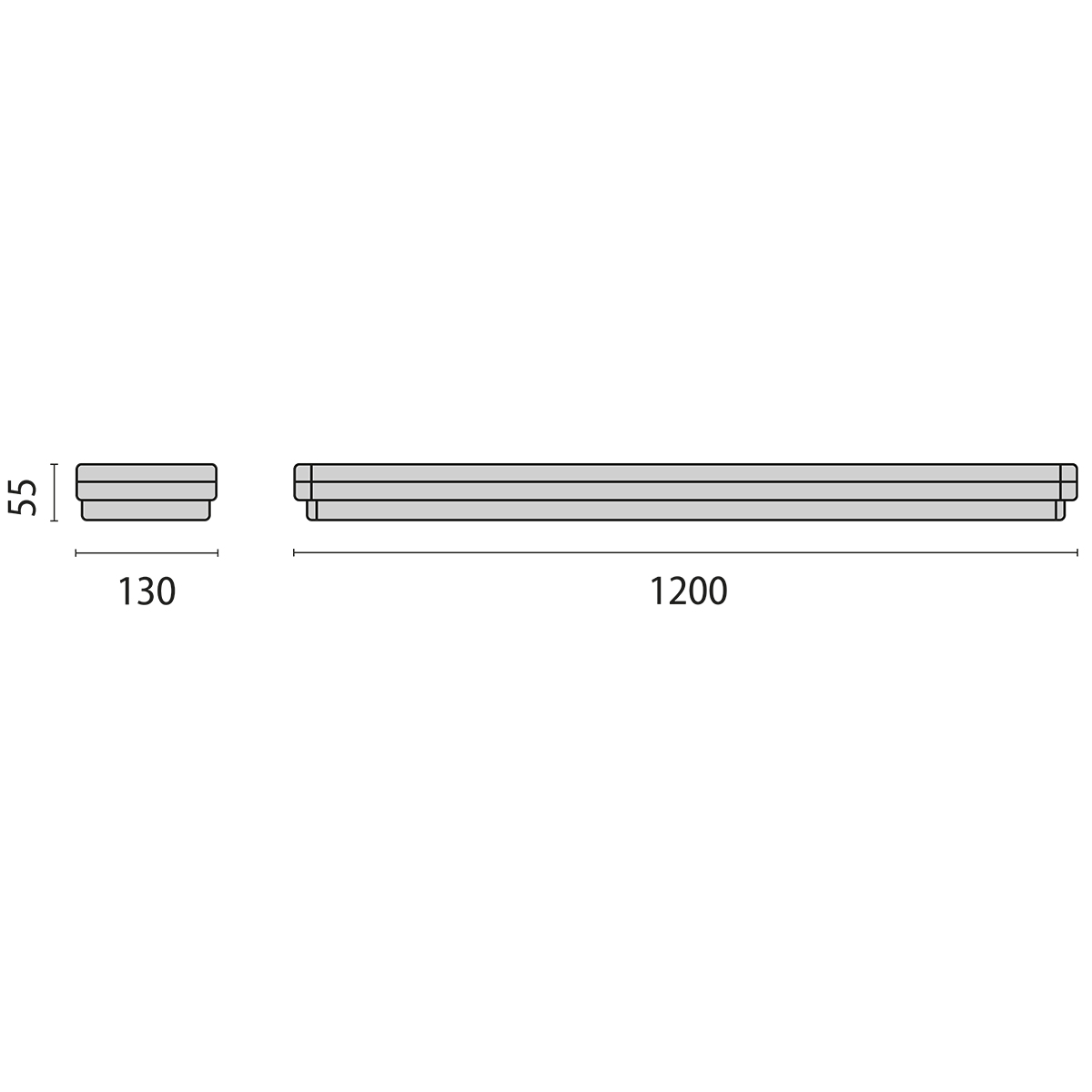

Technical drawings

Tech Design WL1200 OPAL 1++
