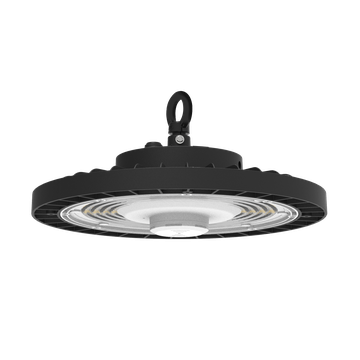

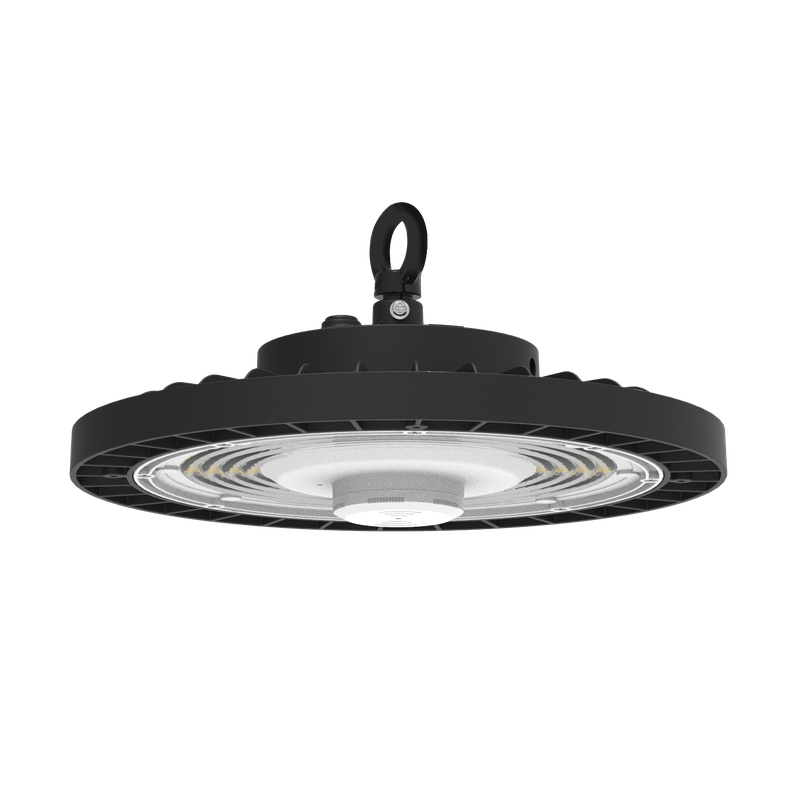

A+ MULTIPOWER C/EW

Part number 3119399

Suspended LED luminaire for indoor and outdoor industrial applications, comprising:
- Die-cast aluminium housing and trim polyester powder coat finish, coat finish prior chemical conversion surface treatment
- UV and heat stabilised, technopolymer diffuser with integral custom moulded optics
- Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
- 4000K multi-chip LED board
- Stainless steel locking hardware
- Suspension hook in painted aluminium with safety screw
- Complete with cable H05RN-F
- Built-in driver
Options:
- Painted steel bracket
- Infrared remote control for sensor module

Product data

ETIM Group:

EG000027

ETIM Class:

EC001716

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

17430/21480/29750/38140

Luminaire lumen output
[lm]:

15191/17362/24724/30373

Luminaire
wattage [W]:

85/100/150/200 W

Luminous efficacy [lm/W]:

179

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

BK-RAL9005 / Black RAL9005 / Textured

IP degree
of protection:

IP65

IK-J-xxIP:

IK08 5J xx5

Protection class:

Optic:

C/EW - Circular Extra-Wide

Net weight [kg]:

3.14

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Transparent plastic

Glow wire test [°C]:

960 °C

Electrical features

Voltage type:

Input voltage [V AC]:

90/305

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.95

Surge protection | Common [kV]:

10.000000

Surge protection | Differential [kV]:

6.000000

Inrush current [A/μs]:

80 / 300

C16 2.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Hi / low-bay

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@100000h

Distribution of light emission:

Direct

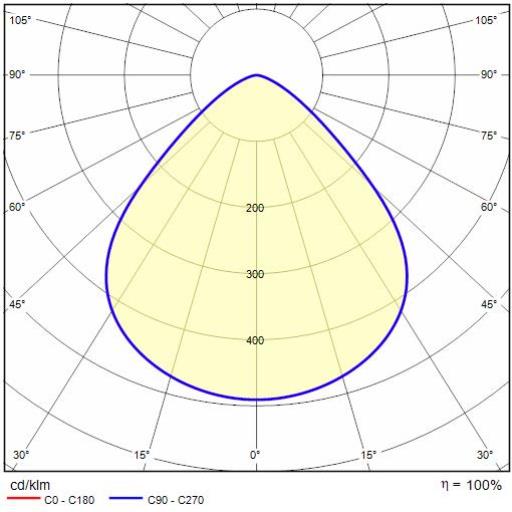

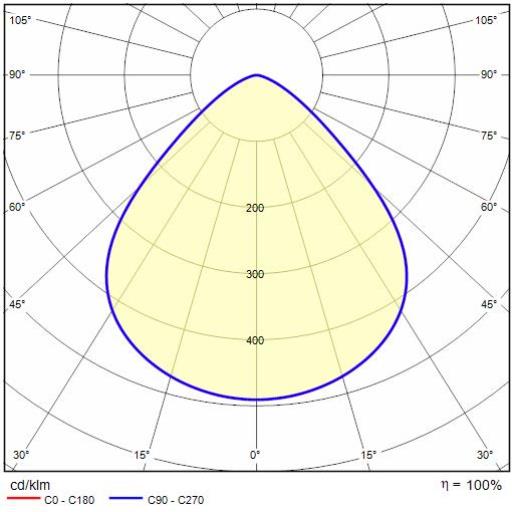

Photometric data

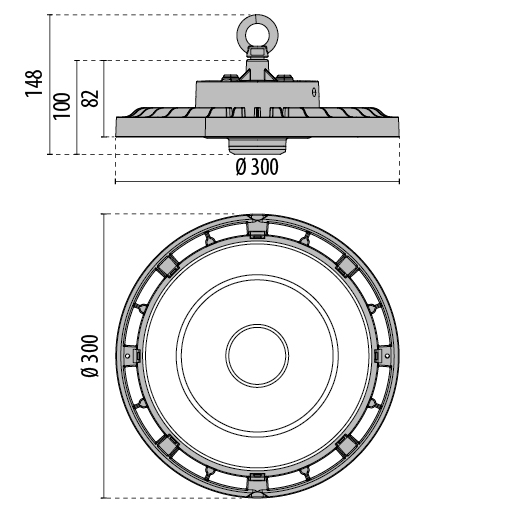

Technical drawings

Optional accessories

A+ MULTIPOWER

Part number	Description	Downloads
3124453	Polycarbonate diffuser A+ MULTIPOWER	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3124453
3119400	Driver DALI	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3119400
3119401	Microwave motion sensor	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3119401
3119402	Remote control	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3119402
3119403	Fixing bracket A+ MULTIPOWER	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3119403

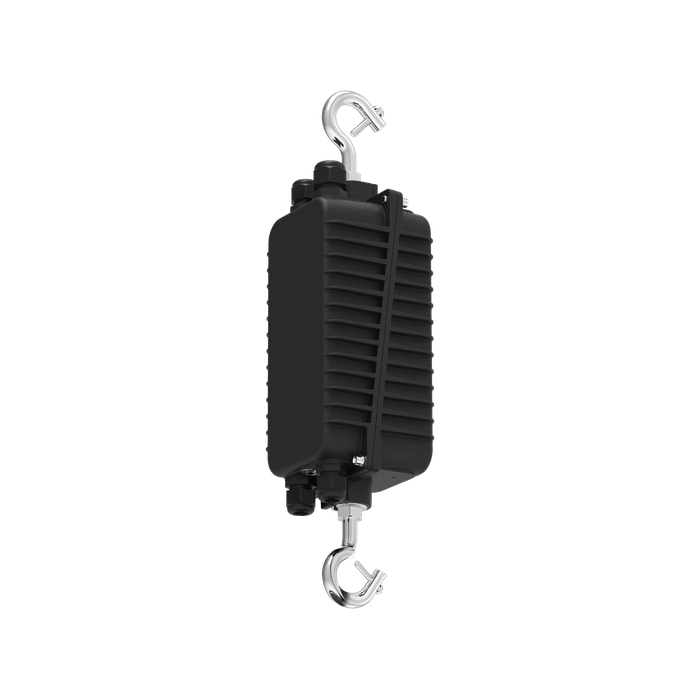

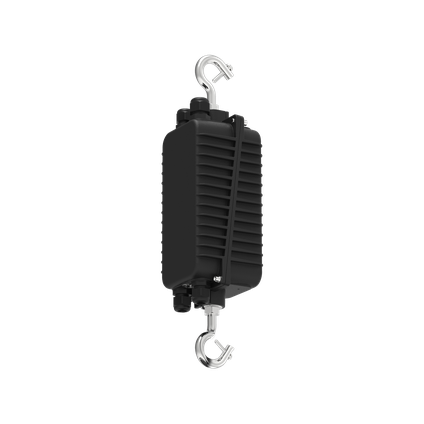

3119404	Kit EM3P	Add to technical datasheetRemove from technical datasheet Downloads Documentation: A+ - 3119404
