AS615 S/EW
AS615 S/EW

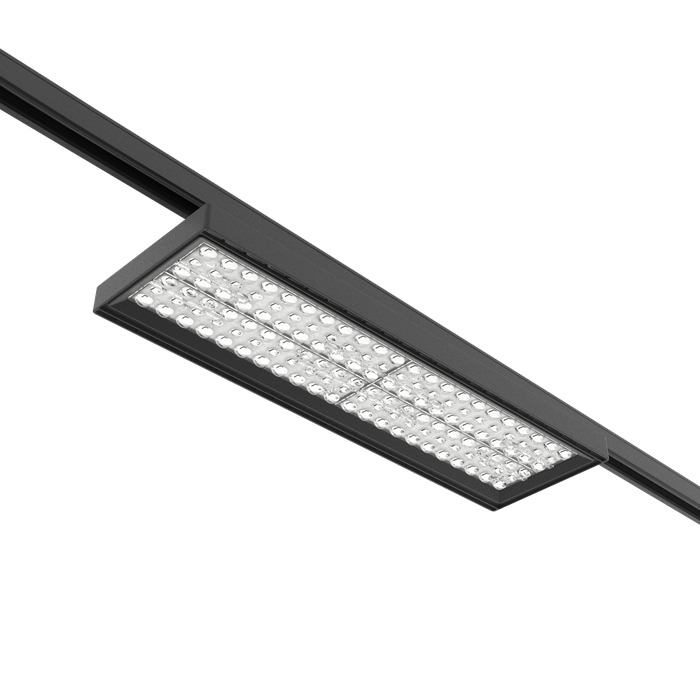

AS615 S/EW - 1

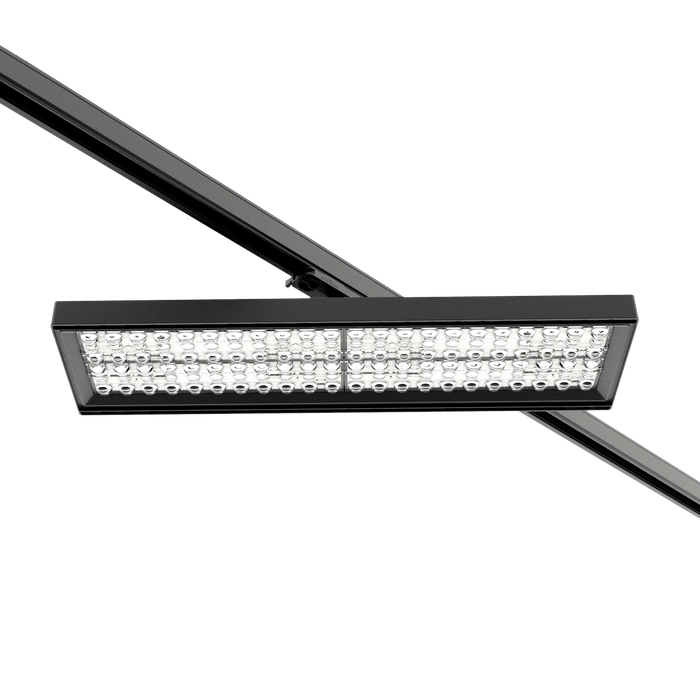

AS615 S/EW - 2

AS615 S/EW

Part number 3101721
  • Linear LED track light for indoors, comprising:
  • - Die-cast aluminium housing and cover, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - High-transparency polycarbonate optics
  • - Symmetrical optics (S/EW - S/W) and double asymmetrical optics (2A/M)
  • - Luminaire compatible with OTR TRACKS RAILS range and accessories
  • - The luminaire is suitable for installation on standard tracks such as EUROSTANDARD PLUS®
  • - Static ON/OFF or dimmable DALI options available
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
11975
Luminaire lumen output
[lm]:
8981
Luminaire
wattage [W]:
68 W
Luminous efficacy [lm/W]:
132
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
BK-81 / Black / Textured
IP degree
of protection:
IP20
IK-J-xxIP:
IK04 0.5J xx3
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
3.508
Overall length [mm]:
620
Overall width [mm]:
185
Overall height [mm]:
99

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
0/50/60
Power factor / COS Φ:
>0.9
Input voltage [V DC]:
168/250
Surge protection | Common [kV]:
4.000000
Inrush current [A/μs]:
9 / 65
C10 1.5 mm²:
27
C16 2.5 mm²:
44
B10 1.5 mm²:
16
B16 2.5 mm²:
26

Installation

Application area:
Indoor
Mounting type:
Track lights
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
45
Min. distance from lighted object [m]:
0.50

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct

Photometric data

Photometric Lvk AS615 S/EW 1

Technical drawings

Tech Design AS615 S/EW 1++
