EB433 LED SPOT REFLECTOR

Part number 8433154193314

Recessed LED luminaire for indoor, comprising:
- Die-cast aluminium spotlight body and ring, powder-coated
- Reflector can be swivelled horizontally inwards and outwards thanks to the unique swivel mechanism
- Adjustable about 60° (from -15° up to 45°, rotatable about 355°
- High-brilliance spherical faceted reflector for maximum performance and neutral colour rendering index
- Reflector in Spot design
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Quick and toolless installation
- Built-in driver
- Anchor springs
- Clear safety glass

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D
Technical drawing .jpg

Photometric data
Photometric file .ldt
Polar Diagram .jpg
Photometric file .ies
RELUX .rolf
DIALUX .uld
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2580

Luminaire lumen output
[lm]:

1960

Luminaire
wattage [W]:

20 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-RAL9010 / White RAL9010 / Textured

IP degree
of protection:

IP20

IK-J-xxIP:

IK02 0.2J xx0

Protection class:

Optic:

C/I - Circular Intensive

Beam
angle:

2 x 8°

Net weight [kg]:

0.509

Overall diameter [mm]:

138

Overall height [mm]:

111

Cut-out diameter [mm]:

Ø 125

Mechanical features

Shape:

Round ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Transparent glass

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.9

C10 1.5 mm²:

C16 2.5 mm²:

128

B10 1.5 mm²:

B16 2.5 mm²:

EEI:

Installation

Application area:

Indoor

Mounting type:

Recessed spotlights

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.10

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

DFF - Downward Flux Fraction [%]:

100

UFF - Upward Flux Fraction [%]:

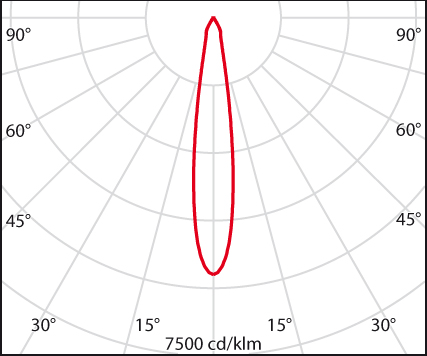

Photometric data

Photometric Lvk EB433 LED SPOT REFLECTOR 1

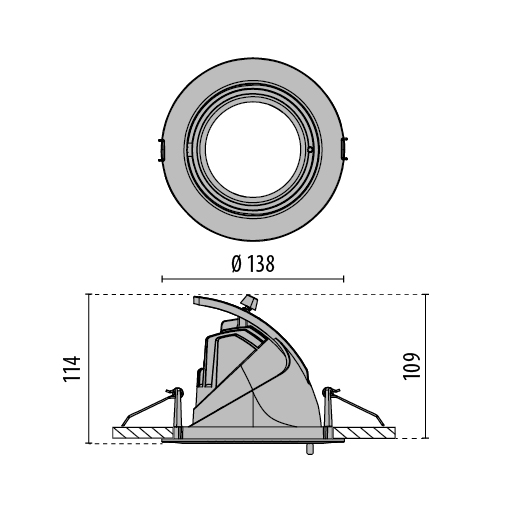

Technical drawings

Tech Design EB433 LED SPOT REFLECTOR 1++

Optional accessories

EB433 + EB434

Part number	Description	Downloads
8433961	Food glass filter for meat products	Add to technical datasheetRemove from technical datasheet
8433962	Food glass filter for bakery products	Add to technical datasheetRemove from technical datasheet
8433963	Food glass filters for fruits and cheese	Add to technical datasheetRemove from technical datasheet
8433964	Food glass filter for vegetables	Add to technical datasheetRemove from technical datasheet
8433965	Food glass filter for fish products	Add to technical datasheetRemove from technical datasheet
8414900	Frosted safety glass pane	Add to technical datasheetRemove from technical datasheet
