- Dip switch for LED CCT control at 3000K or 4000K, field adjustable
- EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
- Hyper-frequency (HF) sensor operating at 5.8 Ghz+/- 75 Mhz
- The DLS+DETEK versions are supplied with an electronic device complete with a High Frequency sensor and a daylight sensor (DLS). This is programmed to switch the device on automatically when natural light is low, ensuring constant secure lighting at 30% of the luminous flow and reaching 100% of the flow when any presence is detected
- The luminous flux data shown refer to the maximum power operating level
Product data
ETIM Group:
EG000027
ETIM Class:
EC002892
General information
Lampholder:
LED
Light source:
LED
Lightsource lumen output [lm]:
2534
Luminaire lumen output [lm]:
1695
Luminaire wattage [W]:
17 W
Luminous efficacy [lm/W]:
100
CRI:
80
Colour temperature [K]:
3000/4000
Colour / Finishing:
WH-87 / White / Matt
IP degree of protection:
IP65
IK-J-xxIP:
IK10 20J xx9
Protection class:
II
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
1.004
Overall diameter [mm]:
360
Overall width [mm]:
110
Mechanical features
Shape:
Round ≥ 300 mm
Housing material:
Plastic
Diffuser material:
Opal plastic
Glow wire test [°C]:
650 °C
Electrical features
Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
10 / 43
C10 1.5 mm²:
100
C16 2.5 mm²:
166
B10 1.5 mm²:
100
B16 2.5 mm²:
166
Installation
Application area:
Outdoor
Mounting type:
Bulkheads
Min. ambient temperature [°C]:
-10
Max. ambient temperature [°C]:
40
Light features
MacAdam:
3
Lumen maintenance:
L70B10@64000h
Distribution of light emission:
Direct

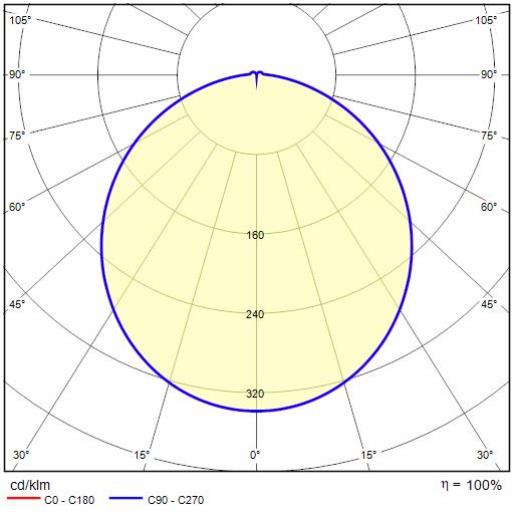

Photometric data

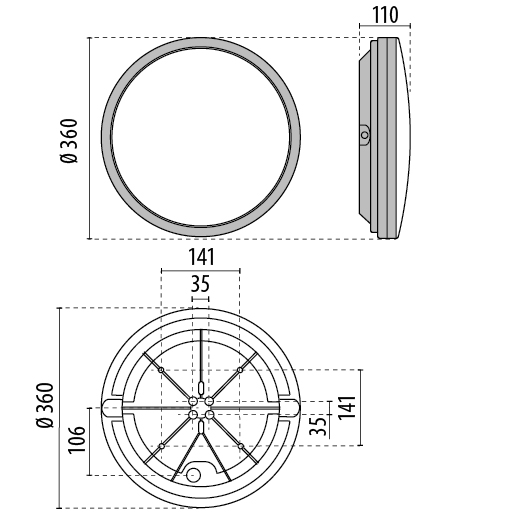

Technical drawings
