GUELL 1 C/I
GUELL 1 C/I
GUELL 1 C/I
GUELL 1 C/I - 1
GUELL 1 C/I - 2
GUELL 1 C/I - 3

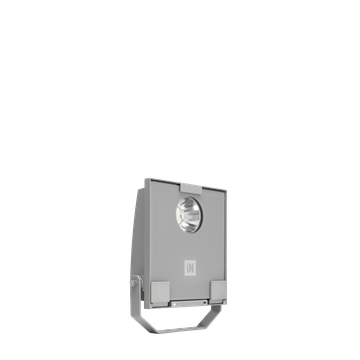

GUELL 1 C/I

Part number 3115044
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra clear, toughened, flat glass diffuser
  • - High-performance polished, oxidised, iridescence-free, aluminium reflector (Al 99.99)
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Cable gland M20x1.5 for cables Ø 10- Ø 14 mm
  • - Stainless steel locking hardware
  • - Fully integrated stainless steel aluminium spring clips
  • - Powder-coated steel tiltable bracket
  • - Openable and maintainable luminaire (future-proof)
  • - Dimmable ballast available. Consult factory
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
  • - Design by GIORGIO LODI

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
5558
Luminaire lumen output
[lm]:
5335
Luminaire
wattage [W]:
39 W
Luminous efficacy [lm/W]:
137
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP66
IK-J-xxIP:
IK07 3J xx5
Protection class:
I
Optic:
C/I - Circular Intensive
Net weight [kg]:
2.485
Overall length [mm]:
265
Overall width [mm]:
319
Overall height [mm]:
85

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.02
Lateral exposed area [m²]:
0.02
Top exposed area [m²]:
0.06

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.9
Inrush current [A/μs]:
20 / 400
C10 1.5 mm²:
15
C16 2.5 mm²:
25
B10 1.5 mm²:
9
B16 2.5 mm²:
15

Installation

Application area:
Outdoor
Mounting type:
Floodlighting
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
40
Min. distance from lighted object [m]:
0.10

Light features

MacAdam:
3
Lumen maintenance:
L90B20@120000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):
IPEA* (road lighting):
A7+
IPEA* (large areas, roundabouts):
A8+
IPEA* (cycle-pedestrian):
A7+
IPEA* (green areas):
A7+
IPEA* (historic city centers):
A11+

Photometric data

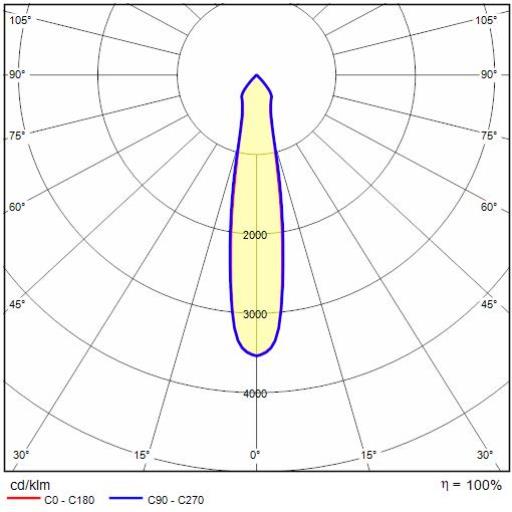

Photometric Lvk GUELL 1 C/I 1

Technical drawings

Tech Design GUELL 1 C/I 1++

Optional accessories

GUELL 1

Part number Colour /
Finishing		 Description Downloads
Protective grid GUELL 1
14172902
Protective grid GUELL 1
Downloads
Connection box IP 66
14174220
Connection box IP 66
Downloads
Wall support 500 mm/19.69" GUELL 1/2
14173394
Wall support 500 mm/19.69" GUELL 1/2
Downloads
Wall support 1000 mm/39.37" GUELL 1/2
14173494
Wall support 1000 mm/39.37" GUELL 1/2
Downloads
Single pole top support GUELL 1
14453194
Single pole top support GUELL 1
Downloads
Double pole top support GUELL 1
14453294
Double pole top support GUELL 1
Downloads

GUELL 1 C/I

Part number Colour /
Finishing		 Description Downloads

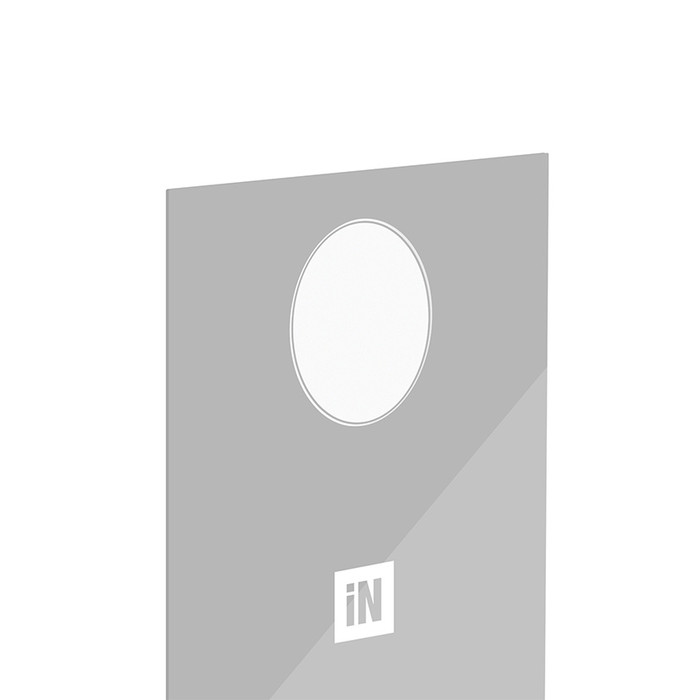

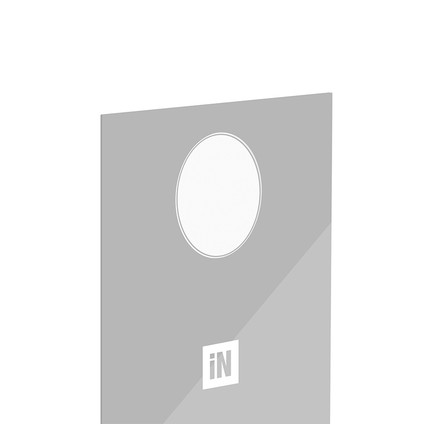

GUELL 1 C/I frosted glass
14476594
GUELL 1 C/I frosted glass
Downloads
