Name: GUELL 1 36 A40/W 840 GR94
Brand: Performance in Lighting
SKU: 3115064

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

6074

Luminaire lumen output
[lm]:

5112

Luminaire
wattage [W]:

36 W

Luminous efficacy [lm/W]:

142

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-94 / Metallic grey / Textured

IP degree
of protection:

IP66

IK-J-xxIP:

IK07 3J xx5

Protection class:

Optic:

A40/W - Asymmetric Wide

Net weight [kg]:

2.472

Overall length [mm]:

265

Overall width [mm]:

319

Overall height [mm]:

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

650 °C

Frontal exposed area [m²]:

0.02

Lateral exposed area [m²]:

0.02

Top exposed area [m²]:

0.06

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.9

Inrush current [A/μs]:

20 / 400

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Floodlighting

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.10

Light features

MacAdam:

Lumen maintenance:

L90B20@80000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A8+

IPEA* (large areas, roundabouts):

A9+

IPEA* (cycle-pedestrian):

A7+

IPEA* (green areas):

A7+

IPEA* (historic city centers):

A12+

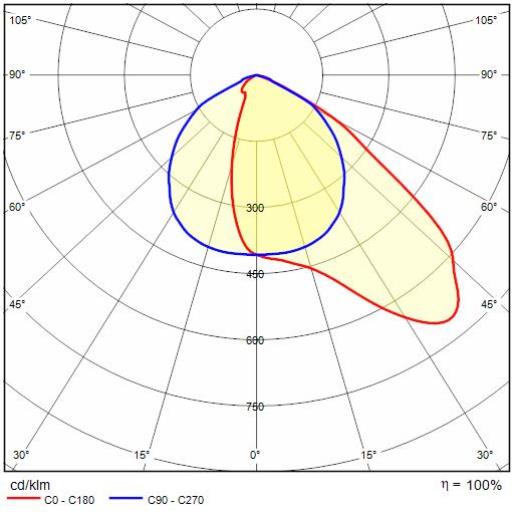

Photometric data

Technical drawings

Optional accessories

GUELL 1

Part number	Description	Downloads
14172902	Protective grid GUELL 1	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14172902
14174220	Connection box IP 66	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14174220
14173394	Wall support 500 mm/19.69" GUELL 1/2	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14173394
14173494	Wall support 1000 mm/39.37" GUELL 1/2	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14173494
14453194	Single pole top support GUELL 1	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14453194
14453294	Double pole top support GUELL 1	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14453294

GUELL 1 S/W - GUELL 1 A/W

	Part number	Colour / Finishing	Description	Downloads
	14173294		Soft glass GUELL 1	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14173294

GUELL 1 A/W

	Part number	Colour / Finishing	Description	Downloads
	14173120		Louvre GUELL 1 Asymmetrical	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 1 - 14173120
