Products: INSERT+ 1/2
INSERT+ 1 (304118)
INSERT+ 1
Part number 304118
Wall recessed luminaire, for indoor and outdoor, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Inner satin toughened flat glass diffuser
- EPDM sealing gasket
- IP-rated external socket-plug fast connector (QUICK), complete with factory pre-wired cable
- Electrical connector for cables Ø 7 - Ø 12 mm
- Stainless steel locking hardware
- Recessed box to be ordered separately
- The recessed box removable cover features two integral spirit levels for installation ease
Product data
ETIM Group:
EG000027
ETIM Class:
EC002892
General information
Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
825
Luminaire lumen output
[lm]:
250
Luminaire
wattage [W]:
6 W
Luminous efficacy [lm/W]:
42
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP65
IK-J-xxIP:
IK07 2J xx5
Protection class:
I
Optic:
A37/M - Asymmetric Medium
Net weight [kg]:
0.461
Overall length [mm]:
224
Overall width [mm]:
64
Overall height [mm]:
55
Mechanical features
Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Electrical features
Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
0/50/60
Power factor / COS Φ:
0.6
Input voltage [V DC]:
176/264
Inrush current [A/μs]:
20 / 170
C10 1.5 mm²:
52
C16 2.5 mm²:
85
B10 1.5 mm²:
31
B16 2.5 mm²:
50
Installation
Application area:
Outdoor
Mounting type:
Step lighting
Min. ambient temperature [°C]:
-10
Max. ambient temperature [°C]:
35
Light features
MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct
UGR max.:
0.0

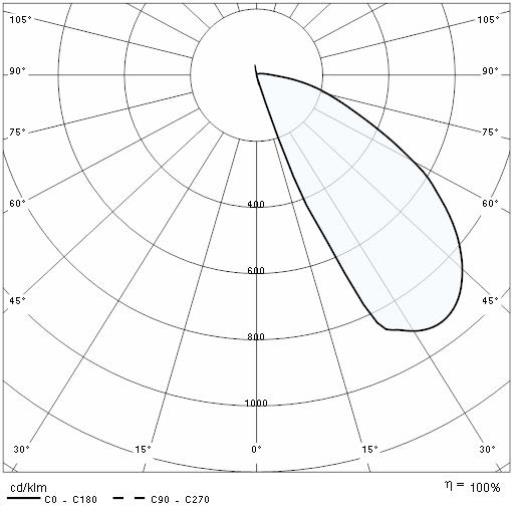

Photometric data

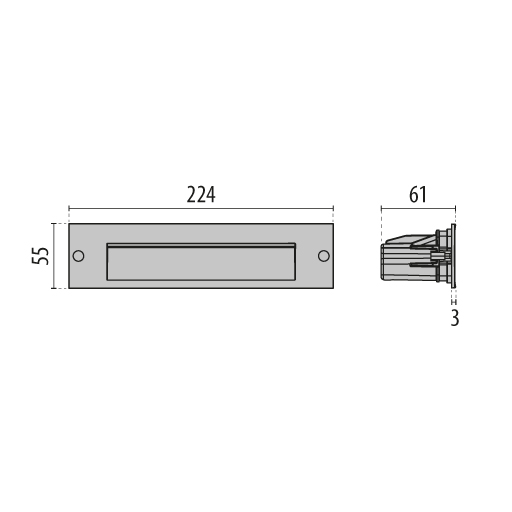

Technical drawings
Mandatory accessories
INSERT+ 1
Part number
Colour /
Finishing
Description
Downloads
310475
Recessed box INSERT+ 1
Add to technical datasheet
Remove from technical datasheet
Downloads
Documentation: INSERT+ 1/2 - 310475
Optional accessories
INSERT+ 1
Part number
Colour /
Finishing
Description
Downloads
310478
Adaptor INSERT+ 1 (retrofit kit Insert 1)
Add to technical datasheet
Remove from technical datasheet
Downloads
Documentation: INSERT+ 1/2 - 310478
