MIMIK 10 FLAT M

Part number 304823

Wall-mounted LED luminaire, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Anti-ageing custom moulded silicone sealing gasket(s)
- Built-in driver
- Stainless steel locking hardware
- Single (M) and dual (B) emission versions available
- The MIMIK versions are available with asymmetric (CP) or circular (C/I) optic options. In the dual emission versions (B), the two different beam types are combined.
- Optimised asymmetric distribution for wide spacing and lighting-class levels matching (CP options)
- Openable and maintainable luminaire (future-proof)

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

650

Luminaire lumen output
[lm]:

465

Luminaire
wattage [W]:

5 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

IK-J-xxIP:

IK06 1J xx3

Protection class:

Optic:

A/W - Asymmetric Wide

Net weight [kg]:

0.681

Overall length [mm]:

126

Overall width [mm]:

Overall height [mm]:

126

Mechanical features

Shape:

Square ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 25

C10 1.5 mm²:

C16 2.5 mm²:

103

B10 1.5 mm²:

B16 2.5 mm²:

103

Installation

Application area:

Outdoor

Mounting type:

Wall surface

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Zero light pollution (ULR = 0%):

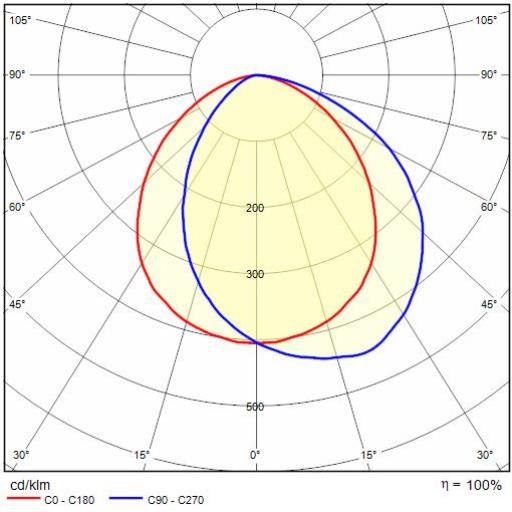

Photometric data

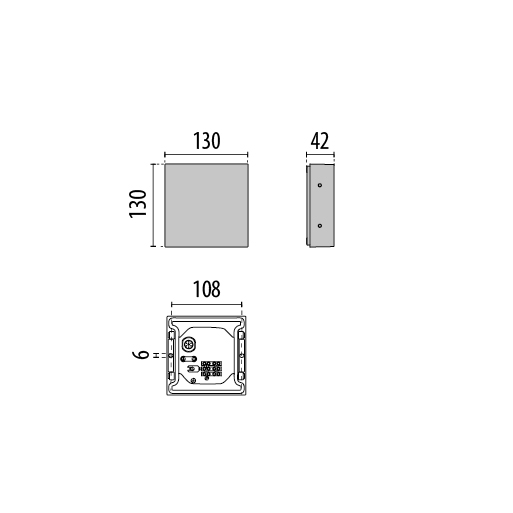

Technical drawings

Optional accessories

MIMIK 10 - FLAT M

	Part number	Colour / Finishing	Description	Downloads
	310919		Customising ring / Facade Accessory	Add to technical datasheetRemove from technical datasheet
