PADO

PADO

PADO

PADO - 1

PADO - 2

PADO - 3

PADO

Part number 304093

Series of LED landscaping outdoor bollard and pole-top luminaires, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)

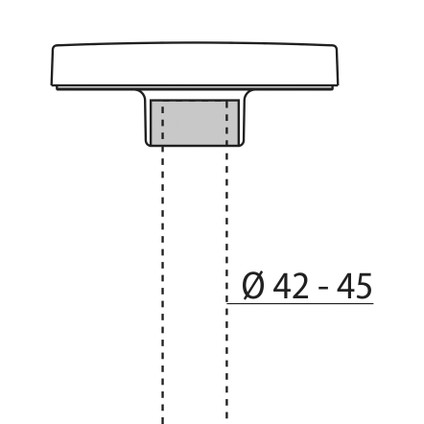

- Adapter for posts Ø 42-45 mm made of polyester powder-coated die-cast aluminium
- Internally frosted glass diffuser
- Anti-ageing custom moulded silicone sealing gasket(s)
- IP-rated external socket-plug fast connector (QUICK), complete with factory pre-wired cable
- Stainless steel locking hardware
- Suitable for installation on existing poles Ø 60 mm (PADO /PADO BASIC)
- Design by ALESSANDRO PEDRETTI

Product data

ETIM Group:

EG000027

ETIM Class:

EC000301

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1974

Luminaire lumen output
[lm]:

1080

Luminaire
wattage [W]:

20 W

Luminous efficacy [lm/W]:

54

CRI:

80

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

IK-J-xxIP:

IK05 0.7J xx3

Protection class:

I

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

0.964

Overall diameter [mm]:

208

Overall height [mm]:

75

Mechanical features

Shape:

Round 150 ≤ x ≤ 300 mm

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

52

C16 2.5 mm²:

85

B10 1.5 mm²:

31

B16 2.5 mm²:

50

Installation

Application area:

Outdoor

Mounting type:

Posts / garden co-ords

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

35

Light features

MacAdam:

3

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

Photometric data

Photometric Lvk PADO 1

Technical drawings

Tech Design PADO 1++

Optional accessories

PADO

	Part number	Colour / Finishing	Description	Downloads
	310481		Pole top adaptor Ø 45 mm PADO	Add to technical datasheetRemove from technical datasheet
