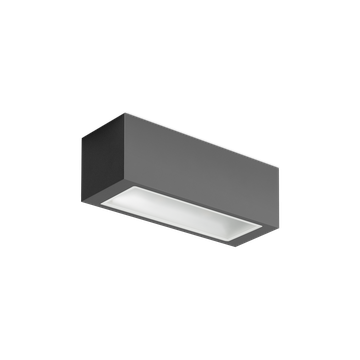

QUASAR 30 CEILING TECH
QUASAR 30 CEILING TECH - 1

QUASAR 30 CEILING TECH

Part number 306176
  • Ceiling surface mounted LED luminaire, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Microprismatic, toughened, flat glass diffuser, silk-screened on the inside (TECH versions)
  • - Satin finish pure aluminium reflector (Al 99.98)
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Built-in driver
  • - Openable and maintainable luminaire (future-proof)

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
2276
Luminaire lumen output
[lm]:
1482
Luminaire
wattage [W]:
20 W
Luminous efficacy [lm/W]:
74
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP65
IK-J-xxIP:
IK07 2J xx5
Protection class:
I
Optic:
S/I - Symmetric Intensive
Net weight [kg]:
2.605
Overall length [mm]:
300
Overall width [mm]:
102
Overall height [mm]:
100

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
4 / 50
C10 1.5 mm²:
57
C16 2.5 mm²:
91
B10 1.5 mm²:
38
B16 2.5 mm²:
60

Installation

Application area:
Outdoor
Mounting type:
Ceiling surface
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
35

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct
Zero light pollution (ULR = 0%):

Photometric data

Photometric Lvk QUASAR 30 CEILING TECH 1

Technical drawings

Tech Design QUASAR 30 CEILING TECH 1++
