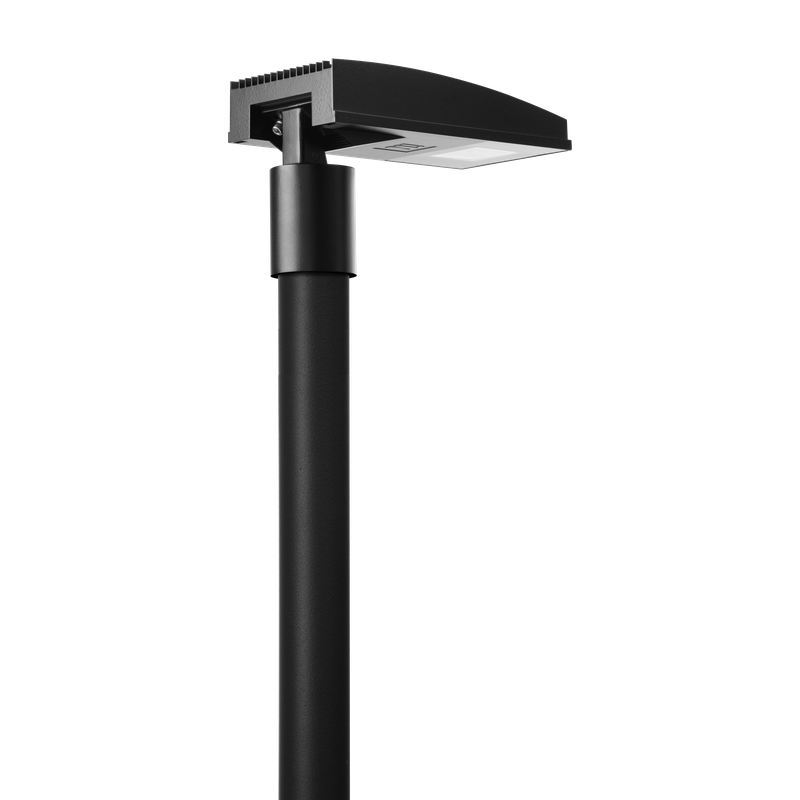

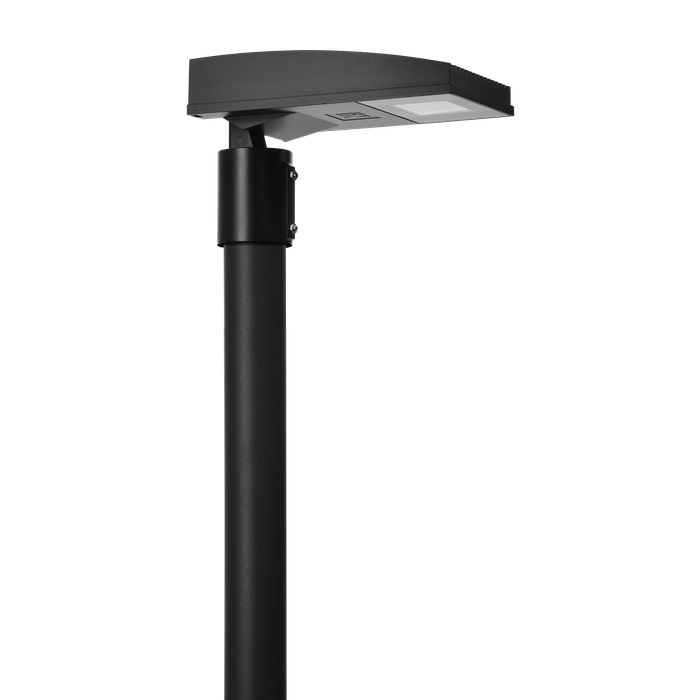

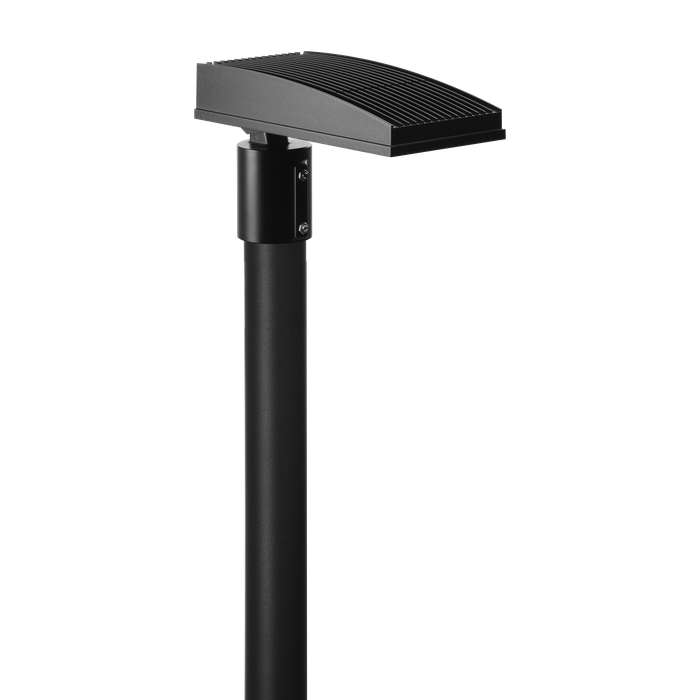

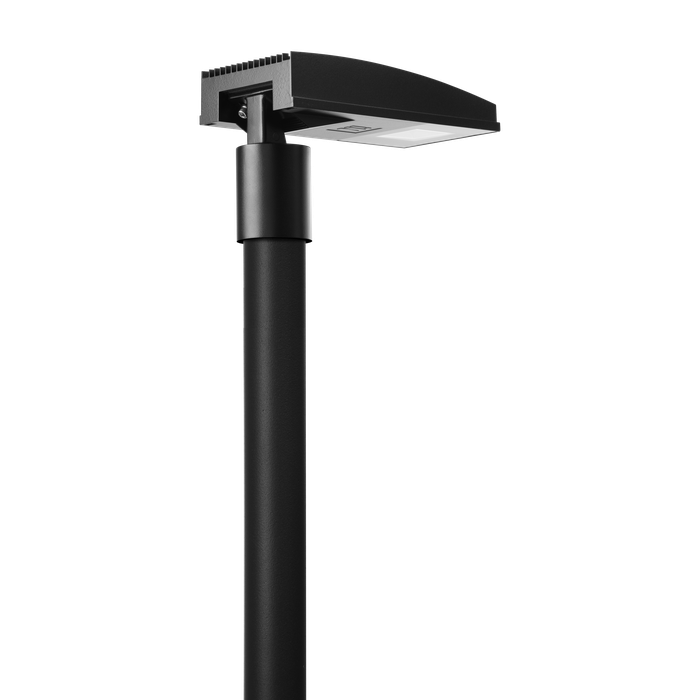

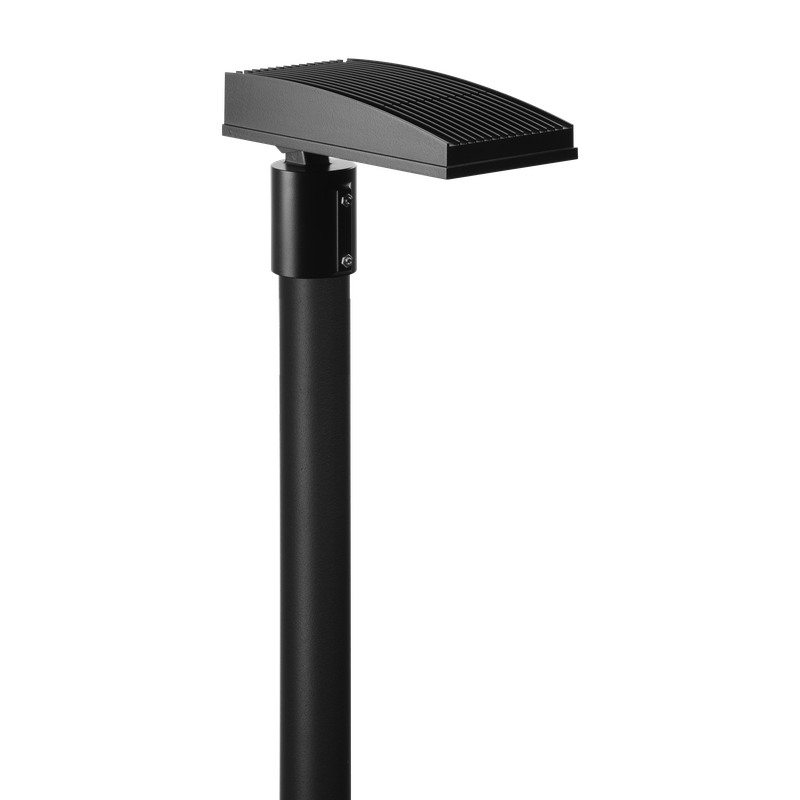

SPIDER+ POST A/EW MULTIPOWER

Part number 3109056

Pole-top mounted outdoor luminaire, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Die-cast aluminium pole clamp with polyester powder coat finish ISO 9227/19244 - ISO 9233 (C5) , for Ø 60 mm poles
- Extra pure polished aluminium reflector
- Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
- Glazing diffuser permanently sealed to the housing trough high-temperature resistant silicone
- Anti-ageing custom moulded silicone sealing gasket(s)

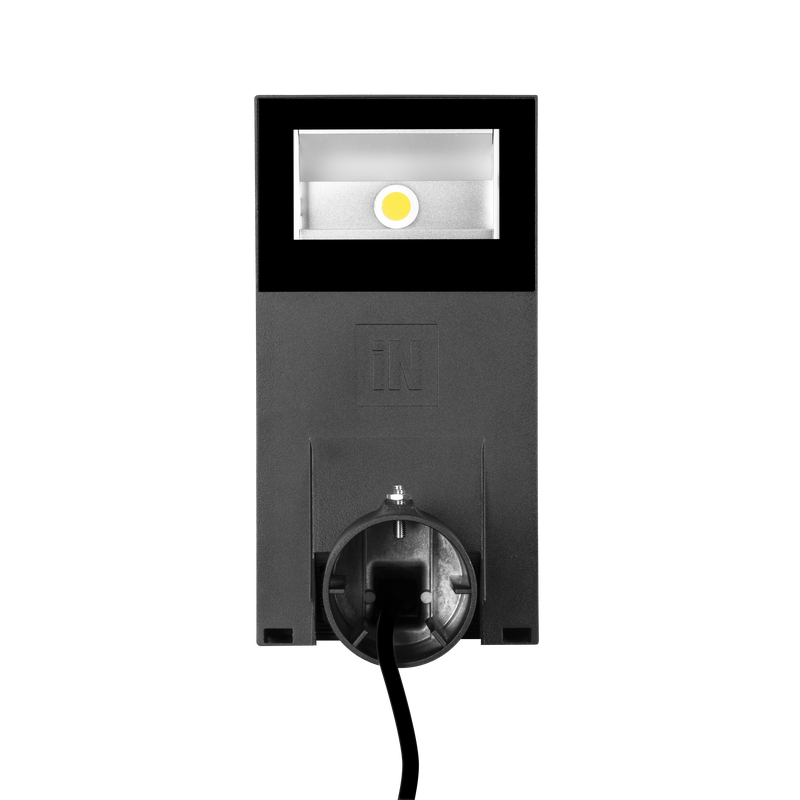

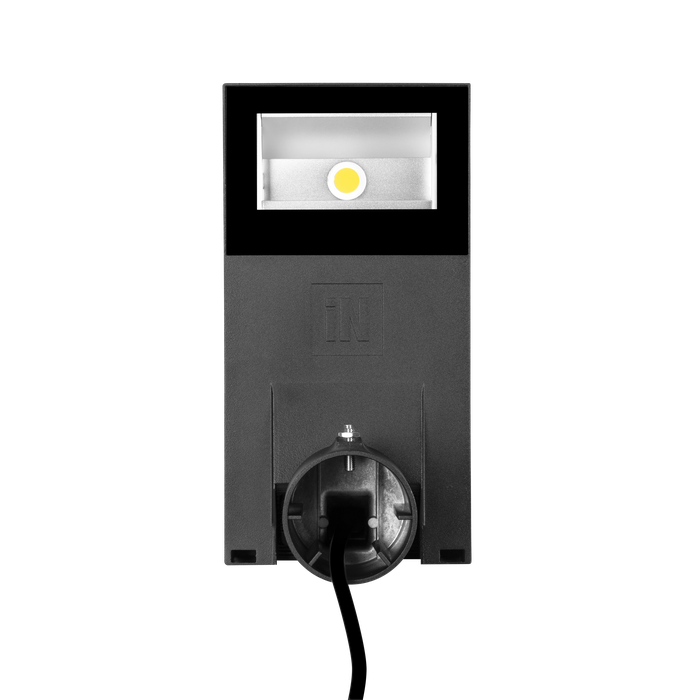

- IP66-rated, PA66 polyamide, socket-plug fast connector, complete with factory pre-wired cable for mains connection without opening the luminaire, for cables Ø 6.5 - Ø 10 mm
- Luminaire designed to operate with two predetermined power levels that can be selected by the user acting on the specific cable in the fast connector
- Built-in driver
- Stainless steel locking hardware
- The luminous flux data shown refer to the maximum power operating level
- Pole clamp for Ø 76 mm poles is available as accessory
- Design by GIORGIO LODI

Product data

ETIM Group:

EG000027

ETIM Class:

EC000062

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

6677

Luminaire lumen output
[lm]:

5754

Luminaire
wattage [W]:

37/51 W

Luminous efficacy [lm/W]:

156

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

BK-81 / Black / Textured

IP degree
of protection:

IP66

IK-J-xxIP:

IK06 1J xx3

Protection class:

Optic:

A35/EW - Asymmetric Extra-Wide

Net weight [kg]:

3.21

Overall length [mm]:

180

Overall width [mm]:

350

Overall height [mm]:

220

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Frontal exposed area [m²]:

0.02

Lateral exposed area [m²]:

0.04

Top exposed area [m²]:

0.06

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 805

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Street lighting

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.50

Light features

MacAdam:

Lumen maintenance:

L70B10@70000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A4+

IPEA* (large areas, roundabouts):

A5+

IPEA* (cycle-pedestrian):

A4+

IPEA* (green areas):

A4+

IPEA* (historic city centers):

A7+

Photometric data

Photometric Lvk SPIDER+ POST A/EW MULTIPOWER 1

Photometric Lvk SPIDER+ POST A/EW MULTIPOWER 2

Technical drawings

Optional accessories

SPIDER+ POST

	Part number	Colour / Finishing	Description	Downloads
	3109437		Painted die-cast aluminium pole-mounting joint for pole Ø 76 mm	Add to technical datasheetRemove from technical datasheet
	1407779690100		Wall angled bracket in hot dipped galvanized steel, cataphoresis and finished polyester - Ø 60 mm	Add to technical datasheetRemove from technical datasheet
