STADIUM PRO 3M SYMMETRIC
STADIUM PRO 3M SYMMETRIC - 1

STADIUM PRO 3M SYMMETRIC

Part number GWP3331AN957
  • High-power LED floodlight, with an LES (light emitting surface) high emission, suitable for lighting sports facilities for professional competitive competitions
  • - Stadium Pro is for a professional use hence the photometric data are not disclosed. We invite you to take contact with our technical and commercial teams
  • - The spotlight has a graphite grey finish with trivalent treatment for maximum resistance to oxidation and is equipped with an integrated “self-cleaning” thermal dissipation system
  • - The spotlight is available in 4,000K or 5,700K colour temperatures and CRI>70, CRI>80 or CRI>90 (TLCI>80) colour rendering
  • - The range also includes 6 types of circular optics, from 8° to 40°, 1 symmetrical/Elliptical optic and 2 asymmetric optics
  • - The range includes a DALI2 or DMX-RDM power supply, to allow maximum flexibility in the creation of even complex light sets
  • - The power supply box can be fixed on the edge-bracket, or remotely, it is immune to surges of up to 10 kV both in RCCB and common mode, with a single cable
  • - The T.I.R.Ex optical system developed by GEWISS, with high transparency PMMA HT lenses, permits total control over the light beam, allowing for wide flexibility in the design environment, with high qualitative and quantitative performance
  • - It consists of three modules, each with a venting and non-condensing valve, protected from accidental impacts
  • - The rotation system between the bracket and the optical modules is truncated-conical in aluminium with an integrated goniometer within the bracket for easy orientation control and fixing by means of a grub-screw, which ensure the tightness over time of each individual module
  • - L90B10 (Tq 25°C) = 40.000 h; L80B10 (Tq 25°C) = 75.000 h

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
118000
Luminaire
wattage [W]:
1450 W
Luminous efficacy [lm/W]:
81
CRI:
90
Colour
temperature [K]:
5700
Colour /
Finishing:
Graphite grey / Graphite grey
IP degree
of protection:
IP66
IK-J-xxIP:
IK08 5J xx5
Protection class:
I
Optic:
C6 - Circular
Beam
angle:
8°
Net weight [kg]:
30.081
Overall length [mm]:
825
Overall width [mm]:
631
Overall height [mm]:
755

Mechanical features

Housing material:
Aluminium
Diffuser material:
Glass

Installation

Application area:
Outdoor
Mounting type:
Sports / High Powered Floodlighting
Min. ambient temperature [°C]:
-25
Max. ambient temperature [°C]:
50

Light features

MacAdam:
3
Lumen maintenance:
L90B10@40000h
Distribution of light emission:
Direct
UGR max.:
0.0
IPEA* (green areas):
C

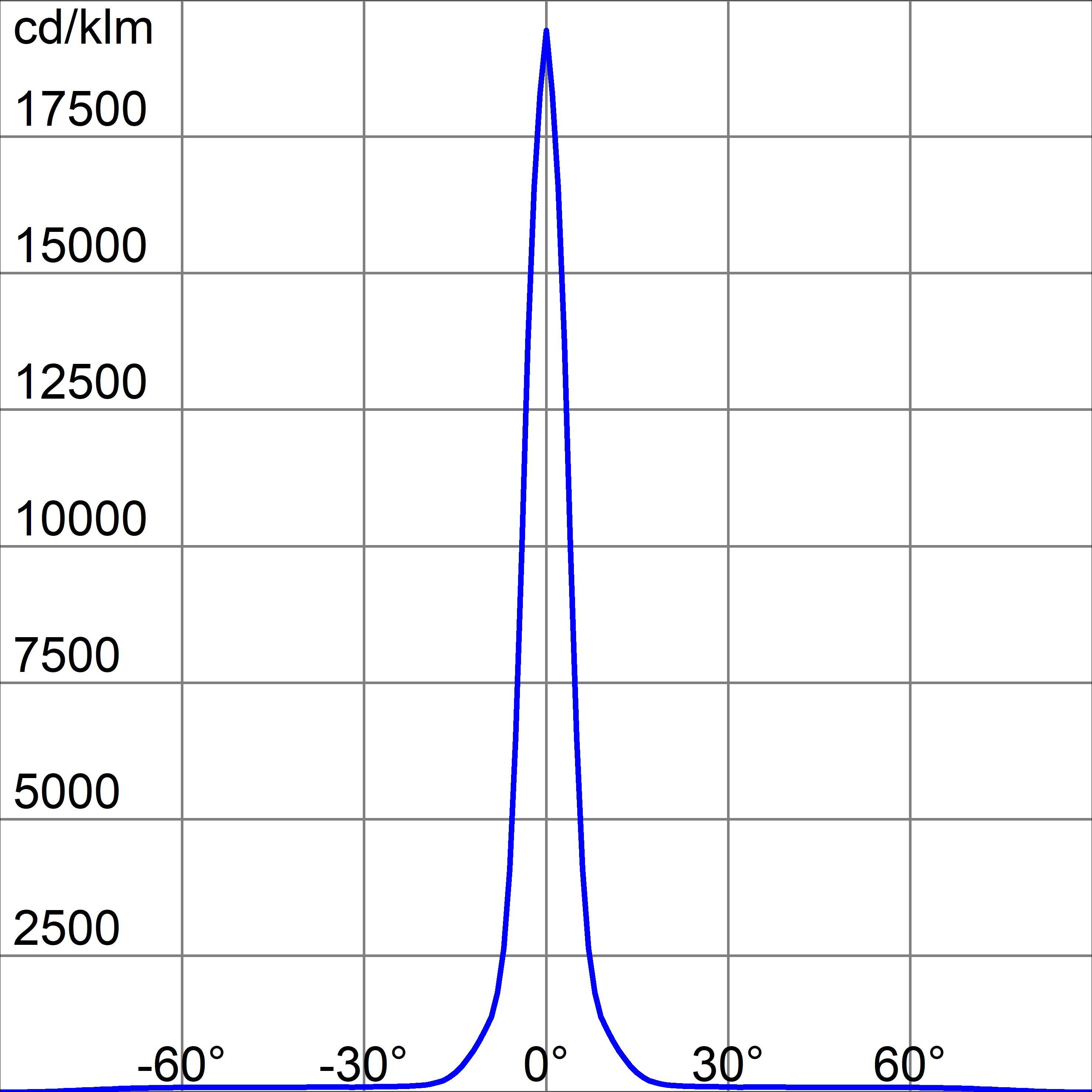

Photometric data

Photometric Lvk STADIUM PRO 3M SYMMETRIC 1

Technical drawings

Tech Design STADIUM PRO 3M SYMMETRIC 1++

Part number Colour /
Finishing		 Description Downloads
Connection kit for 3 single drivers
GWP30037
Connection kit for 3 single drivers

Control gear

STADIUM PRO 3M

Part number Colour /
Finishing		 Description Downloads
Single driver 0-10 V 220-240 V
GWP30017
Single driver 0-10 V 220-240 V
Downloads
Single driver DALI 220-240 V
GWP30015
Single driver DALI 220-240 V
Downloads
Driver box 0-10 V 220-240 V
GWP30035
Driver box 0-10 V 220-240 V
Downloads
Driver box DALI 220-240 V
GWP30033
Driver box DALI 220-240 V
Downloads
Power supply unit DALI 220-400 V
GWP30031
Power supply unit DALI 220-400 V
Downloads
Power supply unit DMX 220-400 V
GWP30032
Power supply unit DMX 220-400 V
Downloads
Power supply unit connection kit
GWP30030
Power supply unit connection kit
Downloads

Optional accessories

STADIUM PRO 3M

Part number Colour /
Finishing		 Description Downloads
Red Dot pointer support
GWP30004
Red Dot pointer support
Downloads
Anti-glare louvre for circular optic versions
GWP30002
Anti-glare louvre for circular optic versions
Downloads
Visor for symmetric or circular optic versions
GWP30003
Visor for symmetric or circular optic versions
Downloads
Connector GW Connect 12 poles
GWP20004
Connector GW Connect 12 poles
Downloads
Power supply unit mounting bracket
GWP30001
Power supply unit mounting bracket
Downloads
H07RN-F 12x1,5 mm2 cable - skein 50 m
GWP20005
H07RN-F 12x1,5 mm2 cable - skein 50 m
Downloads

STADIUM PRO 3M /SYMM

Part number Colour /
Finishing		 Description Downloads
Replacement glass for symmetric optic versions
GWP30006
Replacement glass for symmetric optic versions
Downloads

STADIUM PRO 3M /ASYMM

Part number Colour /
Finishing		 Description Downloads
Replacement glass for asymmetric optic versions
GWP30009
Replacement glass for asymmetric optic versions
Downloads
