TYK+ 30 C/I
TYK+ 30 C/I
TYK+ 30 C/I
TYK+ 30 C/I
TYK+ 30 C/I - 1
TYK+ 30 C/I - 2
TYK+ 30 C/I - 3
TYK+ 30 C/I - 4
TYK+ 30 C/I - 5

TYK+ 30 C/I

Part number 3107359
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium separate housing compartments to maximise heat dissipation between electronic components and the LEDs, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
  • - Glazing diffuser permanently sealed to the housing trough high-temperature resistant silicone
  • - High-transparency polycarbonate optics
  • - Intensive circular optic
  • - Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
  • - Tear-proof nickelled brass cable gland M20x1.5 for cables Ø 10 mm- Ø 14 mm
  • - Each luminaire is supplied with two IP 68 cable gland allowing a single or a through power connection
  • - Driver integral surge protection up to 6 kV (DM)
  • - Stainless steel locking hardware
  • - Stainless steel wall-mounting bracket
  • - Integral graduated stainless steel goniometer for precise aimings
  • - The snoot accessory is compatible with narrow-beam (C/I) optics

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
9980
Luminaire lumen output
[lm]:
7610.38
Luminaire
wattage [W]:
85 W
Luminous efficacy [lm/W]:
90
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP66
IK-J-xxIP:
IK09 10J xx7
Protection class:
II
Optic:
C/I - Circular Intensive
Beam
angle:
10°
Net weight [kg]:
6.064
Overall diameter [mm]:
275
Overall length [mm]:
275
Overall width [mm]:
316
Overall height [mm]:
114

Mechanical features

Shape:
Round 150 ≤ x ≤ 300 mm
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.06
Lateral exposed area [m²]:
0.03
Top exposed area [m²]:
0.03

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Surge protection | Common [kV]:
6.0
Surge protection | Differential [kV]:
6.0
Inrush current [A/μs]:
65 / 268
C10 1.5 mm²:
5
C16 2.5 mm²:
8
B10 1.5 mm²:
3
B16 2.5 mm²:
5

Installation

Application area:
Outdoor
Mounting type:
Feature Spot Lights
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
40
Glass temperature [°C]:
52
Min. distance from lighted object [m]:
0.50

Light features

MacAdam:
3
Lumen maintenance:
L90B10@50000h
Distribution of light emission:
Direct
UGR max.:
0.0
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):

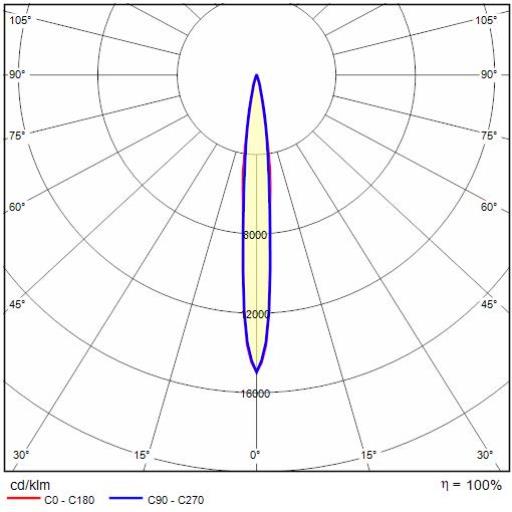

Photometric data

Photometric Lvk TYK+ 30 C/I 1

Technical drawings

Tech Design TYK+ 30 C/I 1++

Optional accessories

TYK+ 30 C/I

Part number Colour /
Finishing		 Description Downloads
Anti-glare snoot
3107469
Anti-glare snoot
Downloads

TYK+ 30

Part number Colour /
Finishing		 Description Downloads
Extra rotation bracket +55°/-90°
3108558
Extra rotation bracket +55°/-90°
Downloads
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 1 luminaire
14029094
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 1 luminaire
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 2 opposed luminaires
14047194
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 2 opposed luminaires
Two-axis rotation bracket for gliding support
3107473
Two-axis rotation bracket for gliding support
Downloads
Gliding support made of painted aluminium for the installation on Ø 60 mm posts
14099896
Gliding support made of painted aluminium for the installation on Ø 60 mm posts
Gliding support made of painted aluminium for the installation on Ø 90 mm posts
14099696
Gliding support made of painted aluminium for the installation on Ø 90 mm posts
