WIN PRO 30 A/M
WIN PRO 30 A/M
WIN PRO 30 A/M - 1
WIN PRO 30 A/M - 2

WIN PRO 30 A/M

Part number 3114552
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra clear, toughened, flat glass diffuser
  • - High-transparency polycarbonate optics
  • - Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
  • - Fully integrated PA66 fiberglass reinforced technopolymer trim hinged to the housing
  • - M20x1.5 cable gland for cables Ø10–Ø14 mm
  • - Stainless steel locking hardware
  • - Powder-coated steel tiltable bracket
  • - Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
  • - Complete with ZHAGA socket positioned on the upper part of the luminaire (UP position) and D4i driver. Ready for "radio frequency node" smart, twilight and other compatible solutions (ZHAGA options). Consult factory for more options
  • - Openable and maintainable luminaire (future-proof)
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
34221
Luminaire lumen output
[lm]:
28338
Luminaire
wattage [W]:
195 W
Luminous efficacy [lm/W]:
145
CRI:
70
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK08 5J xx5
Protection class:
I
Optic:
A55/M - Asymmetric Medium
Net weight [kg]:
9.815
Overall length [mm]:
411
Overall width [mm]:
528
Overall height [mm]:
95

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.03
Lateral exposed area [m²]:
0.04
Top exposed area [m²]:
0.18

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Surge protection | Common [kV]:
10.000000
Surge protection | Differential [kV]:
10.000000
Inrush current [A/μs]:
6 / 930
C10 1.5 mm²:
3
C16 2.5 mm²:
5
B10 1.5 mm²:
2
B16 2.5 mm²:
3

Installation

Application area:
Outdoor
Mounting type:
Floodlighting
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
45
Min. distance from lighted object [m]:
0.50

Light features

MacAdam:
3
Lumen maintenance:
L80B10@220000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):
IPEA* (road lighting):
A3+
IPEA* (large areas, roundabouts):
A8+
IPEA* (cycle-pedestrian):
A5+
IPEA* (green areas):
A5+
IPEA* (historic city centers):
A9+

Photometric data

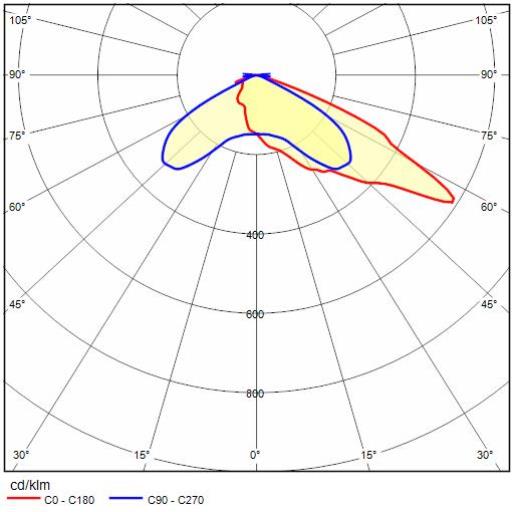

Photometric Lvk WIN PRO 30 A/M 1

Technical drawings

Tech Design WIN PRO 30 A/M 1++

Optional accessories

WIN PRO 30

Part number Colour /
Finishing		 Description Downloads
Louvre WIN PRO 30 - 5°
3116517
Louvre WIN PRO 30 - 5°
Downloads
Louvre WIN PRO 30 - 10°
3116518
Louvre WIN PRO 30 - 10°
Downloads
External steel cowl painted aluminium grey
14045794
External steel cowl painted aluminium grey
Downloads
External anti-glare louvre painted aluminium grey
14045694
External anti-glare louvre painted aluminium grey
Downloads
Strengthening bracket. Suitable for one floodlight single point fixing M12 screw in centre of the bracket
14046120
Strengthening bracket. Suitable for one floodlight single point fixing M12 screw in centre of the bracket
Downloads
Single pole top mounting, for Ø 60-76 mm poles, painted aluminium grey
14051294
Single pole top mounting, for Ø 60-76 mm poles, painted aluminium grey
Downloads
1000 mm extension arm in heavy gauge steel, painted aluminium grey
14048694
1000 mm extension arm in heavy gauge steel, painted aluminium grey
Downloads
Double pole top mounting, Ø 60-76 mm poles, painted aluminium grey
14051394
Double pole top mounting, Ø 60-76 mm poles, painted aluminium grey
Downloads
Long bracket for ceiling mounting, painted aluminium grey
14057394
Long bracket for ceiling mounting, painted aluminium grey
