WIN PRO+ 20 A/M
WIN PRO+ 20 A/M
WIN PRO+ 20 A/M - 1
WIN PRO+ 20 A/M - 2

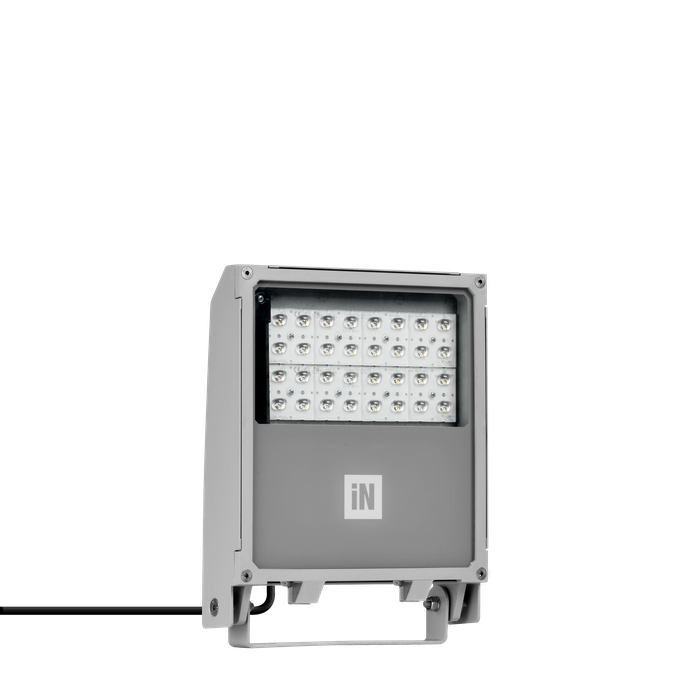

WIN PRO+ 20 A/M

Part number 3116080
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra clear, toughened, flat glass diffuser
  • - High-transparency polycarbonate optics
  • - Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
  • - Coated die-cast aluminium captive trim, hinged to the housing
  • - M20x1.5 cable gland for cables Ø10–Ø14 mm
  • - Complete with 1 m factory pre-wired cable H07RN-F 3G1.5 mm²
  • - Stainless steel locking hardware
  • - Powder-coated steel tiltable bracket
  • - Openable and maintainable luminaire (future-proof)
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
12856
Luminaire lumen output
[lm]:
9330
Luminaire
wattage [W]:
68 W
Luminous efficacy [lm/W]:
137
CRI:
70
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP66
IK-J-xxIP:
IK08 5J xx5
Protection class:
I
Optic:
A55/M - Asymmetric Medium
Net weight [kg]:
3.336
Overall length [mm]:
267
Overall width [mm]:
341
Overall height [mm]:
68

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.02
Lateral exposed area [m²]:
0.02
Top exposed area [m²]:
0.09

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
>0.9
Surge protection | Common [kV]:
10.000000
Surge protection | Differential [kV]:
6.000000
Inrush current [A/μs]:
42 / 238
C10 1.5 mm²:
10
C16 2.5 mm²:
17
B10 1.5 mm²:
6
B16 2.5 mm²:
10
EEI:
-

Installation

Application area:
Outdoor
Mounting type:
Floodlighting
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
50
Min. distance from lighted object [m]:
0.50

Light features

MacAdam:
3
Lumen maintenance:
L80B10@250000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):
IPEA* (road lighting):
A7+
IPEA* (large areas, roundabouts):
A8+
IPEA* (cycle-pedestrian):
A6+
IPEA* (green areas):
A6+
IPEA* (historic city centers):
A11+

Photometric data

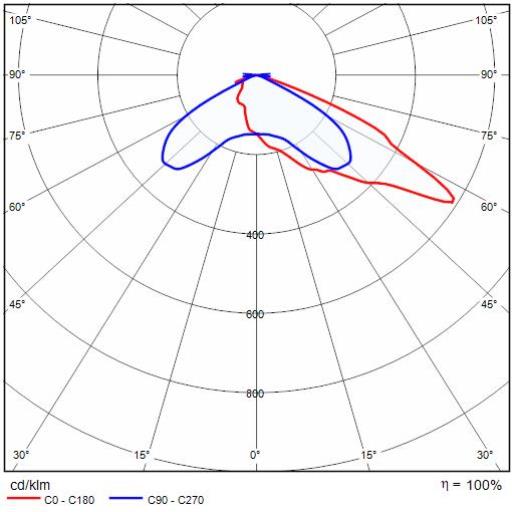

Photometric Lvk WIN PRO+ 20 A/M 1

Technical drawings

Tech Design WIN PRO+ 20 A/M 1++

Optional accessories

WIN PRO 20

Part number Colour /
Finishing		 Description Downloads
Louvre WIN PRO 20 - 5°
3116934
Louvre WIN PRO 20 - 5°
Downloads
Louvre WIN PRO 20 - 10°
3116935
Louvre WIN PRO 20 - 10°
Downloads
External steel cowl painted aluminium grey
14043194
External steel cowl painted aluminium grey
Downloads
External anti-glare louvre painted aluminium grey
14043294
External anti-glare louvre painted aluminium grey
Downloads
Connection Kit 5P Ø 8÷17 mm - IP68
3115887
Connection Kit 5P Ø 8÷17 mm - IP68
Downloads
Wspornik montażowy ze stali nierdzewnej
14048104
Wspornik montażowy ze stali nierdzewnej
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 1 luminaire
14029094
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 1 luminaire
Downloads
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 2 opposed luminaires
14047194
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 2 opposed luminaires
Downloads
500 mm wall mounting extension arm in sheet steel painted aluminium grey
14043394
500 mm wall mounting extension arm in sheet steel painted aluminium grey
Downloads
