BLIZ LED RING

Part number 303414

Wall and ceiling mounted luminaire for indoor and outdoor, comprising:
- Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Glass diffuser
- EPDM sealing gasket
- Stainless steel locking hardware

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1555

Luminaire lumen output
[lm]:

734

Luminaire
wattage [W]:

14 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

2.23

Overall length [mm]:

260

Overall width [mm]:

Overall height [mm]:

130

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Wall / Ceiling surface

Min. ambient temperature [°C]:

-10

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

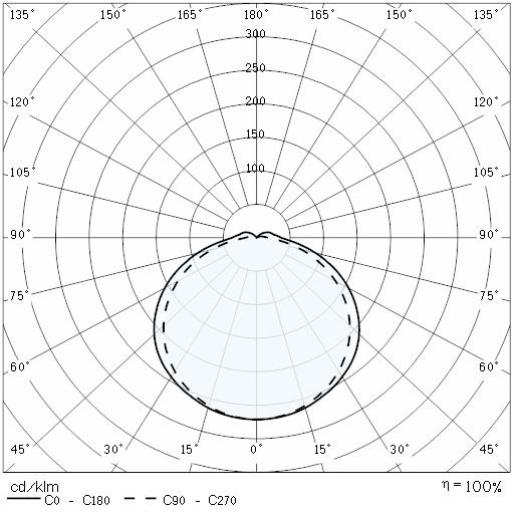

Photometric data

Technical drawings

Optional accessories

BLIZ

	Part number	Colour / Finishing	Description	Downloads
	315028		Post Bliz 530 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: BLIZ - 315028
	315026		Post Bliz 1030 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: BLIZ - 315026
