NORMA+ 150 CL
NORMA+ 150 CL
NORMA+ 150 CL
NORMA+ 150 CL - 1
NORMA+ 150 CL - 2
NORMA+ 150 CL - 3

NORMA+ 150 CL

Part number 305947
  • Weatherproof LED luminaire, comprising:
  • - UV stabilised co-extruded polycarbonate body with double finish; satin-finish for the optical compartment and matte finish for the auxiliary electrical compartment
  • - Technolpolymer end caps
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Tool-less bayonet opening polycarbonate cap for mains connection
  • - The CL (Continuous Line) versions are suitable for through wiring continuous line installations (5x2,5 mm²)
  • - M20x1.5 cable gland for cables Ø10–Ø14 mm
  • - Complete with through wiring for power supply to a continuous row
  • - Aluminium heat sink
  • - Stainless steel springs for quick installation

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
10742
Luminaire lumen output
[lm]:
9104
Luminaire
wattage [W]:
59 W
Luminous efficacy [lm/W]:
154
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
GR-RAL7035 / Grey RAL7035 / Matt
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK09 15J xx7
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
1.847
Overall length [mm]:
1560
Overall width [mm]:
76
Overall height [mm]:
64

Mechanical features

Shape:
Rectangular
Housing material:
Plastic
Diffuser material:
Plastic
Glow wire test [°C]:
750 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.9
Inrush current [A/μs]:
30 / 190
C10 1.5 mm²:
24
C16 2.5 mm²:
38
B10 1.5 mm²:
34
B16 2.5 mm²:
30

Installation

Application area:
Indoor
Mounting type:
Weatherproofs
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
35

Light features

MacAdam:
5
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct

Photometric data

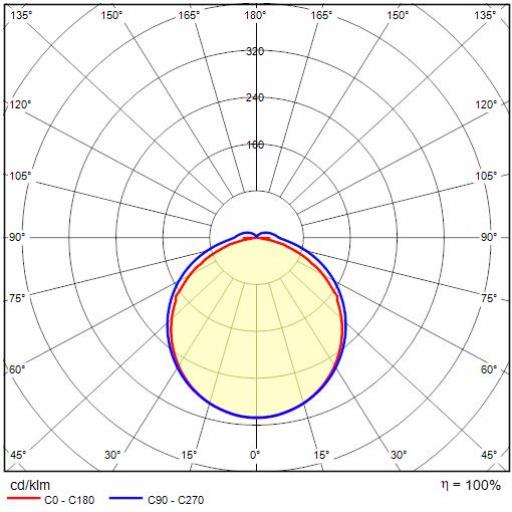

Photometric Lvk NORMA+ 150 CL 1

Technical drawings

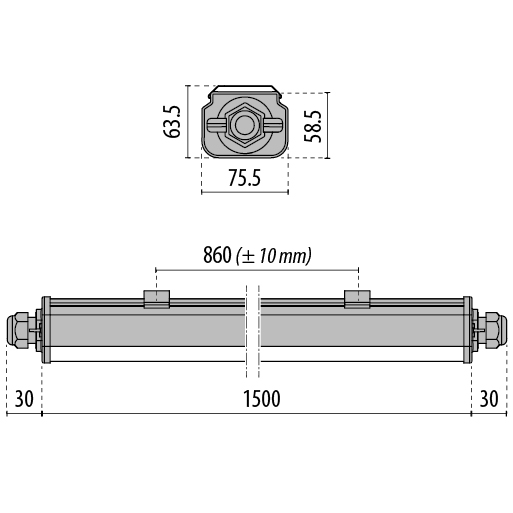

Tech Design NORMA+ 150 CL 1++
