Q-LIGHT

Q-LIGHT - 1

Q-LIGHT

Part number 306671

Landscaping LED bollard, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Extra pure polished aluminium reflector
- Clear UV-stabilised and impact-resistant technopolymer diffuser
- Die-cast aluminium housing and fixing plate for in-ground installation, painted
- Die-cast aluminium housing complete with two PG11 cable glands suitable for through wiring of Ø 5 mm to Ø 10 mm cables
- Stainless steel fixing screws and rods
- Extruded aluminium pole polyester powder coat finish ISO 9227/19244 - ISO 9223 (C5)
- Base plate included

Product data

ETIM Group:

EG000027

ETIM Class:

EC000301

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2088

Luminaire lumen output
[lm]:

1151

Luminaire
wattage [W]:

14 W

Luminous efficacy [lm/W]:

82

CRI:

80

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-94 / Metallic grey / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

I

Optic:

S/W - Symmetric Wide

Net weight [kg]:

4.965

Overall length [mm]:

118

Overall width [mm]:

118

Overall height [mm]:

683

Mechanical features

Shape:

Square ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

52

C16 2.5 mm²:

85

B10 1.5 mm²:

31

B16 2.5 mm²:

50

Installation

Application area:

Outdoor

Mounting type:

Bollards

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

35

Light features

MacAdam:

3

Lumen maintenance:

L90B10@36000h

Distribution of light emission:

Direct/Indirect

Luminous Intensity Class:

G*1

IPEA* (road lighting):

B

IPEA* (large areas, roundabouts):

B

IPEA* (cycle-pedestrian):

C

IPEA* (green areas):

C

IPEA* (historic city centers):

C

Photometric data

Photometric Lvk Q-LIGHT 1

Technical drawings

Tech Design Q-LIGHT 1++

Optional accessories

Q-LIGHT

	Part number	Colour / Finishing	Description	Downloads

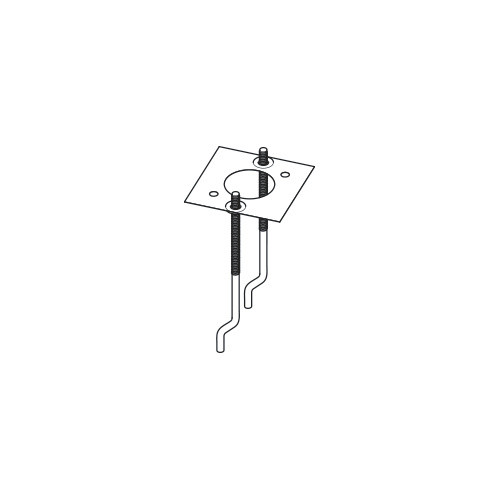

	310398		Baseplate Q-series	Add to technical datasheetRemove from technical datasheet
