DL SQUARE MAXI

Part number 3109002

Recessed, modular, LED downlight for indoor, comprising:
- LED module, die-cast aluminium heat sink, reflector with integrated ceiling trim, diffuser and external supply unit
- All components can be tool-less replaced lately
- Integrated diffuser grants an optimised uniformity
- Die-cast aluminium heat sink with Fast™ (Flexible air stream technology) cooling system grants an excellent dissipation and thermal management
- Built-in driver
- Suitable for ceiling tile thickness from 1-25 mm
- Quick and toolless installation
Options:
- High-shine modular radial louvre reflector with integrated ceiling frame made of metallised injection-moulded ABS with light-tight connection to LED module
- Injection-moulded ABS reflector with integral ceiling trim with light-tight connection to LED module and matte plastic pane (IP54)

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

3500

Luminaire lumen output
[lm]:

3130

Luminaire
wattage [W]:

21 W

Luminous efficacy [lm/W]:

149

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

SL-10 / Silver / Textured

IP degree
of protection:

IP20

IP above/below ceiling:

IP20/IP44

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

Optic:

C/EW - Circular Extra-Wide

Beam
angle:

2 x 42°

Net weight [kg]:

0.93

Overall length [mm]:

225

Overall width [mm]:

225

Overall height [mm]:

Cut-out dimensions [mm]:

210 X 210

Minimum installation depth [mm]:

Mechanical features

Shape:

Square 150 ≤ x ≤ 300 mm

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

>0.9

Input voltage [V DC]:

176/280

Inrush current [A/μs]:

16 / 226

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Downlights

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

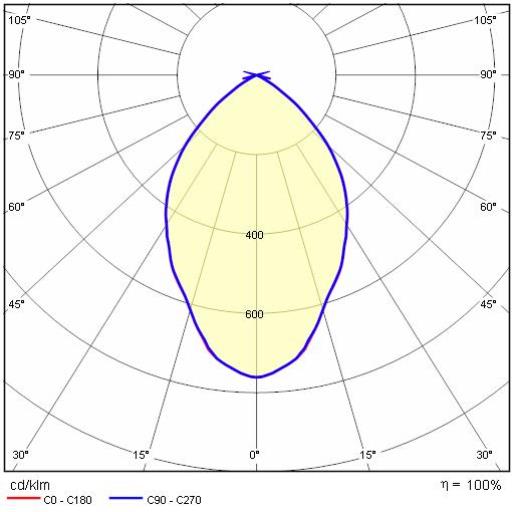

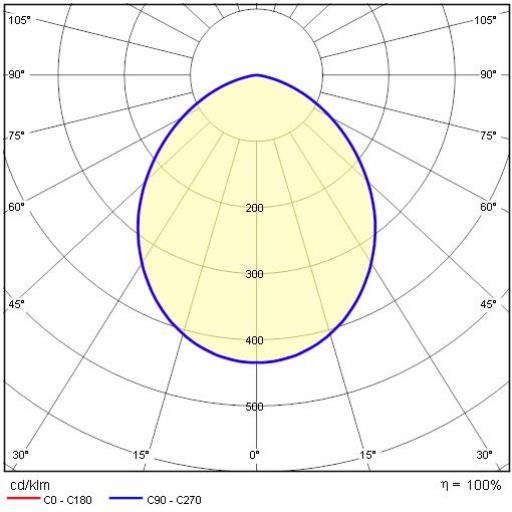

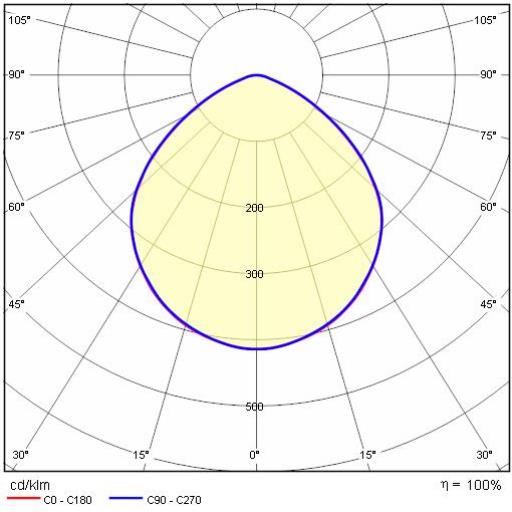

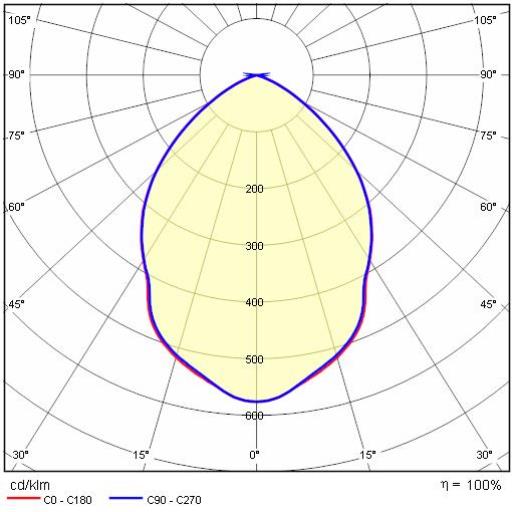

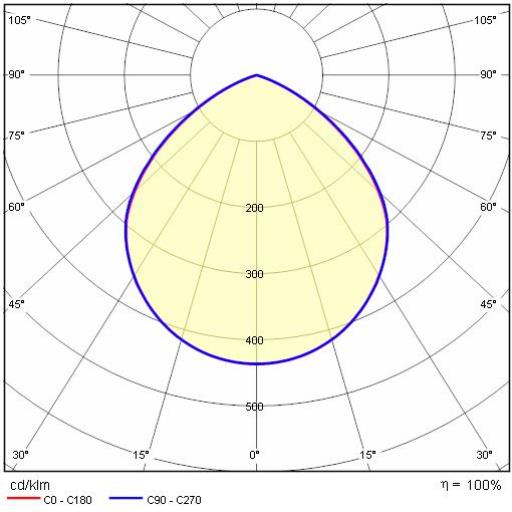

Photometric data

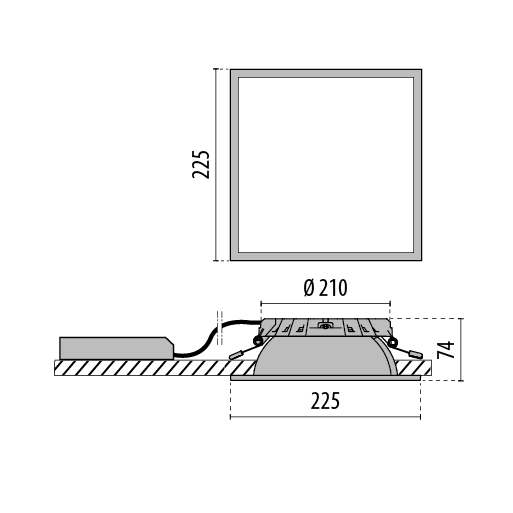

Technical drawings

Optional accessories

DL SQUARE MAXI

Part number	Description	Downloads
3109020	Louvre reflector DL SQUARE MAXI	Add to technical datasheetRemove from technical datasheet
3109018	White reflector DL SQUARE MAXI	Add to technical datasheetRemove from technical datasheet
3109021	Matte plastic panel (IP54) DL SQUARE MAXI	Add to technical datasheetRemove from technical datasheet
3109019	Black reflector DL SQUARE MAXI	Add to technical datasheetRemove from technical datasheet
