AMIGO 36 S/EW

Part number 3109250

Ultra-flat LED luminaire, includes:
- Galvanized perforated sheet, powder-coated housing
- Optics made up of PMMA optics and white polycarbonate reflectors to optimise light distribution
- UGR<16
- Remote ON/OFF driver included
Options:
- Dimmable DALI options available. Consult factory

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

4680

Luminaire lumen output
[lm]:

3383

Luminaire
wattage [W]:

25 W

Luminous efficacy [lm/W]:

135

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-87 / White / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

3.662

Overall length [mm]:

595

Overall width [mm]:

595

Overall height [mm]:

Mechanical features

Shape:

Square ≥ 300 mm

Housing material:

Painted steel

Diffuser material:

Transparent plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

8 / 40

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Ceiling recessed

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@84000h

Distribution of light emission:

Direct

UGR max.:

15.2

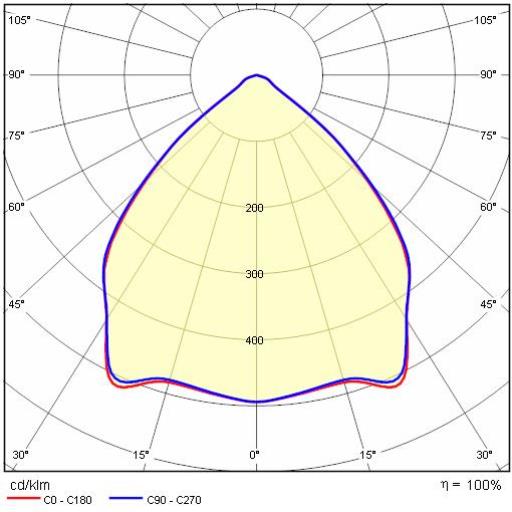

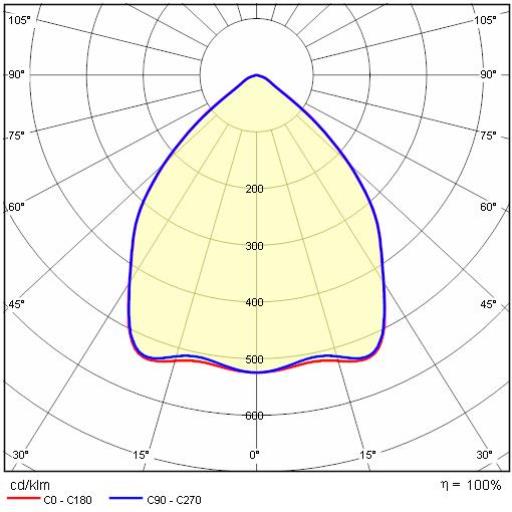

Photometric data

Technical drawings

Optional accessories

AMIGO 36

Part number	Description	Downloads
3109055	Driver DALI	Add to technical datasheetRemove from technical datasheet
19-02531	Ceiling kit	Add to technical datasheetRemove from technical datasheet
3111872	Kit EM3P	Add to technical datasheetRemove from technical datasheet
