KREOS

IoT-ready street lighting post-top luminaires

The quality light smart cities deserve

KREOS, future of "krei" (to create) in the Esperanto language, is a wish to bring fast from scratch the smart city of tomorrow. Thanks to the experience gained with projects worldwide, PERFORMANCE iN LIGHTING has developed this series with new proprietary optics, made with premium silver-plated reflectors. They are designed according to three imperatives: energy saving, achieved thanks to light "only where needed"; visual comfort, guaranteed by reduced levels of glare and intrusive light; versatility, met with a set of lighting solutions to adapt to the heterogeneity of existing plants. In new projects, an optimised inter distance allows fewer devices to be used, thus reducing installation, maintenance, and operating costs. The series meets the needs of the future cities through NEMA and Zhaga protocols, interfaces for wireless remote control systems, opening to all future developments of the Internet of Things (IoT) and connected cities. In this way, each public administration can use its management system and platforms to anticipate further developments in smart cities.


KREOS | Design by PERFORMANCE iN LIGHTING

1 / 6

KREOS | Range

KREOS


L 536 H 300 D 80,5 mm

KREOS | Presentation

Street light series. Fixtures consist of:

Construction
- Die-cast aluminium housing and cap, chemical pre-treated and painted polyester powder coating ISO 9227
- Removable galvanized sheet metal gear tray
- Pure aluminium high-performance reflectors, polished, oxidised, PVD 99.99% silver treated. This treatment creates a surface with greater than 97% reflectance and iridescence- free
- High resiliency anti-ageing silicone gasket with high elastic return capacity
- Extra clear, tempered, flat glass diffuser
- Stainless steel external screws
- Painted die-cast aluminium pole-top adaptor for pole Ø 60 / 76 mm

Electrical
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV
- NEMA versions are complete with NEMA SOCKET connected to DALI drivers and a waterproof short-circuit cap allowing the on-off operation of the luminaire. These versions are designed for mounting SMART-compatible solutions
- The ZHAGA versions are complete with ZHAGA SOCKET positioned on the upper part of the fixture (UP position) and D4i driver. They are installation ready for "Radio Frequency node" solutions, twilight sensors and other types of compatible sensors.

Installation
- Switch splitter automatically disconnects the power supply when the cable cover is opened
- Die-cast aluminium retaining clip with stainless steel spring allows quick and tool-free access to the fixture for extraordinary maintenance
- Complete with 1 meter H07RN-F 2x1.5 mm2 or H07RN-F 4x1.5 mm2 cable for dimmable versions, which allows connection to the mains without opening the luminaire
- Suitable for pole-tops Ø 60 / 76 mm.

Variants
- For other colour temperatures and different colour rendering index consult factory
- CLO (Constant light output) option available. Consult factory
- DALI-2 (IEC 62386) dimmable ballast available. Consult factory
- Upon request, fixtures can be provided with ZHAGA SOCKET positioned in the lower part of the fixture (DOWN position) or mixed (UP position + DOWN position) to be able to connect presence and/or motion detectors or combined solutions.



Listings
- CE
- EAC
- RCM
- ENEC pending
- Complies with CAM for public lighting fixtures
- Made in Italy

Warranty
- 5-year limited warranty. Complete warranty terms located at www.performanceinlighting.com
- Registered trademark ®
- Registered design ®

KREOS | Features

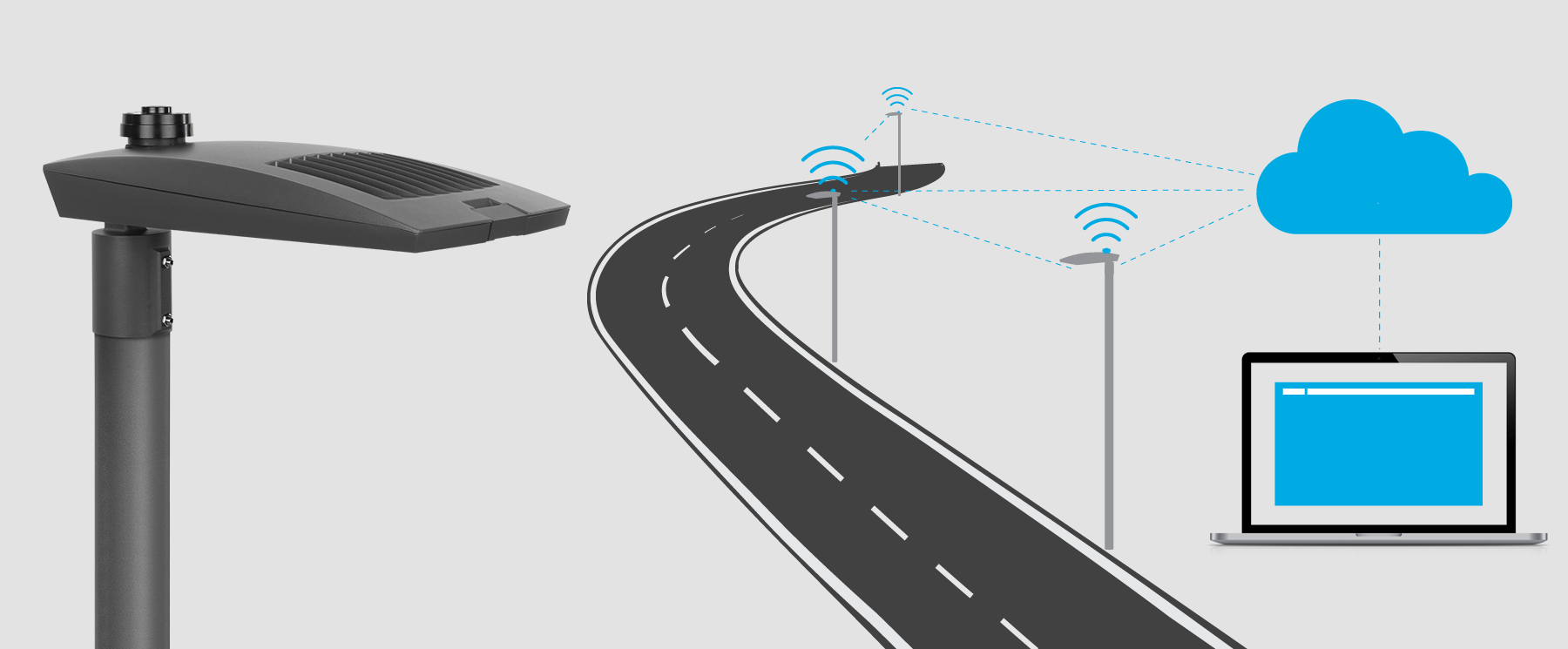

NEMA SOCKET
NEMA versions are complete with NEMA SOCKET connected to DALI dimmer capable drivers and a watertight short-circuit cap that allows the on-off operation of the luminaire. These versions are designed for mounting SMART-compatible solutions.

ZHAGA SOCKET
The ZHAGA versions are complete with ZHAGA SOCKET positioned on the upper part of the fixture (UP position) and D4i driver. They are installation ready for "Radio Frequency node" solutions, twilight sensors and other types of compatible sensors.

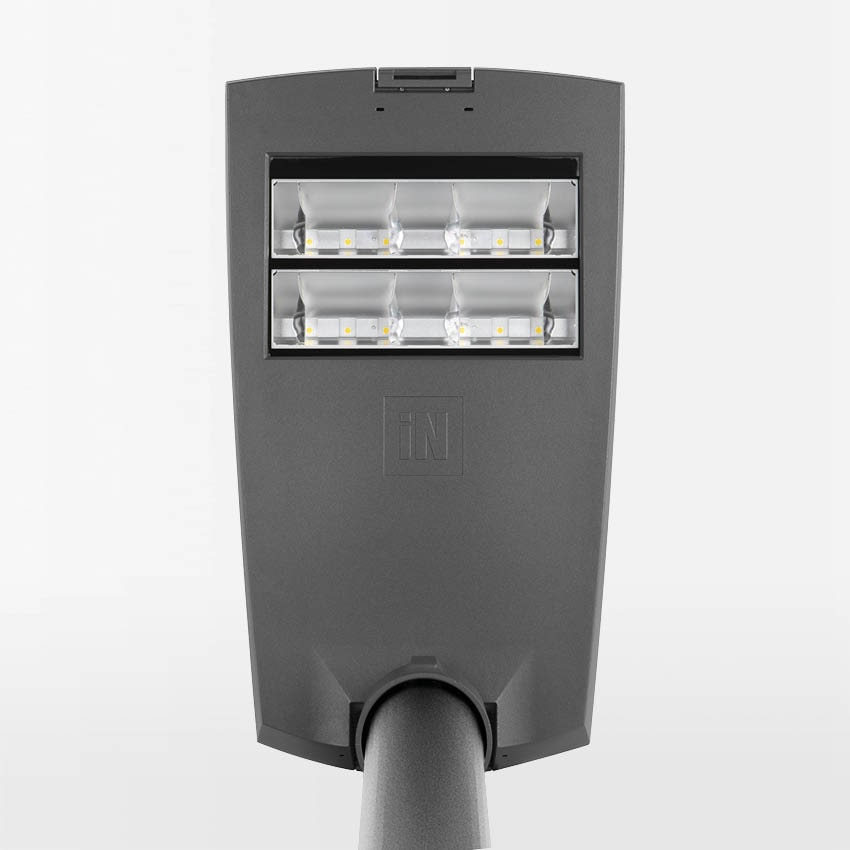

Very high performance reflectors made of very pure aluminium, polished and oxidised with successive PVD 99.99% silver treatment. This creates a surface with greater than 97% reflectance and free of iridescence.

Flat extra clear tempered glass diffuser.

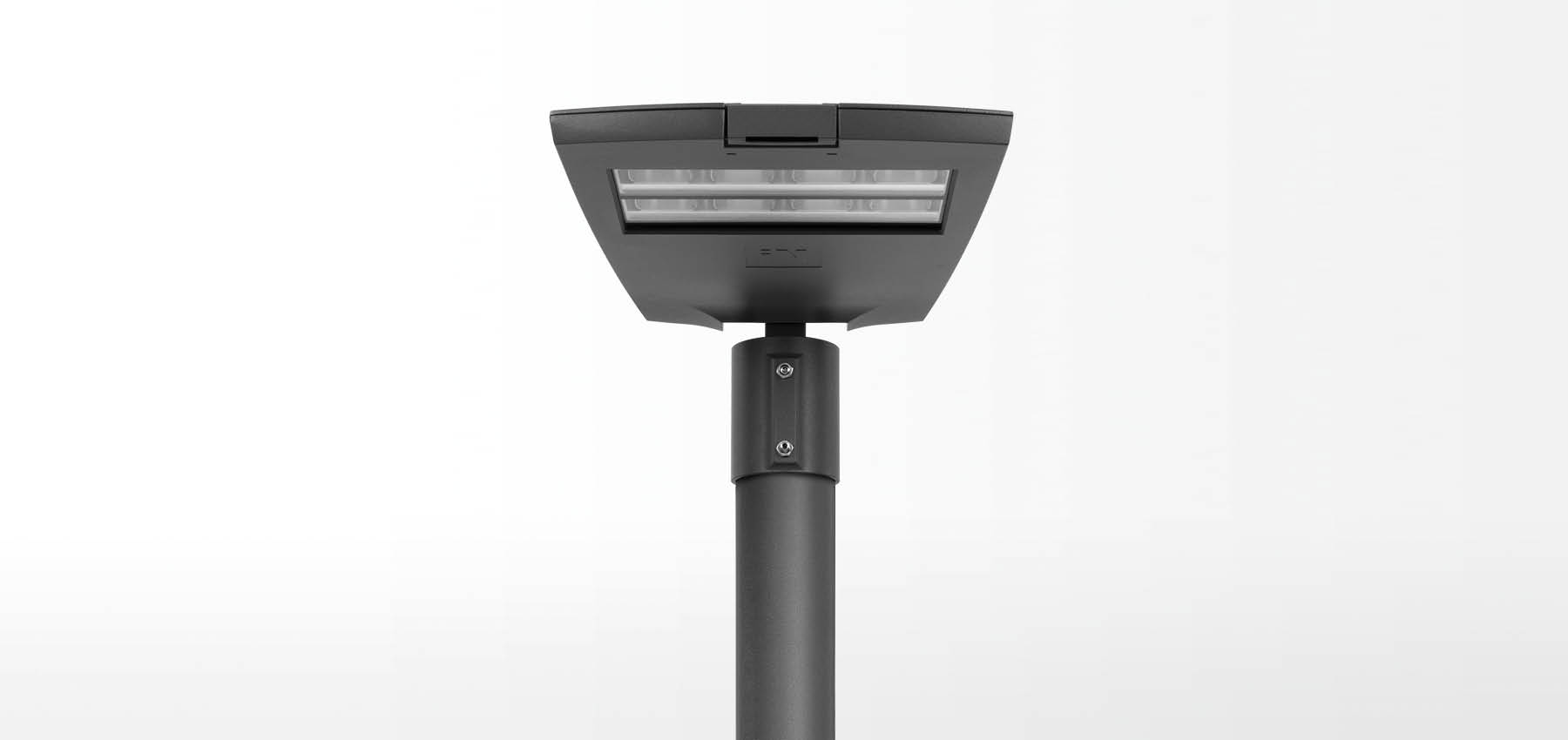

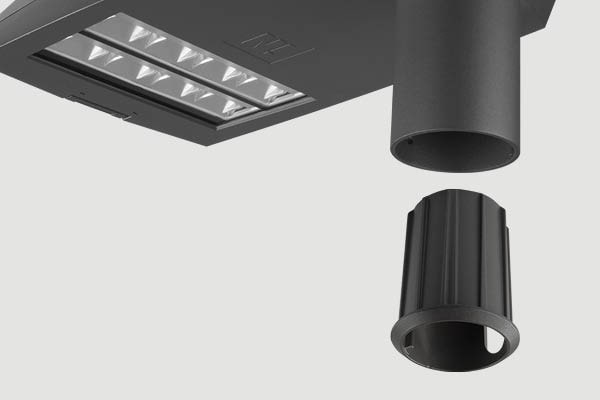

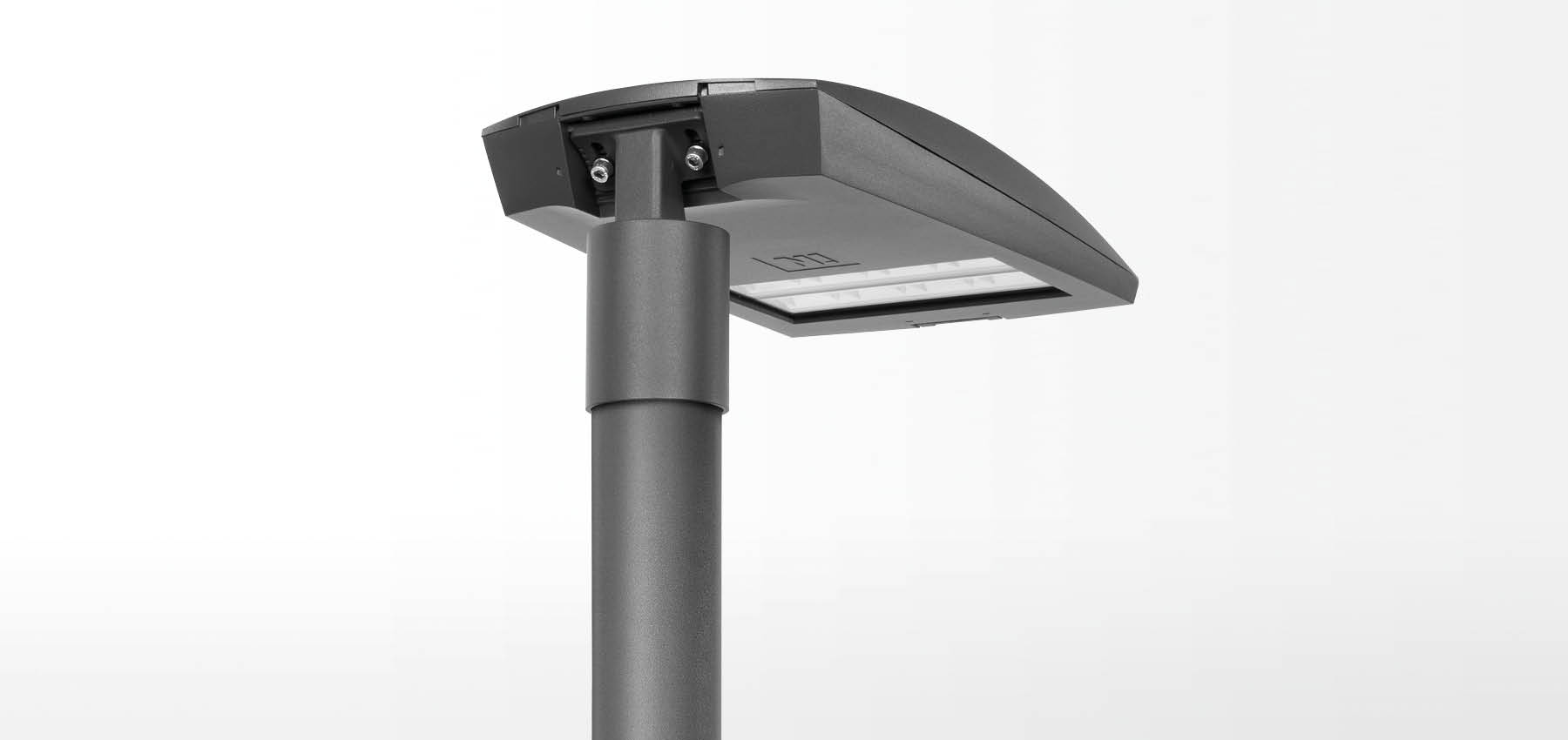

Painted die-cast aluminium pole-mounting joint for pole Ø 60 mm or 76 mm.

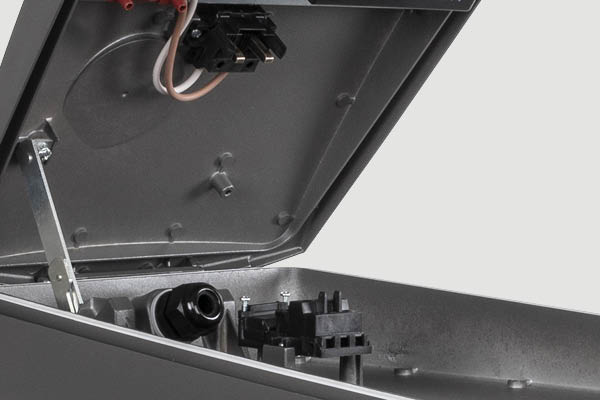

Automatic line isolator switch that cuts off power supply when ring is opened.

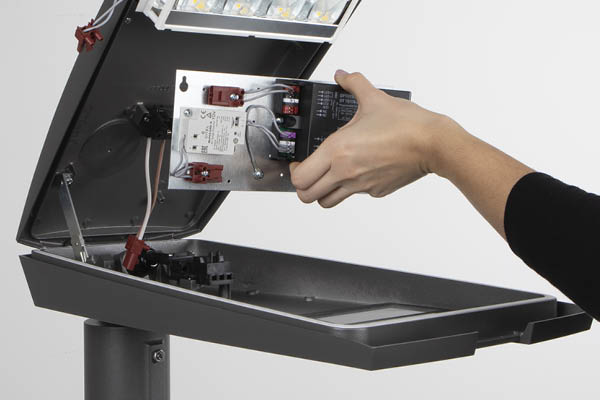

Removeable component support in galvanized sheet metal.

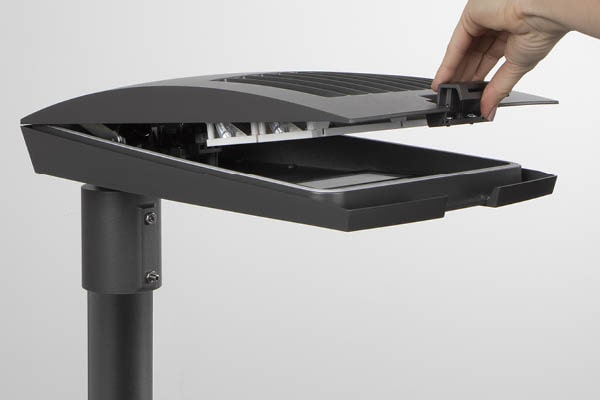

Complete with attached die-cast aluminum clip with stainless steel spring that allows quick and tool-free access to the fixture for maintenance.

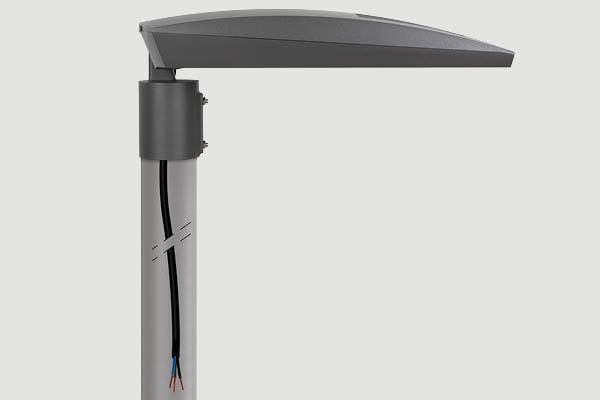

Complete with 1 meter H07RN-F 2x1.5 mm2 or H07RN-F 4x1.5 mm2 cable for dimmable versions, which allows connection to the network without opening the luminaire.

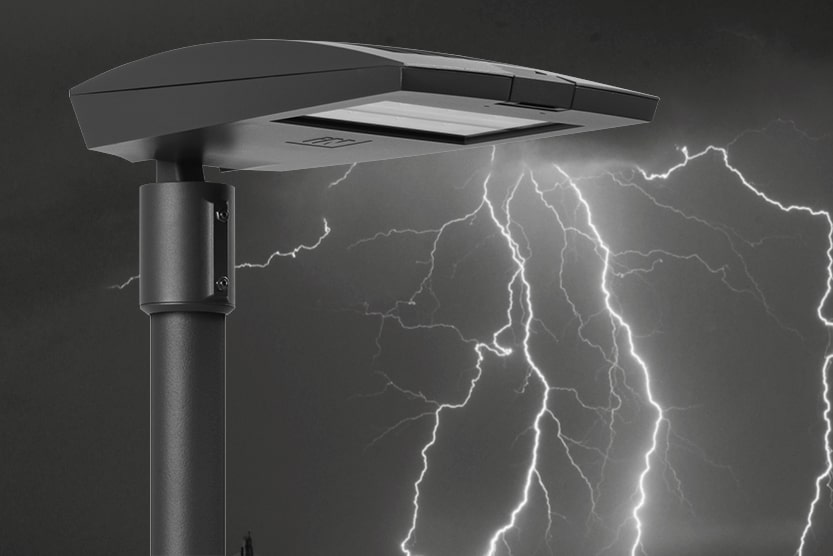

Complete with supplementary device for protection against network surges of up to 10 kV (DM).

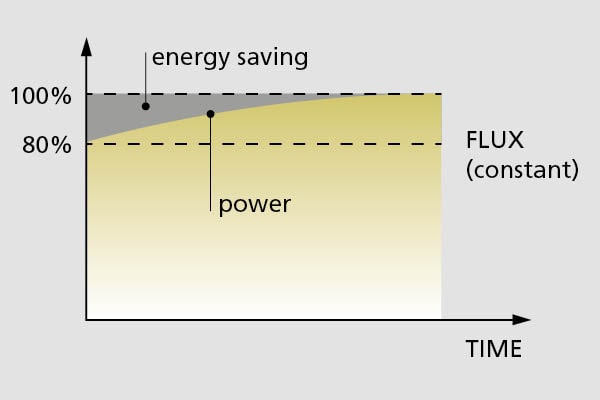

CLO (Constant light output) option available. Consult Factory.

KREOS | Optics

For road optics, PERFORMANCE iN LIGHTING identifies the optics that have a very broad beam spread on the % plane (usually greater than 120°), with the point of maximum emission on one of the adjacent planes to the latter, up to a maximum of 45°.

Road lighting based on L/H ratio that can be found in road lighting systems, where:
- L: distance between the optical axes of the luminaire and the part of the area furthest from it with its own requirements
- H: height of installation of the luminaire

EXAMPLE
Acronym of the road optics based on the L/H ratio: R/xxx where:
R = road
xxx = L/H value (e.g. 100 = 1.00)
For example: R/075, R/100

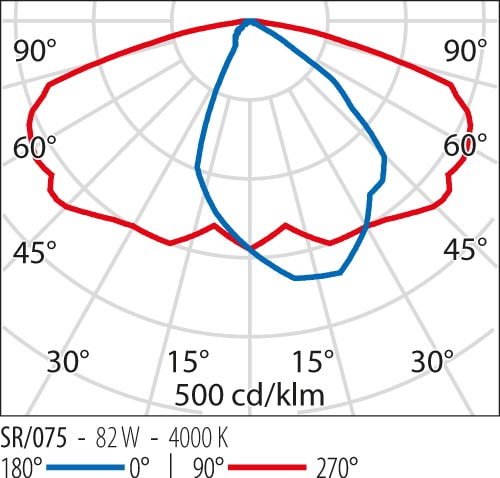

SR/075
Optic for L/H fino up to 0,75
(0,5 ≤ L/H ≤ 0,875)

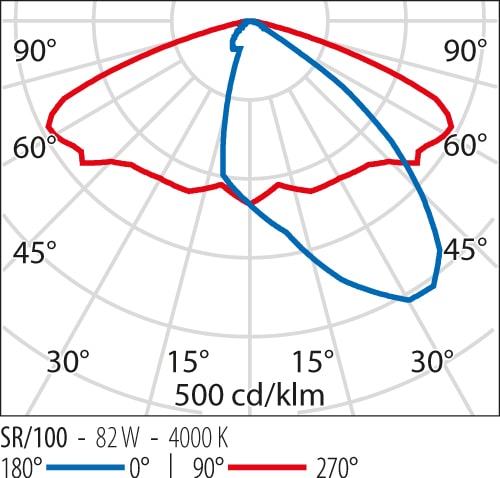

SR/100
Optic for L/H pari of 1
(0,875 ≤ L/H ≤ 1,125)

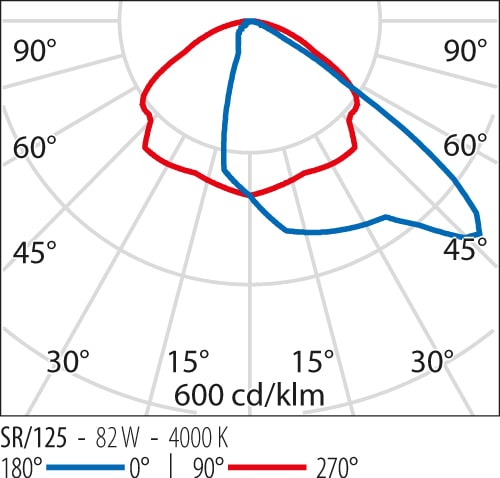

SR/125
Optic for L/H pari of 1,25
(1,125 ≤ L/H ≤ 1,375)

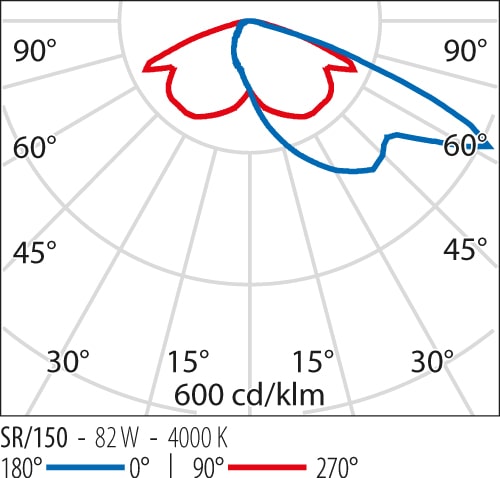

SR/150
Optic for L/H pari of 1,5
(1,375 ≤ L/H ≤ 1,625)

KREOS | Inspirations and versatility of use
