OTR TRACKS RAILS STANDARD
OTR TRACKS RAILS STANDARD - 1

OTR TRACKS RAILS STANDARD

Part number 310898
  • The track system with 3 switches is a complete installation system designed for stores, hypermarkets, public facilities, museums
  • - All designs can be easily implemented, and assembly is facilitated by the use of tracks and standard accessories
  • - Designed for exposed, recessed or suspension installation, and the luminaires can be easily moved, changed or modified
  • - The indication “earthing conductor on the right, left, inside or outside” for power supply units, corner and T- derivations are based on the earthing conductor's position on the track. The position of the earthing conductor on the track depends on the visual direction. The visual direction follows the operating direction of the system on the cross cup of the track that opens downwards
  • - Compatible with 3F “standard” adaptors that do not use DIM
  • - The OTR binary system is a mixed three-phase system with two additional conductors for the management of any signal (e.g. DIM 1-10 V, DALI, DMX, LON, EIB, etc)

Product data

ETIM Group:
EG000030
ETIM Class:
EC000101

General information

Light source:
Colour /
Finishing:
GR-94 / Metallic grey / Textured
Optic:
-
Net weight [kg]:
4.24
Overall length [mm]:
4000
Overall width [mm]:
31
Overall height [mm]:
38

Installation

Application area:
Indoor
Mounting type:
Track lights
Min. ambient temperature [°C]:
0

Light features

Technical drawings

Mandatory accessories

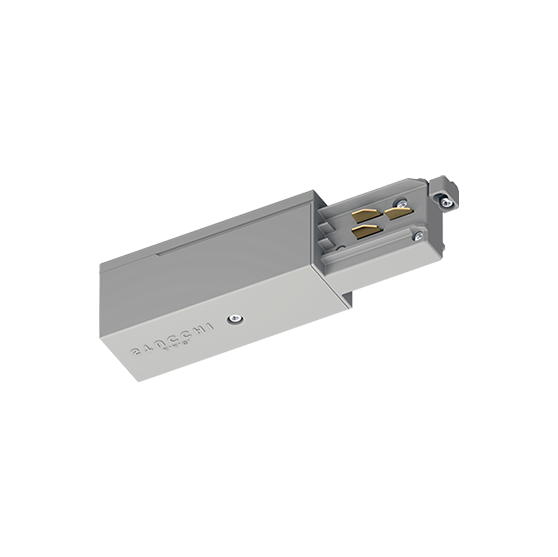

9001 - OTR END - FEED RIGHT

Part number Colour /
Finishing		 Description Downloads
Feeder - L - right mechanical wrench / left grounding
310755
Feeder - L - right mechanical wrench / left grounding

9002 - OTR END - FEED LEFT

Part number Colour /
Finishing		 Description Downloads
Feeder - R - right mechanical wrench / right grounding
310756
Feeder - R - right mechanical wrench / right grounding

9003 - OTR TK CONNECTOR

Part number Colour /
Finishing		 Description Downloads
Through joint
310712
Through joint

9003-M - OTR TK CONNECTOR ONLY MECHA

Part number Colour /
Finishing		 Description Downloads

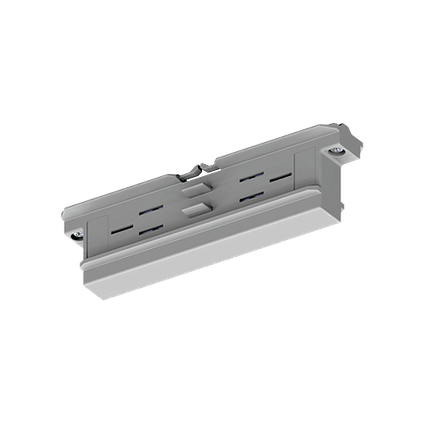

Insulating connection
310666
Insulating connection

9010 - OTR MIDDLE-FEED

Part number Colour /
Finishing		 Description Downloads
Direct joint
310821
Direct joint

9018 - OTR FLEXIBLE CORNER

Part number Colour /
Finishing		 Description Downloads
Flexible joint
310848
Flexible joint

9011 - OTR L - FEED INT

Part number Colour /
Finishing		 Description Downloads
L-shaped joint - internal mechanical wrench / external grounding
310825
L-shaped joint - internal mechanical wrench / external grounding

9012 - OTR L - FEED EXT

Part number Colour /
Finishing		 Description Downloads
L-shaped joint - external mechanical wrench / internal grounding
310826
L-shaped joint - external mechanical wrench / internal grounding

9013 - OTR T - FEED EXT LEFT

Part number Colour /
Finishing		 Description Downloads
T-shaped joint - left mechanical wrench / right grounding
310854
T-shaped joint - left mechanical wrench / right grounding

9014 - OTR T - FEED EXT RIGHT

Part number Colour /
Finishing		 Description Downloads
T-shaped joint - right external mechanical wrench / left internal grounding
310855
T-shaped joint - right external mechanical wrench / left internal grounding

9015 - OTR T - FEED INT LEFT

Part number Colour /
Finishing		 Description Downloads
T-shaped joint - left internal mechanical wrench / right external grounding
310856
T-shaped joint - left internal mechanical wrench / right external grounding

9016 - OTR T - FEED INT RIGHT

Part number Colour /
Finishing		 Description Downloads
T-shaped joint - right internal mechanical wrench / left external grounding
310857
T-shaped joint - right internal mechanical wrench / left external grounding

9017 - OTR X - FEED

Part number Colour /
Finishing		 Description Downloads
X-shaped joint
310875
X-shaped joint

9004

Part number Colour /
Finishing		 Description Downloads
Closing cap with locking screw
310615
Closing cap with locking screw

9000/H

Part number Colour /
Finishing		 Description Downloads
Suspension hook
310629
Suspension hook

S-9000/GP

Part number Colour /
Finishing		 Description Downloads
Additional protective sheath (1 m)
310636
Additional protective sheath (1 m)

9000/TP

Part number Colour /
Finishing		 Description Downloads
Additional protective cap for track slots
310621
Additional protective cap for track slots

S-9000/113

Part number Colour /
Finishing		 Description Downloads
Short suspension clamp (40 mm)
310645
Short suspension clamp (40 mm)

S-9000/123

Part number Colour /
Finishing		 Description Downloads
Long suspension clamp for use with through joint (100 mm)
310715
Long suspension clamp for use with through joint (100 mm)

S-9000/313

Part number Colour /
Finishing		 Description Downloads
Short suspension clamp (25 mm)
310646
Short suspension clamp (25 mm)

S-9000/333

Part number Colour /
Finishing		 Description Downloads
Long suspension clamp (180 mm)
310716
Long suspension clamp (180 mm)

S-9000/131

Part number Colour /
Finishing		 Description Downloads
Ceiling-mounting clamp
310682
Ceiling-mounting clamp

S-9000/132

Part number Colour /
Finishing		 Description Downloads
Ceiling-mounting clamp for suspensions
310642
Ceiling-mounting clamp for suspensions

9000/231

Part number Colour /
Finishing		 Description Downloads
Clamp with automatic tensioner
310740
Clamp with automatic tensioner

9000/312-LA

Part number Colour /
Finishing		 Description Downloads
Short suspension clamp with hole for automatic tensioner (35 mm)
311047
Short suspension clamp with hole for automatic tensioner (35 mm)

9000/312-SV

Part number Colour /
Finishing		 Description Downloads
Short suspension clamp with hole for cable with ball terminal (35 mm)
311050
Short suspension clamp with hole for cable with ball terminal (35 mm)

9000/322-LA

Part number Colour /
Finishing		 Description Downloads
Medium suspension clamp with hole for automatic tensioner (100 mm)
311053
Medium suspension clamp with hole for automatic tensioner (100 mm)

9000/322-SV

Part number Colour /
Finishing		 Description Downloads
Medium suspension clamp with hole for cable with ball terminal (100 mm)
311056
Medium suspension clamp with hole for cable with ball terminal (100 mm)

9000/332-LA

Part number Colour /
Finishing		 Description Downloads
Long suspension clamp with hole for automatic tensioner for use with through joint (180 mm)
311076
Long suspension clamp with hole for automatic tensioner for use with through joint (180 mm)

9000/332-SV

Part number Colour /
Finishing		 Description Downloads
Long suspension clamp with hole for cable with ball terminal for use with through joint (180 mm)
310739
Long suspension clamp with hole for cable with ball terminal for use with through joint (180 mm)

S-9000/111

Part number Colour /
Finishing		 Description Downloads
Steel clip for mounting on ceiling
310625
Steel clip for mounting on ceiling

S-9000/114-T

Part number Colour /
Finishing		 Description Downloads
Clip with automatic tensioner for quick mounting
310743
Clip with automatic tensioner for quick mounting

S-9000/115

Part number Colour /
Finishing		 Description Downloads
Clip for quick mounting
310650
Clip for quick mounting

S-9000/116

Part number Colour /
Finishing		 Description Downloads
Clamp with automatic tensioner
310699
Clamp with automatic tensioner

S-9000/118

Part number Colour /
Finishing		 Description Downloads
Clip for quick mounting with M6 tensioner
310695
Clip for quick mounting with M6 tensioner

S-9000/5

Part number Colour /
Finishing		 Description Downloads

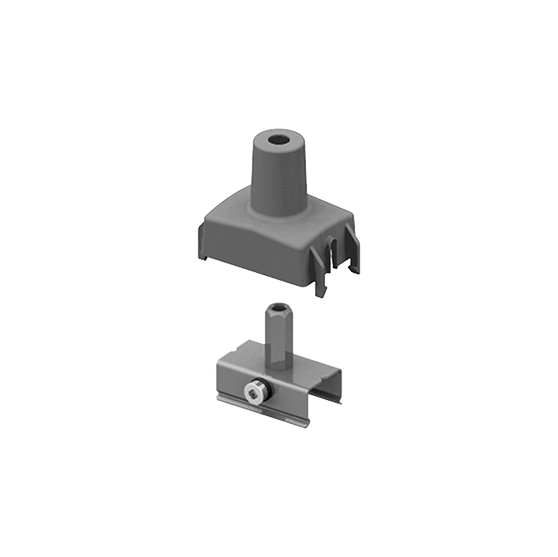

Plastic cover for clips and clamps
310612
Plastic cover for clips and clamps

9000/211

Part number Colour /
Finishing		 Description Downloads
Steel cable (Ø 1.5 mm - 1.5 m length)
310634
Steel cable (Ø 1.5 mm - 1.5 m length)
Steel cable (Ø 1.5 mm - 2 m length)
310643
Steel cable (Ø 1.5 mm - 2 m length)
Steel cable (Ø 1.5 mm - 3 m length)
310657
Steel cable (Ø 1.5 mm - 3 m length)
Steel cable (Ø 1.5 mm - 5 m length)
310718
Steel cable (Ø 1.5 mm - 5 m length)

9000/211-S

Part number Colour /
Finishing		 Description Downloads
Steel cable (Ø 1.5 mm - 1.5 m length) with ball terminal
310647
Steel cable (Ø 1.5 mm - 1.5 m length) with ball terminal
Steel cable (Ø 1.5 mm - 2 m length) with ball terminal
310658
Steel cable (Ø 1.5 mm - 2 m length) with ball terminal
Steel cable (Ø 1.5 mm - 3 m length) with ball terminal
310668
Steel cable (Ø 1.5 mm - 3 m length) with ball terminal
Steel cable (Ø 1.5 mm - 5 m length) with ball terminal
310726
Steel cable (Ø 1.5 mm - 5 m length) with ball terminal
Steel cable (Ø 1.5 mm - 6 m length) with ball terminal
310741
Steel cable (Ø 1.5 mm - 6 m length) with ball terminal

9000/218

Part number Colour /
Finishing		 Description Downloads
M5 automatic tensioner with lateral hole, in chromed brass
310665
M5 automatic tensioner with lateral hole, in chromed brass

9000/213

Part number Colour /
Finishing		 Description Downloads
Automatic hook tensioner, in nickel-plated brass
310671
Automatic hook tensioner, in nickel-plated brass

9000/214

Part number Colour /
Finishing		 Description Downloads
Automatic locking tensioner, in nickel-plated brass
310693
Automatic locking tensioner, in nickel-plated brass

9000/215

Part number Colour /
Finishing		 Description Downloads
Screw tensioner, in nickel-plated brass
310619
Screw tensioner, in nickel-plated brass

9000-KIT2 - 1,5 m

Part number Colour /
Finishing		 Description Downloads
Bracket for mounting on ceiling, screw tensioner, plastic ceiling rose, Ø 1.5 mm 1.5 m-long steel cable with ball end, clip for quick mounting
310777
Bracket for mounting on ceiling, screw tensioner, plastic ceiling rose, Ø 1.5 mm 1.5 m-long steel cable with ball end, clip for quick mounting

9000-KIT2 - 3 m

Part number Colour /
Finishing		 Description Downloads
Ceiling-mounting bracket, screw tensioner, plastic ceiling rose, Ø 1.5 mm 3 m-long steel cable with ball end, clip for quick mounting
310786
Ceiling-mounting bracket, screw tensioner, plastic ceiling rose, Ø 1.5 mm 3 m-long steel cable with ball end, clip for quick mounting

9000-KIT2 - 5 m

Part number Colour /
Finishing		 Description Downloads
Bracket for mounting on ceiling, screw tensioner, plastic ceiling rose, Ø 1.5 mm 5 m-long steel cable with ball end, clip for quick mounting
310812
Bracket for mounting on ceiling, screw tensioner, plastic ceiling rose, Ø 1.5 mm 5 m-long steel cable with ball end, clip for quick mounting

9000-KIT4 - 1,5 m

Part number Colour /
Finishing		 Description Downloads
Metal ball ceiling rose with hole, Ø 1.5 mm 1.5 m-long steel cable with ball end, with automatic tensioner
310801
Metal ball ceiling rose with hole, Ø 1.5 mm 1.5 m-long steel cable with ball end, with automatic tensioner

9000-KIT4 - 3 m

Part number Colour /
Finishing		 Description Downloads
Metal ball ceiling rose with hole, Ø 1.5 mm 3 m-long steel cable with ball end, with automatic tensioner
310805
Metal ball ceiling rose with hole, Ø 1.5 mm 3 m-long steel cable with ball end, with automatic tensioner

9000-KIT4 - 5 m

Part number Colour /
Finishing		 Description Downloads
Metal ball ceiling rose with hole, Ø 1.5 mm 5 m-long steel cable with ball end, with automatic tensioner
310831
Metal ball ceiling rose with hole, Ø 1.5 mm 5 m-long steel cable with ball end, with automatic tensioner

9000-KIT6 - 1,5 m

Part number Colour /
Finishing		 Description Downloads
Screw tensioner, plastic ceiling rose, Ø 1.5 mm 1.5 m-long steel cable with ball end, bracket with milled hole and automatic tensioner
310780
Screw tensioner, plastic ceiling rose, Ø 1.5 mm 1.5 m-long steel cable with ball end, bracket with milled hole and automatic tensioner

9000-KIT6 - 3 m

Part number Colour /
Finishing		 Description Downloads
Screw tensioner, plastic ceiling rose, Ø 1.5 mm 3 m-long steel cable with ball end, bracket with milled hole and automatic tensioner
310793
Screw tensioner, plastic ceiling rose, Ø 1.5 mm 3 m-long steel cable with ball end, bracket with milled hole and automatic tensioner

9000-KIT6 - 5 m

Part number Colour /
Finishing		 Description Downloads
Screw tensioner, plastic ceiling rose, Ø 1.5 mm 5 m-long steel cable with ball end, bracket with milled hole and automatic tensioner
310809
Screw tensioner, plastic ceiling rose, Ø 1.5 mm 5 m-long steel cable with ball end, bracket with milled hole and automatic tensioner

9000-P3-KIT4 - 1 m

Part number Colour /
Finishing		 Description Downloads
Bracket for mounting on ceiling, M6 nut, plastic ceiling rose, M6 1 m-long threaded bar with cover sheath
310769
Bracket for mounting on ceiling, M6 nut, plastic ceiling rose, M6 1 m-long threaded bar with cover sheath

9000-P2

Part number Colour /
Finishing		 Description Downloads
Bracket with M6 tensioner and plastic cover
310735
Bracket with M6 tensioner and plastic cover

9000/3

Part number Colour /
Finishing		 Description Downloads
Plastic ceiling rose for Ø 1.5 mm steel cable
310602
Plastic ceiling rose for Ø 1.5 mm steel cable

9000/4

Part number Colour /
Finishing		 Description Downloads
Plastic ceiling rose for threaded bar in M6 steel
310605
Plastic ceiling rose for threaded bar in M6 steel

9000/216

Part number Colour /
Finishing		 Description Downloads
Metal ball ceiling rose with hole
310644
Metal ball ceiling rose with hole

9009

Part number Colour /
Finishing		 Description Downloads
6-Conductor DALI adapter (3-phase + control system) (maximum load 100 N = 10.2 kg)
310750
6-Conductor DALI adapter (3-phase + control system) (maximum load 100 N = 10.2 kg)

9009-4

Part number Colour /
Finishing		 Description Downloads
4-Conductor adapter (3-phase) (maximum load 100 N = 10.2 kg)
310722
4-Conductor adapter (3-phase) (maximum load 100 N = 10.2 kg)

S-9209

Part number Colour /
Finishing		 Description Downloads

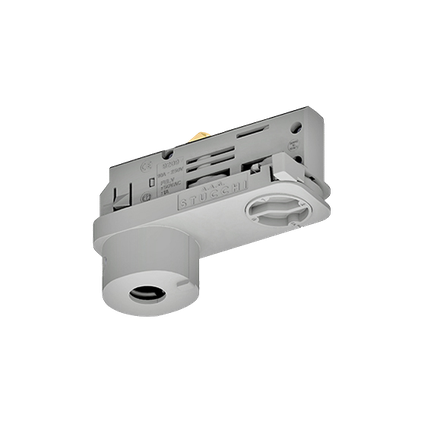

Asymmetric 6-conductor Dali adapter (3-phase + control system) (maximum load 100 N = 10.2 kg)
310760
Asymmetric 6-conductor Dali adapter (3-phase + control system) (maximum load 100 N = 10.2 kg)

9209-4

Part number Colour /
Finishing		 Description Downloads
Asymmetric 4-conductor adapter (3-phase) (maximum load 100 N = 10.2 kg)
310733
Asymmetric 4-conductor adapter (3-phase) (maximum load 100 N = 10.2 kg)

9409-4

Part number Colour /
Finishing		 Description Downloads
Asymmetric 4-conductor adapter (3-phase) (maximum load 50 N = 5.1 kg)
311059
Asymmetric 4-conductor adapter (3-phase) (maximum load 50 N = 5.1 kg)

9409-4-DRI

Part number Colour /
Finishing		 Description Downloads
Compact 4-conductor adapter with integrated driver (3-phase) (100-850 mA - max. 40 VDC)
311062
Compact 4-conductor adapter with integrated driver (3-phase) (100-850 mA - max. 40 VDC)

9000/BP-D

Part number Colour /
Finishing		 Description Downloads
Adapter ceiling-mounting base (without using the track)
310844
Adapter ceiling-mounting base (without using the track)

9000/BR

Part number Colour /
Finishing		 Description Downloads
Adapter suspended ceiling-mounting base (without using the track)
310829
Adapter suspended ceiling-mounting base (without using the track)

S-9000/M

Part number Colour /
Finishing		 Description Downloads
Mechanical adapter
310677
Mechanical adapter

S-9000/BC

Part number Colour /
Finishing		 Description Downloads
External cable clamp with plastic grub screw
310623
External cable clamp with plastic grub screw

S-9000/D

Part number Colour /
Finishing		 Description Downloads
Nut for M10 connector
310609
Nut for M10 connector
Nut for M13 connector
310610
Nut for M13 connector

9009/IP40

Part number Colour /
Finishing		 Description Downloads
IP40 Housing for symmetrical adapter
310590
IP40 Housing for symmetrical adapter

S-9000

Part number Colour /
Finishing		 Description Downloads
Aluminium M10 connector for adapter
310638
Aluminium M10 connector for adapter
Aluminium M13 connector for adapter
310639
Aluminium M13 connector for adapter

S-9000/SC

Part number Colour /
Finishing		 Description Downloads
Aluminium M10 connector without collar for adapter
310662
Aluminium M10 connector without collar for adapter
Aluminium M13 connector without collar for adapter
310663
Aluminium M13 connector without collar for adapter

S-9000/FI

Part number Colour /
Finishing		 Description Downloads
Aluminium M10 connector with internal thread for adapter
310648
Aluminium M10 connector with internal thread for adapter

9009/T-INS

Part number Colour /
Finishing		 Description Downloads
Adapter wiring insert
310862
Adapter wiring insert

9009/T-HAN

Part number Colour /
Finishing		 Description Downloads
Handle for adapter wiring insert
310846
Handle for adapter wiring insert

9009/10

Part number Colour /
Finishing		 Description Downloads
Internal cable clamp for symmetrical adapter
310584
Internal cable clamp for symmetrical adapter

9009/51

Part number Colour /
Finishing		 Description Downloads
Aluminium ring with block grub screw to prevent twisting of adapter connectors
310656
Aluminium ring with block grub screw to prevent twisting of adapter connectors

9209/IP40

Part number Colour /
Finishing		 Description Downloads
IP40 Housing for asymmetrical adapter
310591
IP40 Housing for asymmetrical adapter

9209/20

Part number Colour /
Finishing		 Description Downloads
Internal cable clamp for asymmetrical adapter
310585
Internal cable clamp for asymmetrical adapter

9909/M10

Part number Colour /
Finishing		 Description Downloads
M10 Terminal for retractable adapter
310731
M10 Terminal for retractable adapter

9209-BD

Part number Colour /
Finishing		 Description Downloads
Aluminium M10 connector for LED driver box
310669
Aluminium M10 connector for LED driver box
Aluminium M13 connector for LED driver box
310670
Aluminium M13 connector for LED driver box
Products search
You can search for products in our catalog by entering here the name or the code of the product or accessory.
