AMON WALL B TYPE II + NB

Description

• Long-lasting energy-efficient wall pack series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) extruded aluminum housing and Copper-free (<1%) precision die-cast aluminum ring/faceplate, bracket (WALL versions) and mounting plate.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.
• - Single (M) or dual (B) light emission.

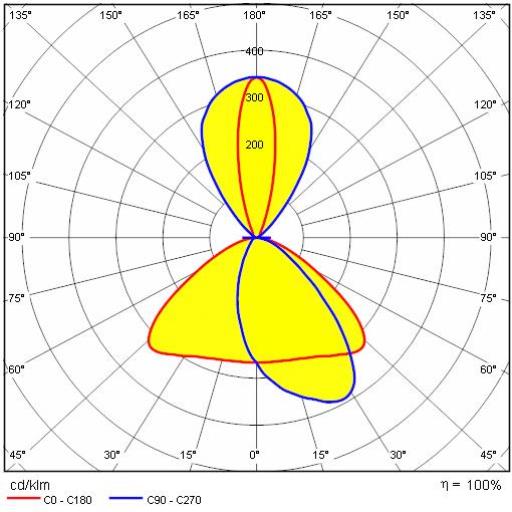

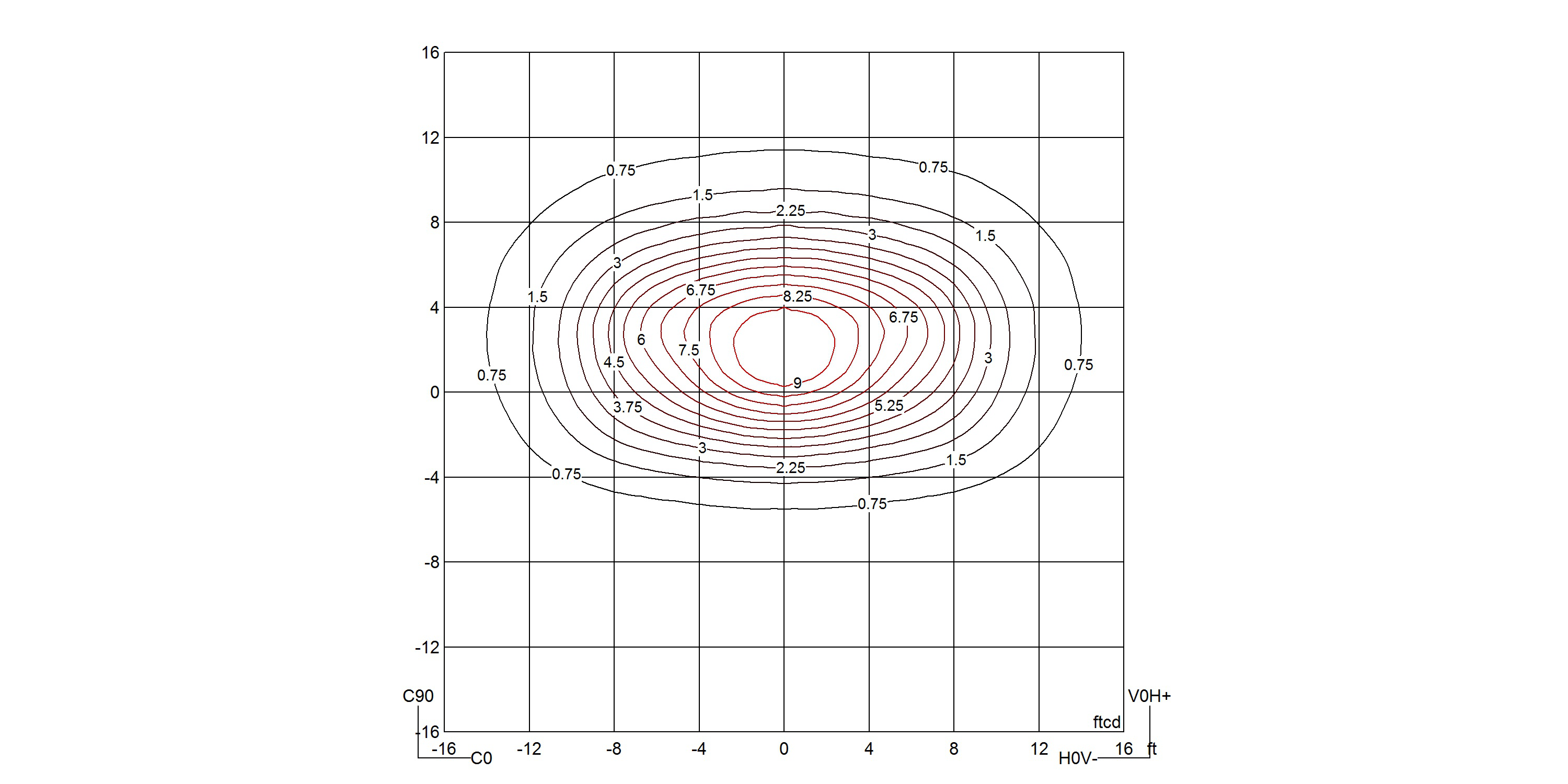

• - Type II light distribution.
• - 26° x 70° beam angle (NB).
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Standard hinged bracket for ease of installation: wiring can be completed by mounting the bracket ahead of the luminaire, then sliding luminaire onto the bracket using quick connectors system, then securing the luminaire by tightening the stainless steel set screws (WALL versions only).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
