QUASAR 60 M EMPK

Description

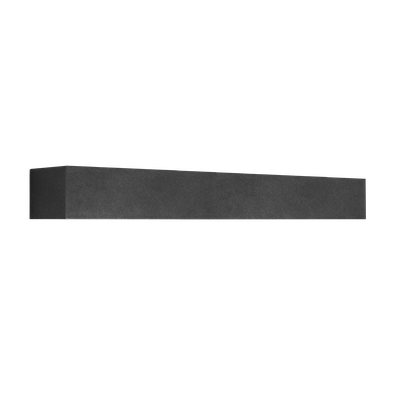

• Wall sconce series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
• - Frosted, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.

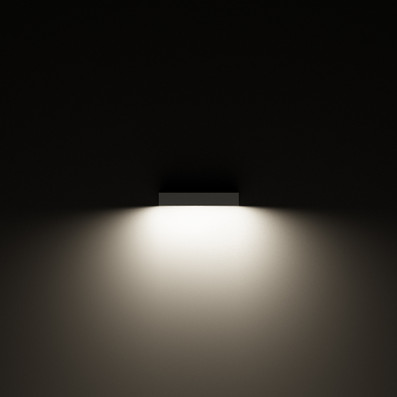

• - Single (M) or dual (B) light emission.

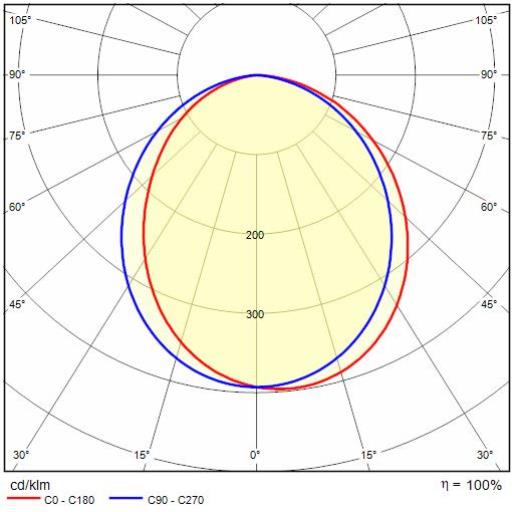

• - Type II light distribution.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Integral, emergency battery-pack designed for a minimum operation of 90 minutes (EMPK versions).

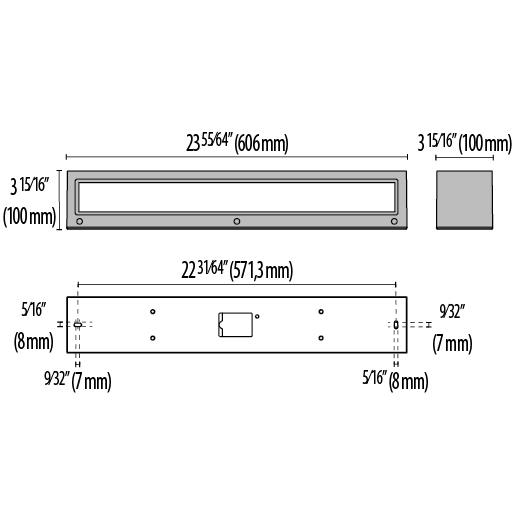

• - Junction box mounting plate included (for 4" octagon box only, provided by others).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
