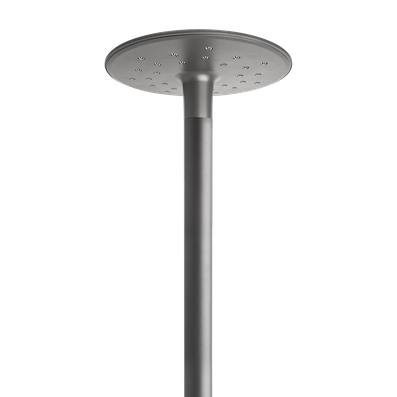

SPILLO

Description

• Area and site lighting series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and top cap.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.
• - The "Secure Light Distribution" system can bypass individual diodes in the event of a single LED failure to ensure continuous uniform light distribution.

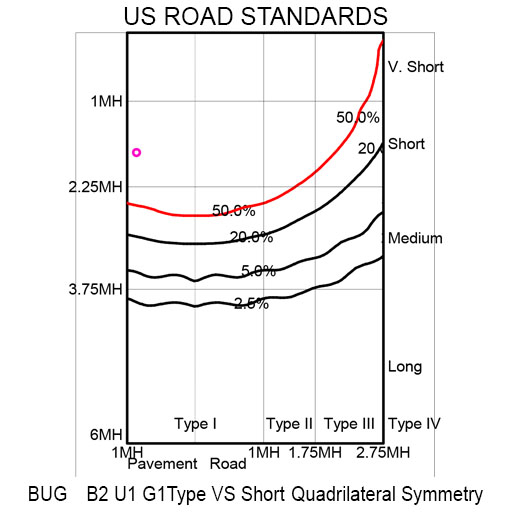

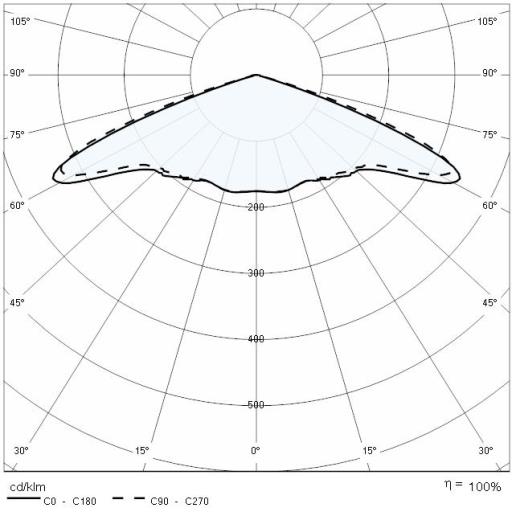

• - Type V light distribution.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Pre-wired factory sealed cable for external electrical connection included.

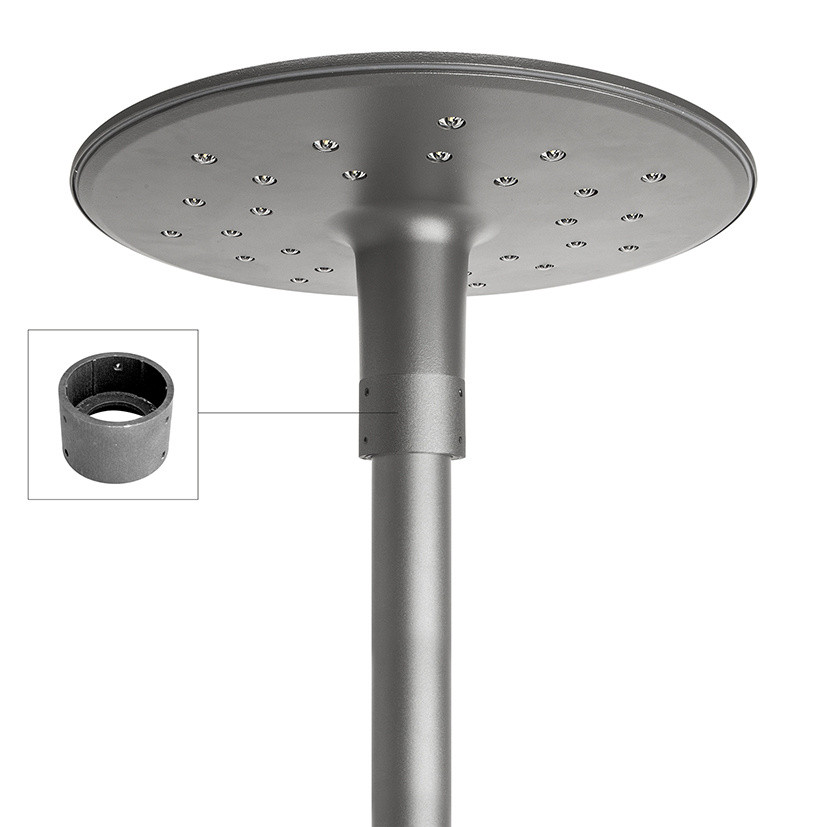

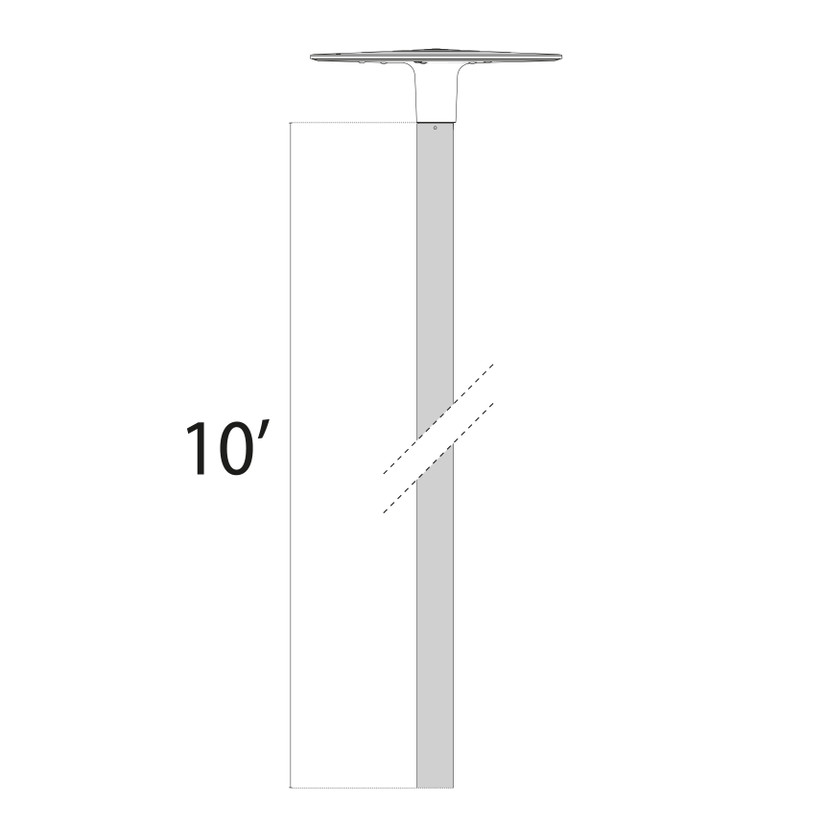

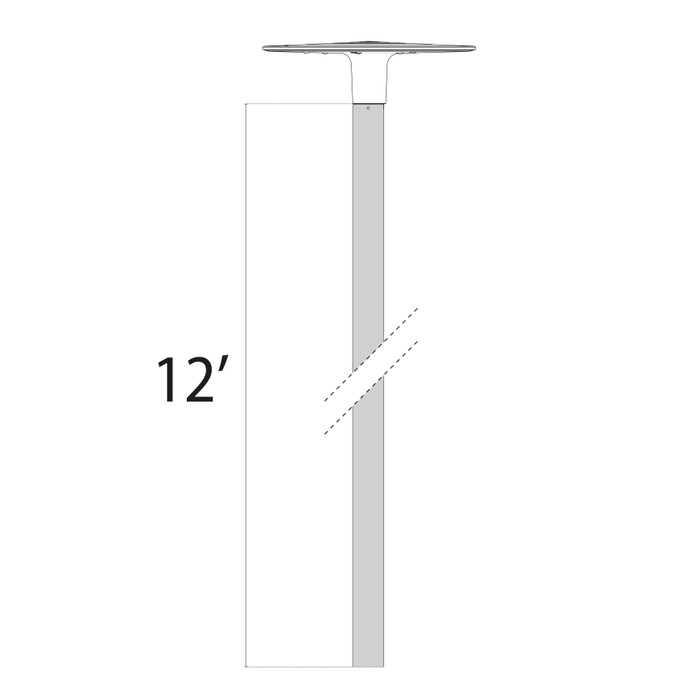

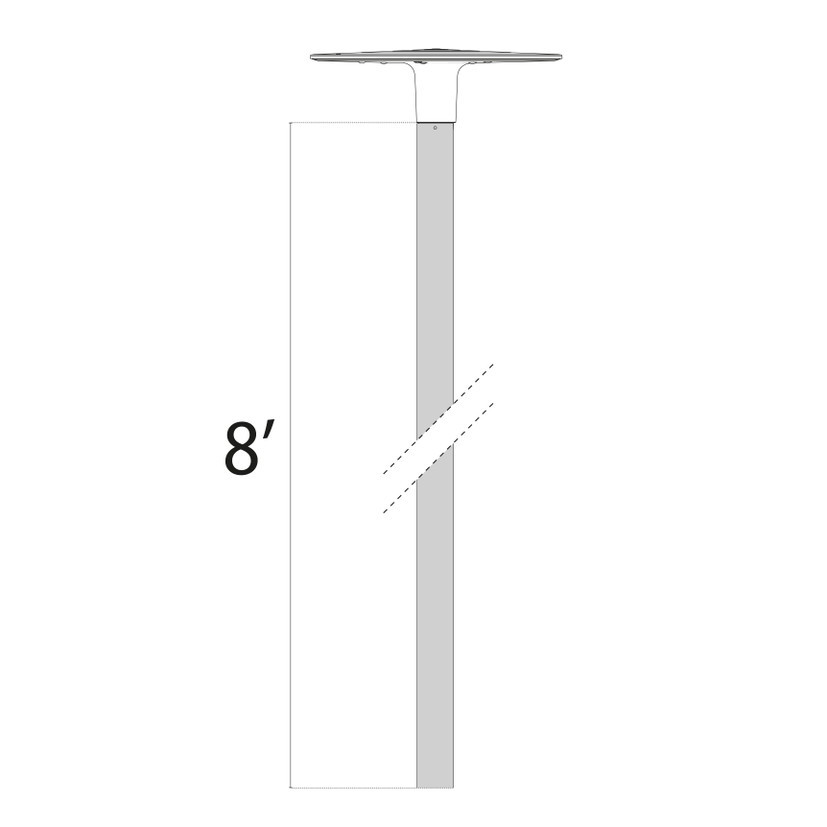

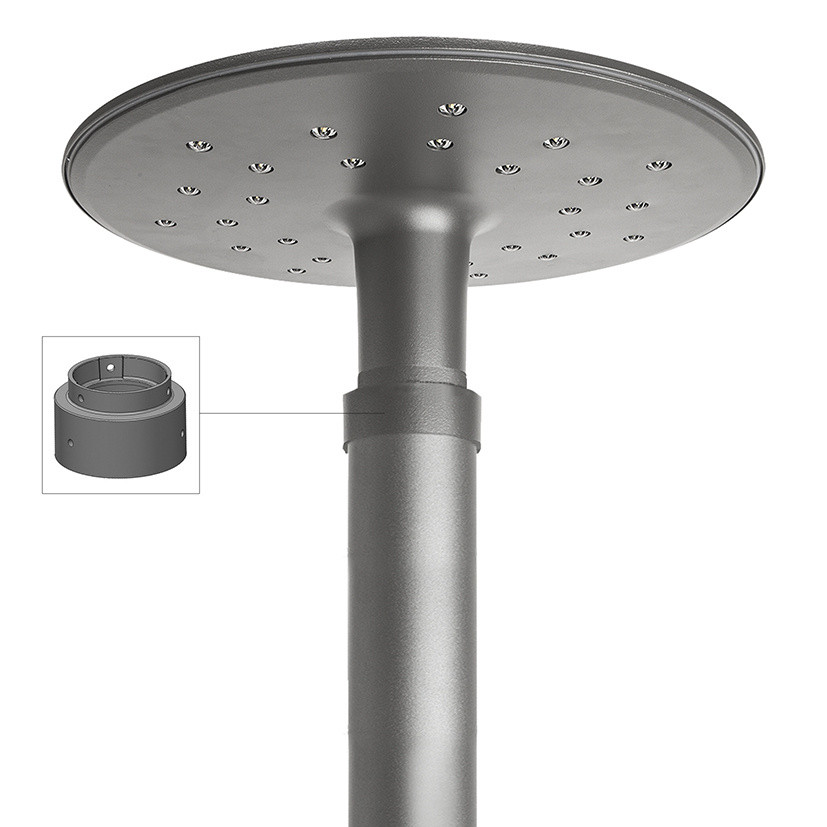

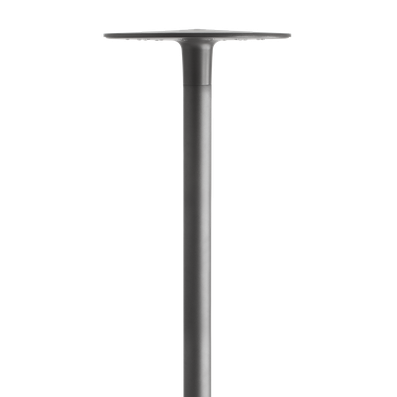

• - Ø3” and Ø4” post top adapters, and poles in 8’ / 10’ / 12 ’/ 14’ options available (ordered separately).
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
