INDEX+ 46 C/EW

Description

• Pathway bollard series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and top cap.
• - Copper-free (<1%) aluminum extruded post.
• - Clear UV-stabilized, high-impact resistant diffuser.
• - Custom molded, anti-aging gasket(s).
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.

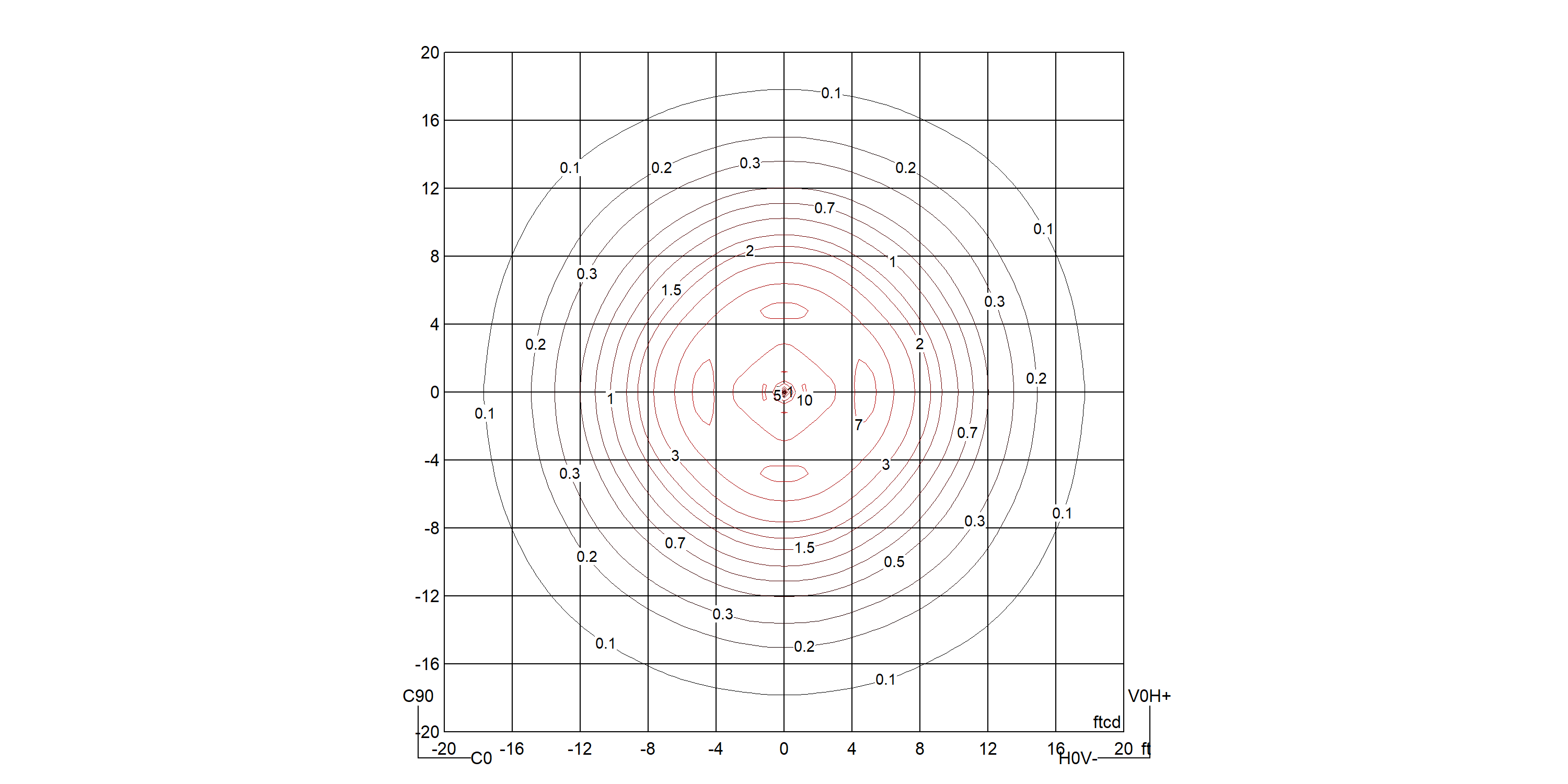

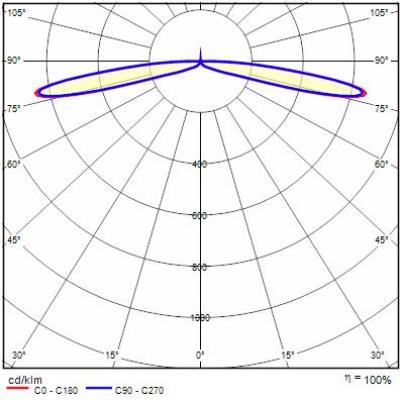

• - Type V light distribution.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Anchor bolts available for bollards (ordered separately).
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
• - Patent optical system IN SIDEIS®
