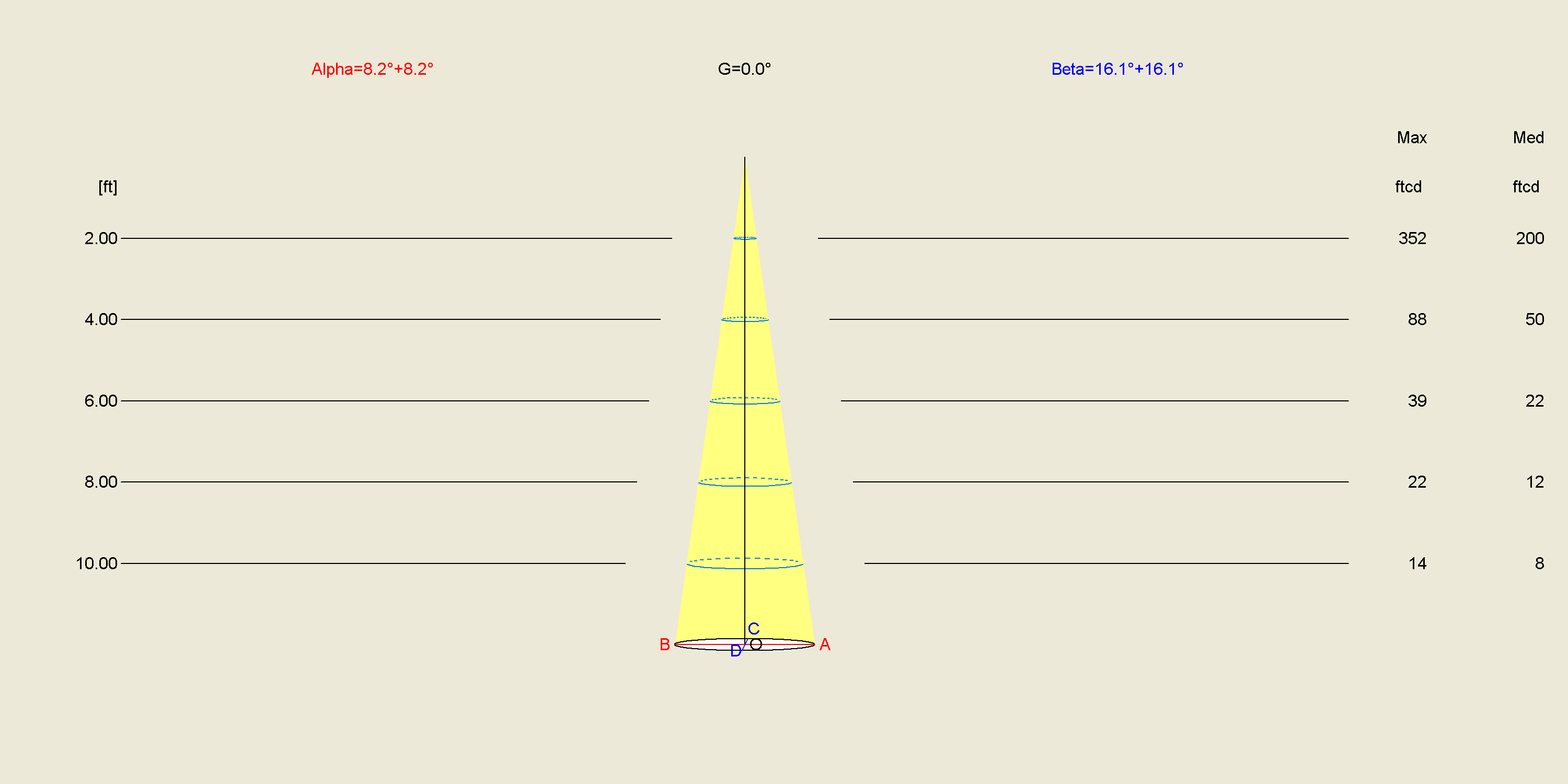

STEEL ROUND COMPACT LED ELL 10°X45°

Description

• In-ground series. Fixtures consist of:
• - Copper-free (<1%) die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel trim.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.
• - Standard aimable optic system (±7°).

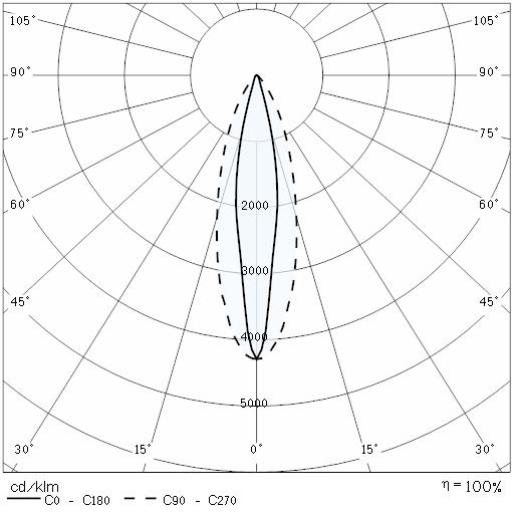

• - Elliptical optics (ELL).
• - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
• - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
• - COMPACT reduced depth rough-in comes with formed steel bars to provide support in drive-over applications and is designed to encourage water drainage.
• - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
• - Standard easy-to-adjust mounting system that enables the fixture to be easily aimed even after installation.
• - Thermoplastic compression-molded rough-in kit to be ordered separately.
• - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
