KHA CITY COMFORT 24 TYPE III

Description

• Pathway bollard series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing and top cap.
• - Copper-free (<1%) aluminum extruded post.
• - Corrosion-resistant AISI 316 stainless steel post and top cap.
• - Clear UV-stabilized, high-impact resistant diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
• - Black aluminum reflector provides full-cutoff, no glare design, and precision optical control (COMFORT options).
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.

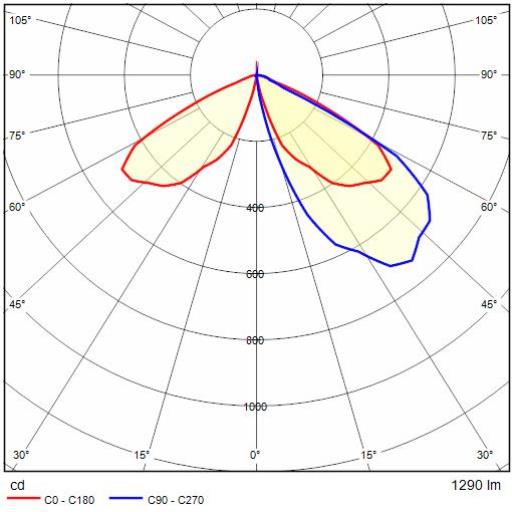

• - Type III light distribution.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Concrete installation fixing rods available (ordered separately).
• - Bolt-on root galvanized steel direct burial or stainless steel flange plate (anchor plugs not included) floor mounting options available for all KHA CITY 24 options (ordered separately)
• - Suitable for most coastal applications (stainless steel versions).
• - Product meets Buy American Act (BAA) requirements within ARRA.
• - 5-year warranty.
