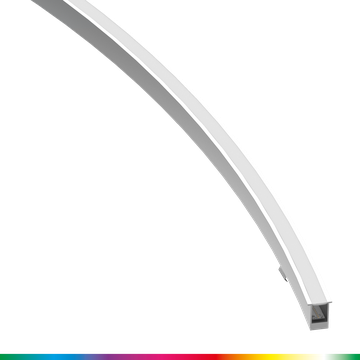

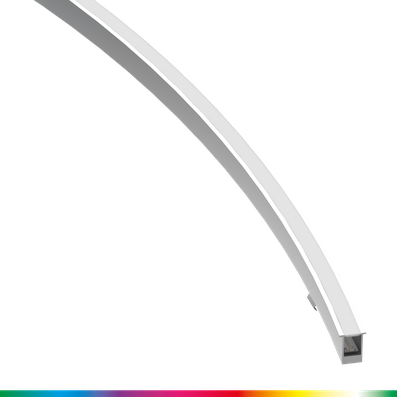

GROOVE 21 R 2000

GROOVE 21 R 2000
GROOVE 21 R 2000 - 1
Part number 077607
Lampholder: LED
Wattage: 36 W
Finishing: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP67
CRI: 90
Kelvin: RGBW 4000
Optic: Symmetric Extra-Wide
Luminaire lumen output [lm]: 762 lm
L: 80
B: B10
Lifetime: 108000 h
cULus:
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 40

Description

  • In-ground series. Fixtures consist of:
  • - Extruded anodised aluminium housing
  • - IP-67-rated double resin coating - transparent in the lower part to protect the LED from mechanical stresses and to guarantee maximum luminous efficiency - satin finish in the visible part, even in joints proximity, to ensure a homogeneous light distribution over the entire emitting area
  • - Dynamic Tunable White (TW) options enable smooth variations in color temperature, from 2700K to 5400K, in response to how a space is used.
  • - RGBW (4000K) color mixing for high emotional impact scenographic effects.
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - To be used with a 24 V low-voltage driver (ordered separately, consult factory for more information).
  • - Two-part fitting, consisting of LED luminaire and stainless steel recess box with anti-deformation cover (included). Tool-free installation of the luminaire in the recess box
  • - Stainless steel recessed rough-in kit to be ordered separately.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

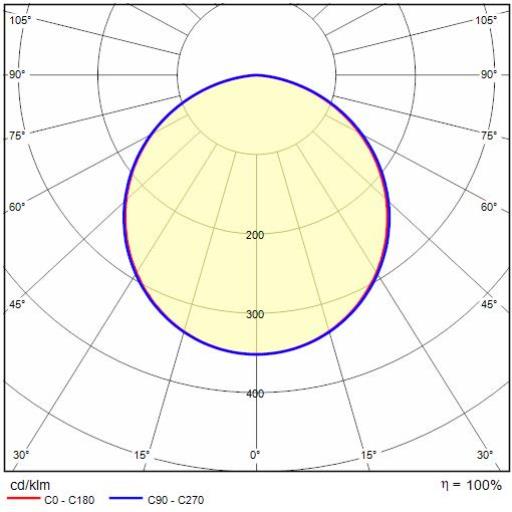

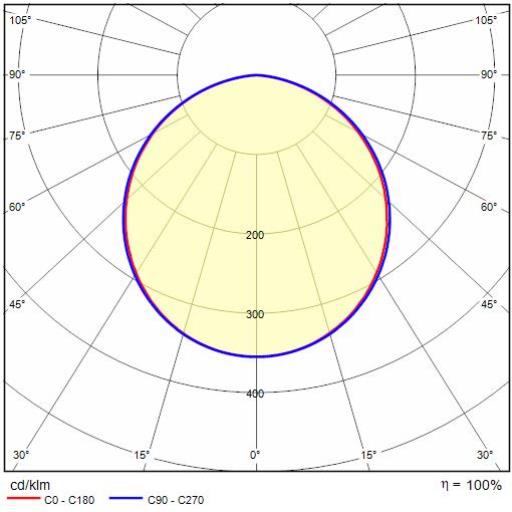

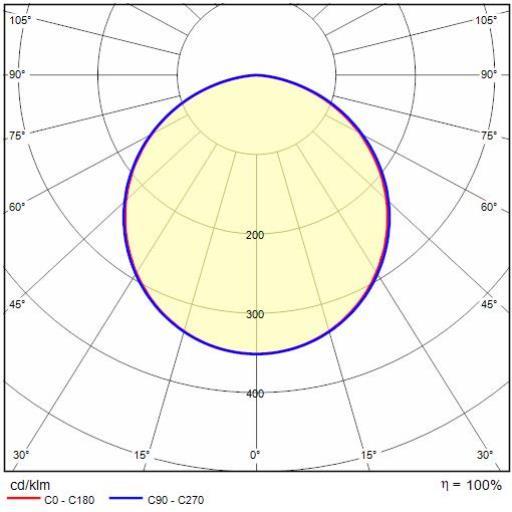

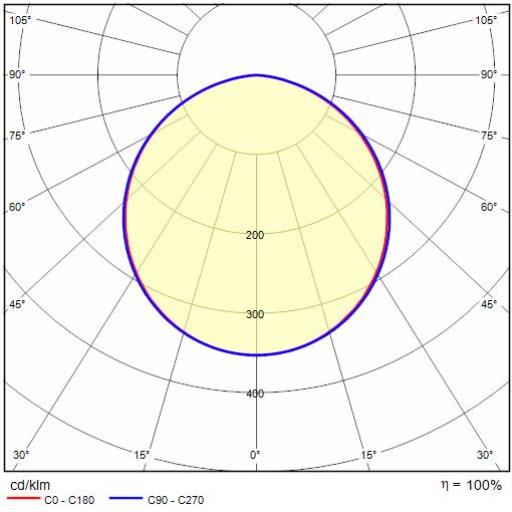

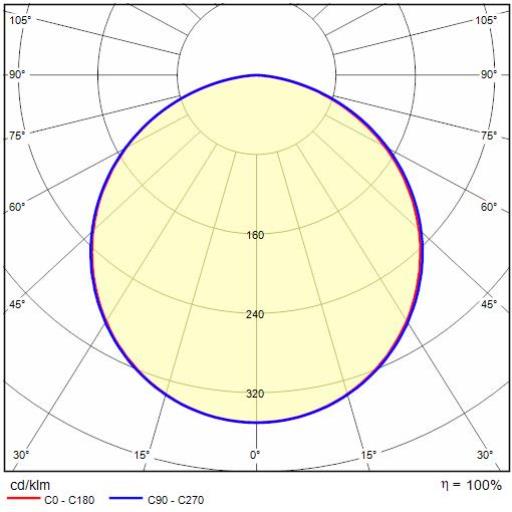

Photometric data

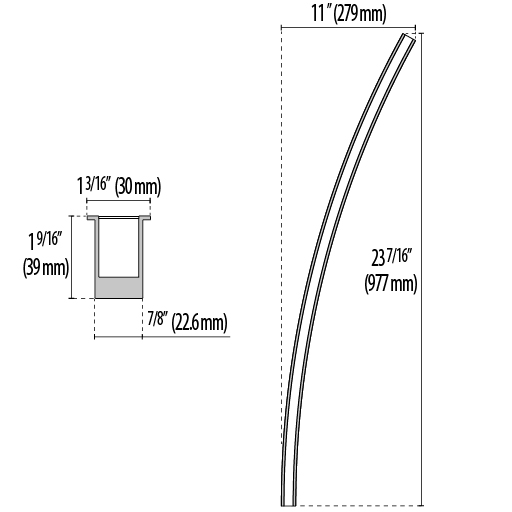

Technical drawings

Tech Design GROOVE 21 R 2000 1++

3106662

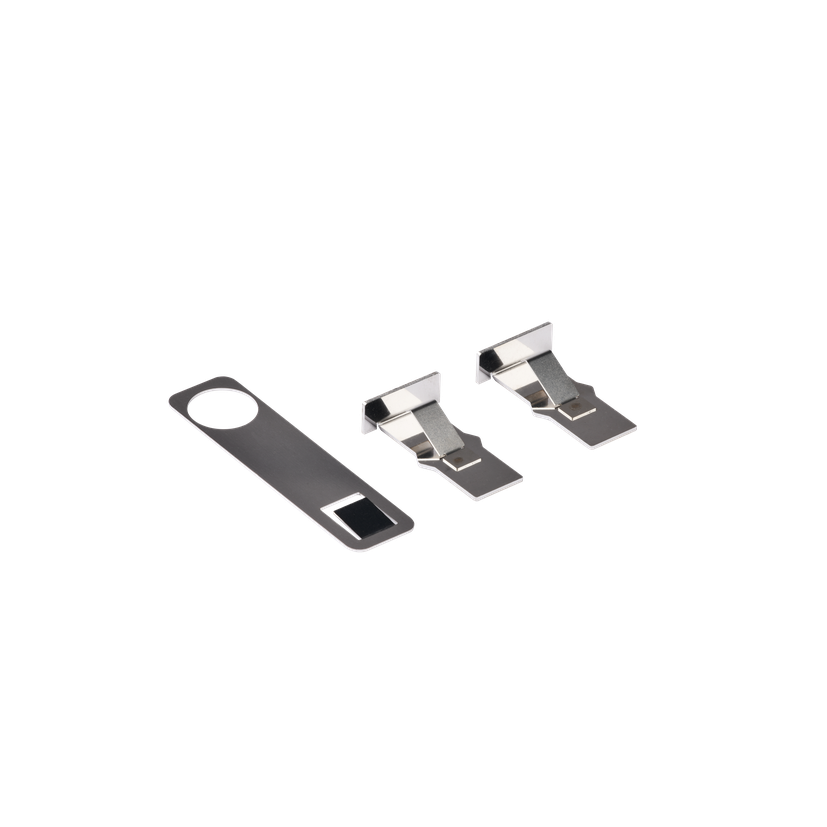

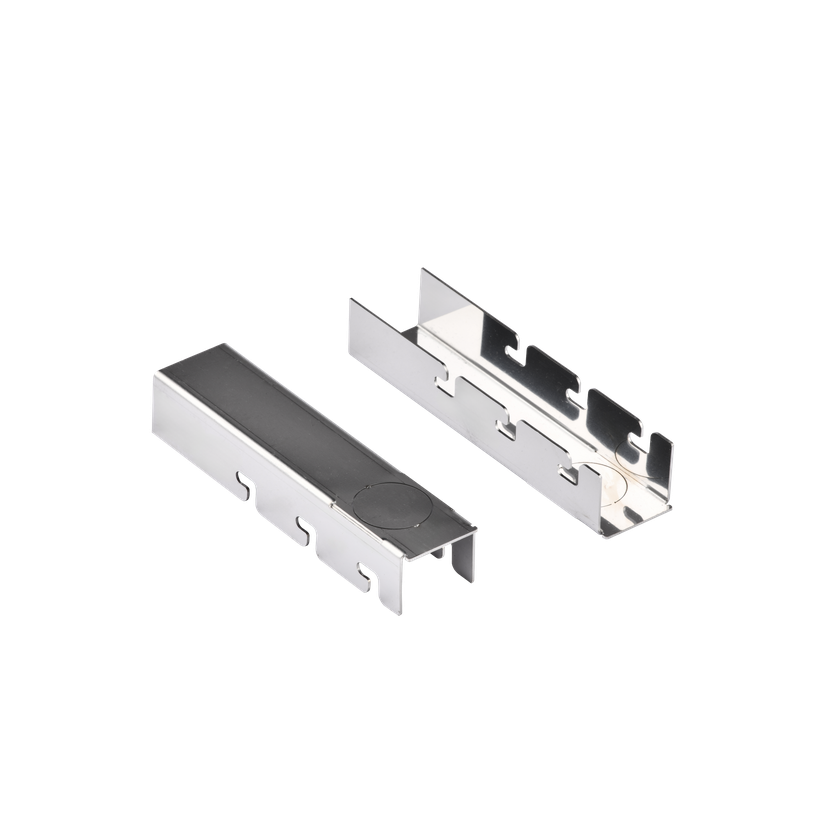

Kit closing cap for rough-in
3111705

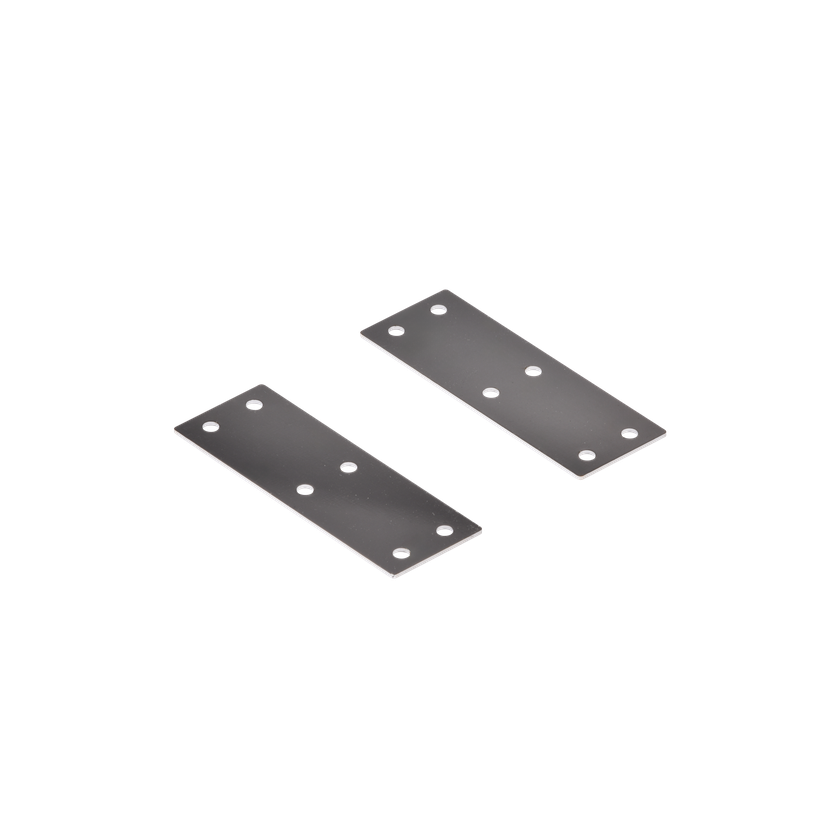

Shaped joint
3111707
Kit closing cap for fixture
3123672

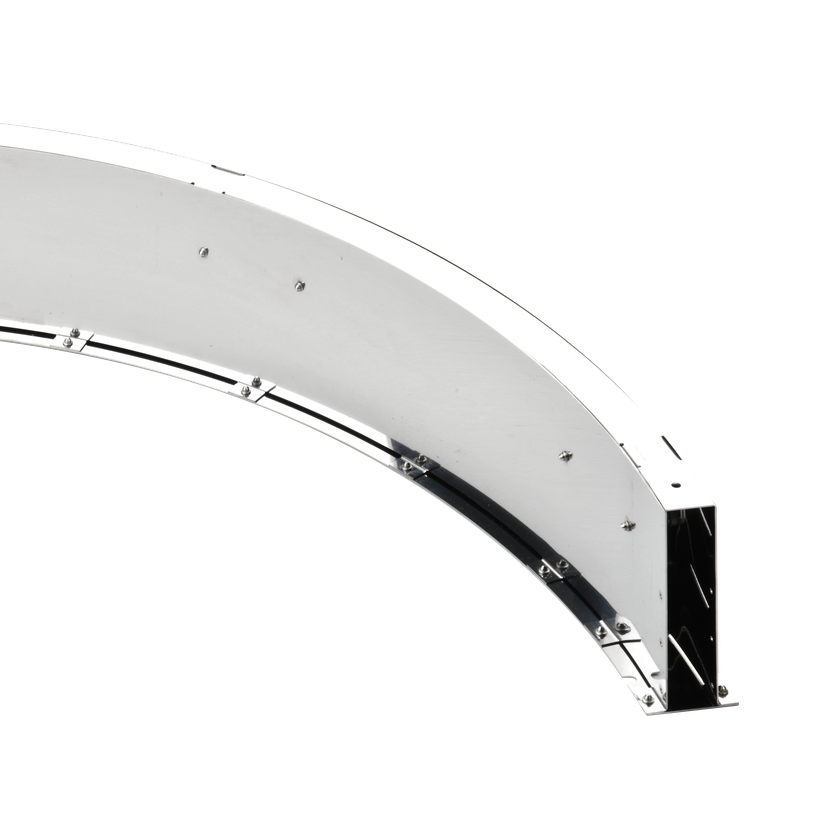

Recessed rough-in kit GROOVE 21 R2000
Stainless steel
