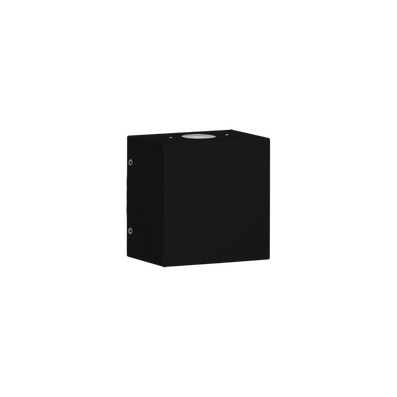

ALU 2 - 180° - 6° + 40°

ALU 2 - 180° - 6° + 40°
ALU 2 - 180° - 6° + 40°
ALU 2 - 180° - 6° + 40° - 1
ALU 2 - 180° - 6° + 40° - 2
Part number 079134
Lampholder: LED
Wattage: 4.2 W
Finishing: BK-40 / Anodized Black / Matt
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Beam angle: 2 x 6°+40°/180
Luminaire lumen output [lm]: 175 lm
Lifetime: 60000 h
cULus:
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 50

Description

  • Wall effect series. Fixtures consist of:
  • - Copper-free (<1%) precision machined anodized aluminum housing and optical compartment.
  • - Clear UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.

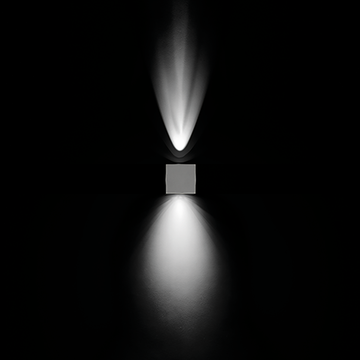

  • - Surface effects light emission.
  • - Circular Intensive optics (C/I).
  • - Circular Medium optics (C/M).
  • - Matching junction box plate optional accessory available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

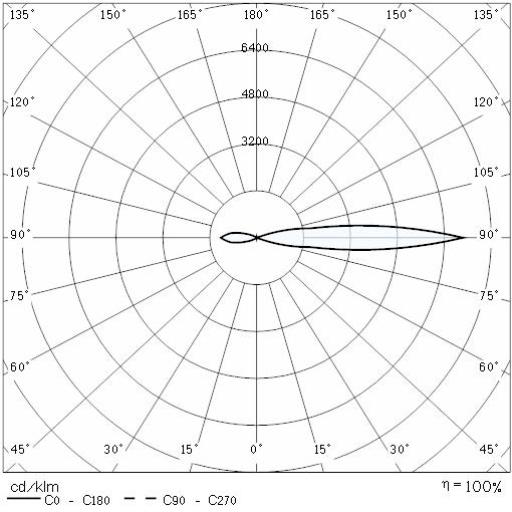

Photometric data

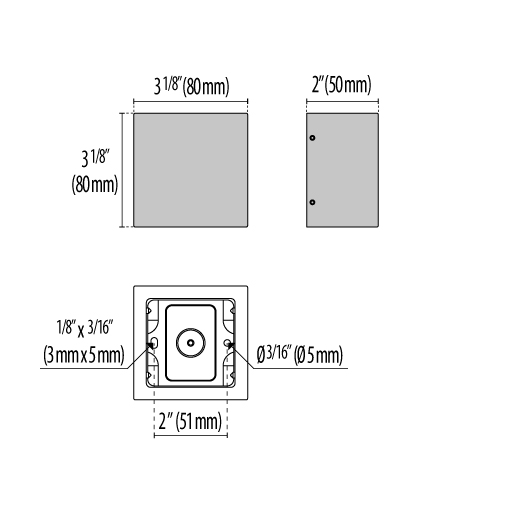

Technical drawings

Tech Design ALU 2 - 180° - 6° + 40° 1++

OPTIONAL ACCESSORIES

ALU SQUARE 2

07952
Plate Cover Jbox Alu - Black
Anodised black
17082
LED driver CC 6 W 700mA 120/277V
DownloadDownloads

Documentation: DIV0000003 - 17082
