ALU 4 - 120-277

ALU 4 - 120-277
ALU 4 - 120-277
ALU 4 - 120-277 - 1
ALU 4 - 120-277 - 2
Part number 079790
Lampholder: LED
Wattage: 4.6 W
Finishing: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP65
CRI: 80
Kelvin: 6000
Luminaire lumen output [lm]: 215 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -20
Max. ambient temperature [°C]: 50

Description

  • Wall effect series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision machined anodized aluminum housing and optical compartment.
  • - Clear UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Surface effects light emission.
  • - Input voltage is 120-277 V (50/60 Hz), integral driver for "120-277" models only.
  • - Matching junction box plate optional accessory available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

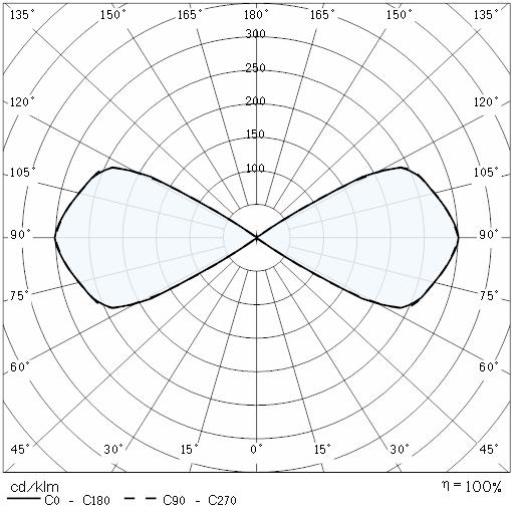

Photometric data

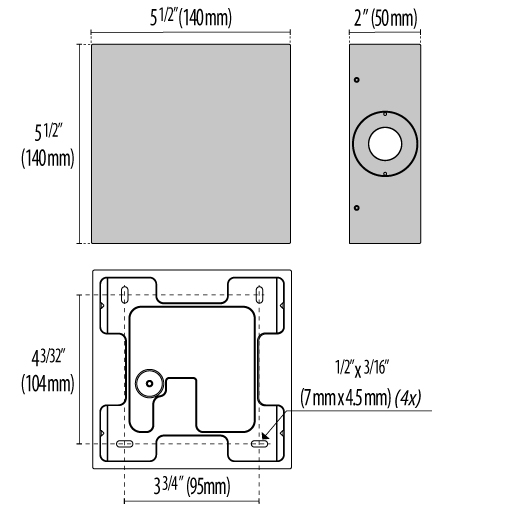

Technical drawings

Tech Design ALU 4 - 120-277 1++

OPTIONAL ACCESSORIES

ALU SQUARE 4

079552
Lens narrow beam 6° (set of 2)
DownloadDownloads

Documentation: DIV0000004 - 079552

079548
Lens medium beam 25° (set of 2)
DownloadDownloads

Documentation: DIV0000004 - 079548

079550
Lens wide beam 40° (set of 2)
DownloadDownloads

Documentation: DIV0000004 - 079550

079554
Lens elliptical beam 10°x45° (set of 2)
DownloadDownloads

Documentation: DIV0000004 - 079554
