SQUARE PRO 64/2 A/I

Part number 3119510

High-powered LED floodlight for indoor and outdoor, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- High-transparency polycarbonate optics
- Anti-ageing custom moulded silicone sealing gasket(s)
- Built-in electrical connection box with aluminium cover
- Waterproof M25x1.5 cable gland for cables Ø 10 - Ø 16 mm
- Light beam obtained by the combination of multiple LED modules
- Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
- Stainless steel locking hardware
- Galvanised powder-coated steel bracket
- Integral graduated goniometer for aiming purposes
- All SQUARE PRO power consumption includes power unit losses
- To connect the SQUARE PRO use the control gears supplied as accessories only
- ON-OFF, dimmable DALI and DMX-RDM control gears can be housed in IP66-rated boxes or on IP20-rated metal plates (for electrical panels). The electrical connection between control gear and floodlight must take place with a maximum cable length distance of 50 m
- Correctly match the floodlight with the control gear. Pay attention to the models and the number of connections: two (2CH), three (3CH) or four (4CH) channels
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM) for every driver unit/box

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

91994

Luminaire lumen output
[lm]:

77913

Luminaire
wattage [W]:

558 W

Luminous efficacy [lm/W]:

140

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-94 / Metallic grey / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK07 3J xx5

Protection class:

Optic:

A65/I - Asymmetric Intensive

Net weight [kg]:

22.5

Overall length [mm]:

560

Overall width [mm]:

985

Overall height [mm]:

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

850 °C

Frontal exposed area [m²]:

0.04

Lateral exposed area [m²]:

0.08

Top exposed area [m²]:

0.42

Installation

Application area:

Outdoor

Mounting type:

Sports / High Powered Floodlighting

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

1.00

Light features

MacAdam:

Lumen maintenance:

L90B10@150000h

Distribution of light emission:

Direct

DFF - Downward Flux Fraction [%]:

100

UFF - Upward Flux Fraction [%]:

Luminous Intensity Class:

None

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A++

IPEA* (large areas, roundabouts):

A5+

IPEA* (cycle-pedestrian):

A4+

IPEA* (green areas):

A4+

IPEA* (historic city centers):

A7+

Photometric data

Technical drawings

Control gear

Drivers box IP66 - SQUARE PRO 64/2 - A/I - A/M - C/I - ELL

Part number	Description	Downloads
14473894	Drivers box 600 W - 1.4A - 2CH - 220-240 V 50/60 Hz	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO - 14473894
14473994	Drivers box 600 W - 1.4A - 2CH - DALI - 220-240 V 50/60 Hz	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO - 14473994
3119981	DRIVER BOX 600 W 1,4 A - 2CH - DMX 220-240 V	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO - 3119981

Drivers unit IP20 - SQUARE PRO 64/2 - A/I - A/M - C/I - ELL

	Part number	Colour / Finishing	Description	Downloads
	14473401		Drivers unit 600 W - 1.4A - 2CH - 220-240 V 50/60 Hz	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO - 14473401
	3120127		DRIVER UNIT 600 W 1,4 A - 2CH - DMX 220-240 V	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO - 3120127

Optional accessories

SQUARE PRO

	Part number	Colour / Finishing	Description	Downloads
	14474201		Protective grid SQUARE PRO	Add to technical datasheetRemove from technical datasheet

SQUARE PRO (max 840 W)

	Part number	Colour / Finishing	Description	Downloads

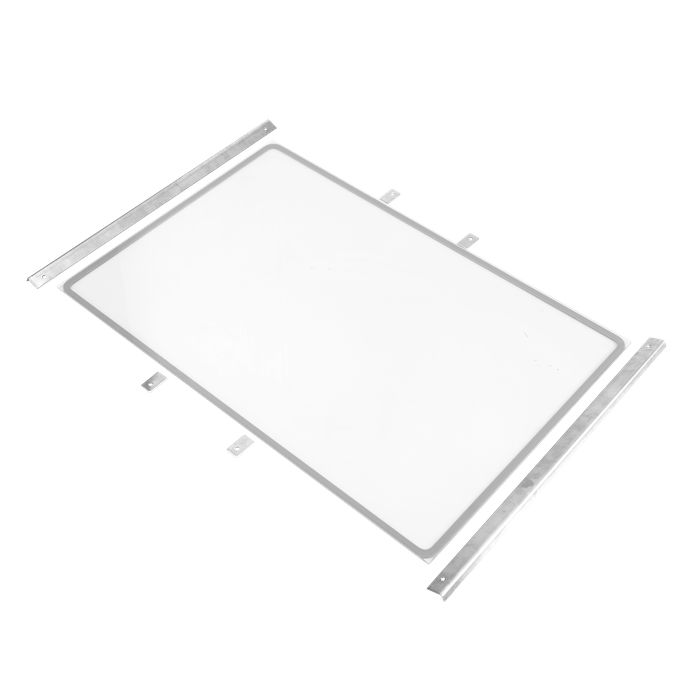

	14474494		Protective glass SQUARE PRO (max 840 W)	Add to technical datasheetRemove from technical datasheet Downloads Documentation: SQUARE PRO - 14474494
