The standard defines, using photometric requirements, the performance needed by classes for street lighting. EN1301-2-2015 considers the vision needs of road users and covers the environmental aspects of street lighting. The norm takes into consideration relevant areas for groups of lighting situations, conflict areas, calming traffic measures and pedestrian crossing. Moreover, it provides information about glare control, color rendering, night-time use and visual guidance.

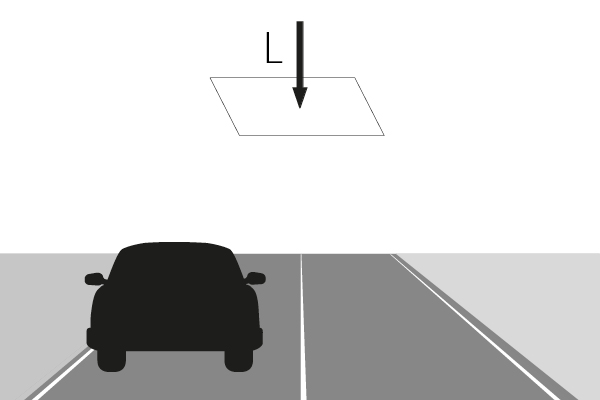

Classes for roads with motor powered vehicles other than slow-moving vehicle. The considered lighting size is the average horizontal luminance.
Class | L (cd/m2) (≥) | U0 (≥) | UI (≥) | fTi (%) (≤) | REI (≥) |
M1 | 2,00 | 0,40 | 0,70 | 10 | 0,35 |
M2 | 1,50 | 0,40 | 0,70 | 10 | 0,35 |
M3 | 1,00 | 0,40 | 0,60 | 15 | 0,30 |
M4 | 0,75 | 0,40 | 0,60 | 15 | 0,30 |
M5 | 0,50 | 0,35 | 0,40 | 15 | 0,30 |
M6 | 0,30 | 0,35 | 0,40 | 20 | 0,30 |
Classes for roads with reduced travel speed and conflict zones such as intersections, roundabouts, etc. The lighting size considered is the average horizontal illuminance.
Class | Ē (lx) (≥) | U0 (≥) | fTi (%) (≤) |
C0 | 50,0 | 0,40 | 10 |
C1 | 30,0 | 0,40 | 10 |
C2 | 20,0 | 0,40 | 15 |
C3 | 15,0 | 0,40 | 15 |
C4 | 10,0 | 0,40 | 15 |
C5 | 7,50 | 0,40 | 20 |

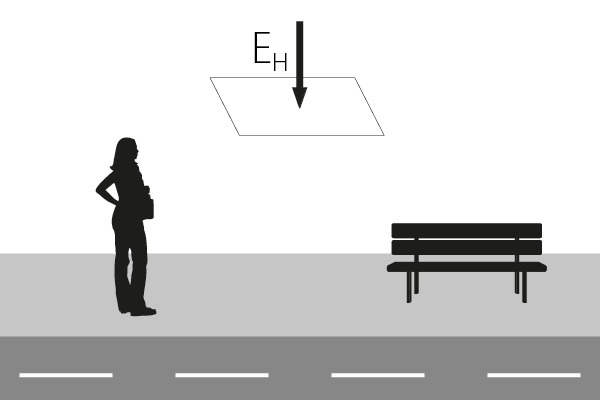

Classes for pedestrian and/or pedal cyclist areas, residential streets, emergency lanes, parking lots and sidewalks. The lighting size considered is the average horizontal illuminance.
Class | Ē (lx) (≥) | Emin (lx) (≥) | fTi (%) (≤) |
P1 | 15,0 | 3,00 | 20 |
P2 | 10,0 | 2,00 | 25 |
P3 | 7,50 | 1,50 | 25 |
P4 | 5,00 | 1,00 | 30 |
P5 | 3,00 | 0,60 | 30 |
P6 | 2,00 | 0,40 | 35 |
P7 | - | - | - |

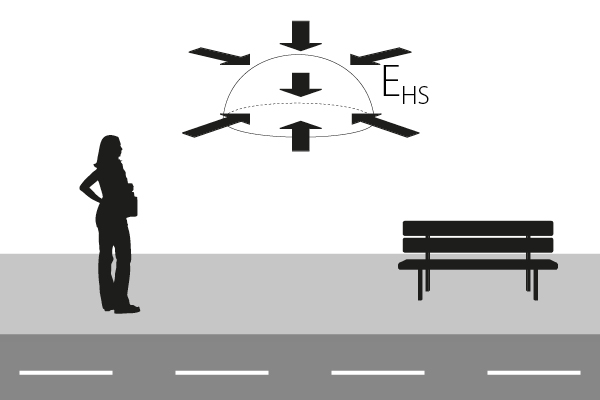

Classes for pedestrian and cycle areas, residential streets, emergency lanes, parking lots and sidewalks. The considered lighting size is the average hemispherical illuminance.
Class | Ehs (lx) (≥) | U0 (≥) |
HS1 | 5,00 | 0,15 |
HS2 | 2,50 | 0,15 |
HS3 | 1,50 | 0,15 |
HS4 | - | - |
Additional category in areas where it is necessary to pay attention to vertical elements, such as pedestrian crossings and conflict areas. The lighting size considered is the minimum punctual vertical illuminance.
Class | EV,min (lx) (≥) |
EV1 | 50,00 |
EV2 | 30,00 |
EV3 | 10,00 |
EV4 | 7,50 |
EV5 | 5,00 |
EV6 | 0,50 |
Additional classes in pedestrian areas where face recognition is required for safety reasons. The lighting size considered is the minimum punctual semi-cylindrical illuminance.
Class | Esc,min (lx) (≥) |
SC1 | 10,0 |
SC2 | 7,50 |
SC3 | 5,00 |
SC4 | 3,00 |
SC5 | 2,00 |
SC6 | 1,50 |
SC7 | 1,00 |
SC8 | 0,75 |
SC9 | 0,50 |
